Overview

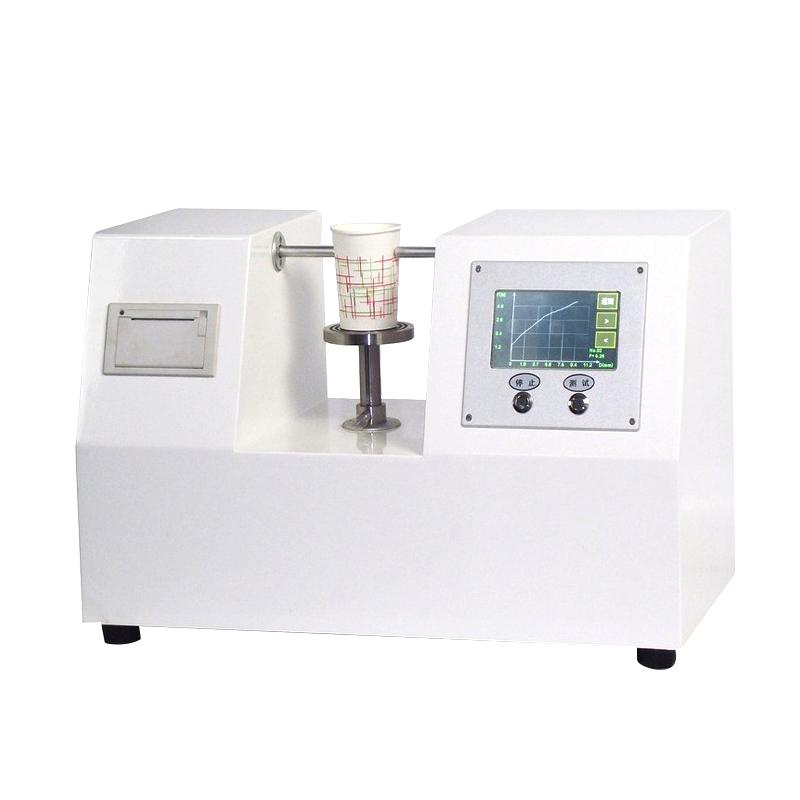

ZY-ZBT paper cup body stiffness tester is a special testing instrument for the determination of paper cup body and paper bowl stiffness. This instrument is designed according to the basic requirements of QB/T 2294-2006 "Paper Cup" standard for instruments and the general technical requirements of JJG157 "Non-metallic tensile, pressure and multi-functional testing machine". It is a paper cup physical performance testing equipment required by paper cup manufacturers and related scientific research and Quality control departments.
Features
1. High Accuracy Force Sensor and US Imported Chip Processor System for accurate measurement indication
2. In the test system, the two measurement heads move relatively through the action of the precision screw belt, the experimental speed is accurate and constant, and the test result Repeatability is good
3. LCD Chinese display, friendly man-machine interface operation, fully automatic test completion, with test data statistical processing function, micro printer output
4. The instrument is specially equipped with a calibrating probe pad, which is convenient for users or Measurement and calibrating departments to calibrate the force value with standard weight
Principle
The instrument adopts single-chip microcomputer control technology, is equipped with aluminum alloy panel, the standard button is sensitive and durable, and the stiffness of the paper cup body and the paper bowl is measured by the relative movement of the two measurement heads.
Applications
Paper cup manufacturer, scientific research department, Quality control department
Standards
QB/T 2294、JJG157、GB/T 27590-2011
Steps
1. Connect power to AC 220V, 50Hz
2. Place the paper cup or bowl in the test position
3. Set test parameters through the LCD Chinese interface
4. Start the test, and the instrument completes the test process automatically
5. Test data is output through a high-speed thermal printer
6. The probe is automatically reset and ready for the next test
Notice
• Power supply voltage is AC 220V, 50Hz before use
• Check that the probe should be less than or equal to 0.2mm before testing
• Ensure that the opening distance between the two probes is within the range of 40~ 120mm
• Regularly calibrate force values using standard weights
• Instrument mass 32kg, please pay attention to safety when handling
