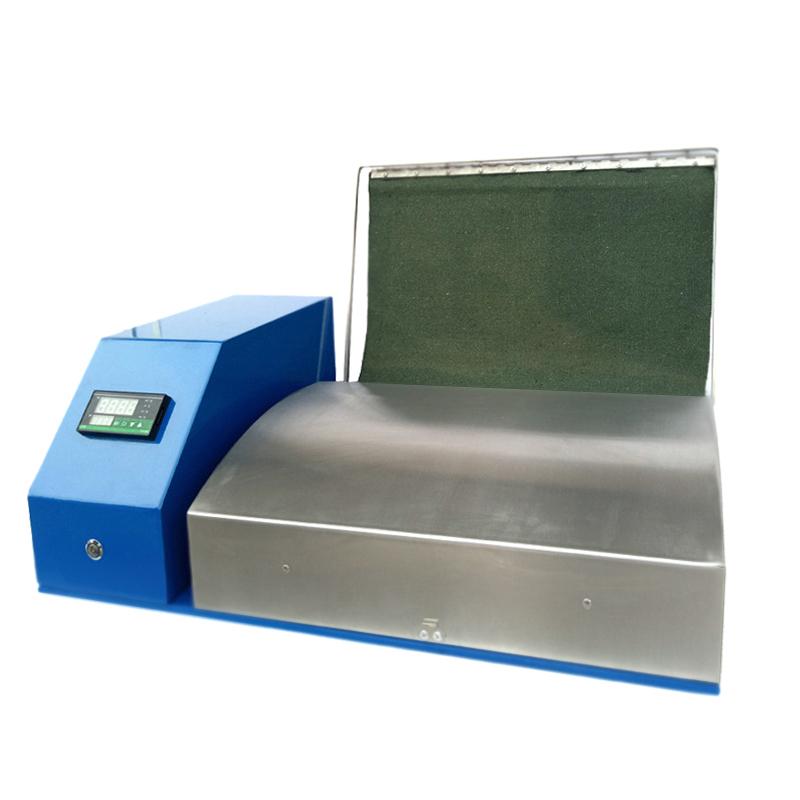

China ZY-GZQ pattern rapid drying machine, pulp and paper laboratory special equipment

Name: China ZY-GZQ pattern rapid drying machine, pulp and paper laboratory special equipment
Brand: zy
SKU: NB034076
Price: 1331.0 USD
Availability: InStock

$ 1331.00Ex works

Using arc surface drying plate design, the maximum temperature can reach 180 ℃, Heating power 2500W, the steam is quickly discharged during the drying process, easy to operate and maintenance-free.

Model

ZY-GZQ

Get Quote

Category : Drying Tester

Brand : zy

SKU : NB034076

Service :The delivery and service By NBCLab.Com

Overview

The pattern quick drying device is a drying equipment matched with various sheet readers produced by our company, which is a special equipment for pulp and paper laboratories. The equipment has a curved surface drying plate similar to the paper drying cylinder, and is equipped with a metal mesh surface. The drying plate is pressed with a metal mesh to discharge water vapor during the drying process, and the temperature of the drying plate can be precisely controlled and automatically adjusted.

Features

1. Small size and light weight 2. It is very convenient and reliable to operate and use 3. Maintenance-free 4. Adjustable drying temperature, maximum temperature up to 180 ℃ 5. The heating plate is designed in an arc shape 6. Steam is quickly drained during drying 7. Heating power 2500W 8. Size of drying plate 400mm × 500mm

Principle

Place the wet pattern or Pulp on the drying plate, then fasten the net cover, adjust the thermostat, and press the heat button to start drying. The drying plate has a curved surface design similar to the paper drying cylinder, and is equipped with a metal mesh surface. The top of the drying plate is pressed with a metal mesh, and water vapor is discharged during the drying process. The temperature of the drying plate can be precisely controlled and automatically adjusted.

Steps

1. Place wet pattern or Pulp on drying board Step 2 Fasten the net cover Step 3 Adjust the thermostat 4. Press the heat button to start drying 5. After the specified drying time, the paper sample is analyzed and tested

Drying temperature
Adjustable, maximum temperature up to 180 ° C
heating plate
arc
Drying period
Steam is quickly expelled
Heating power
2500W
Size of drying plate
400*500mm
Dimension
800Mm (length) * 550mm (width) * 320mm (height)

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
