Overview

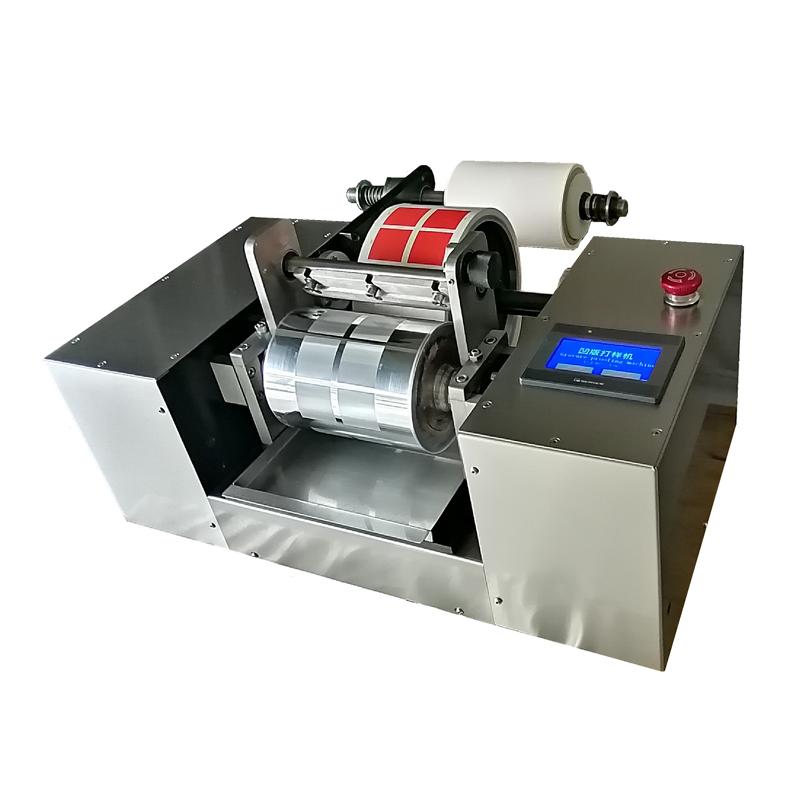

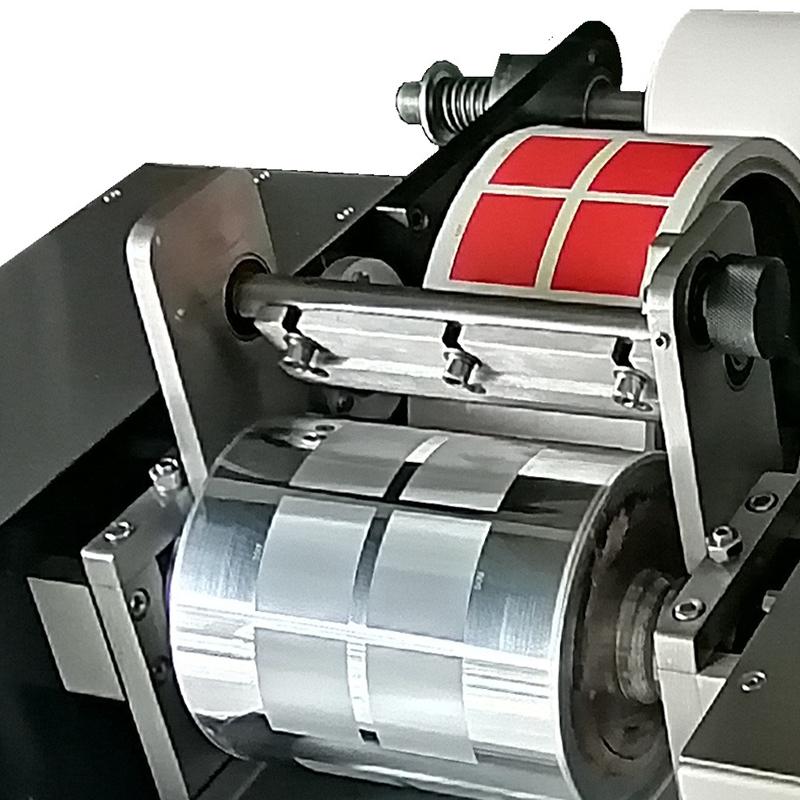

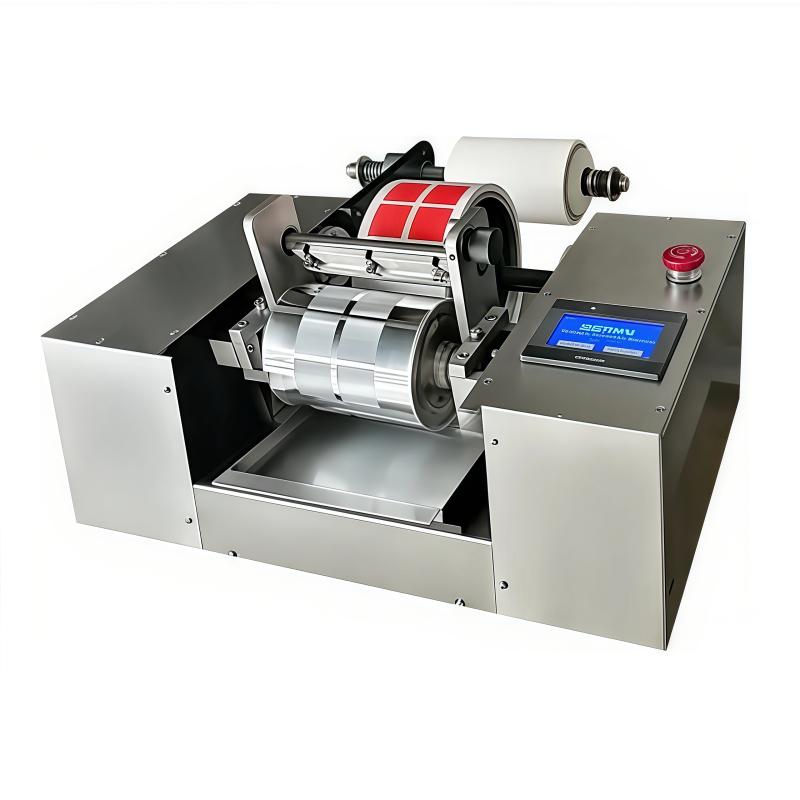

SMTSER NBC-120 single printing gravure plate Proofer (servo) adopts servo electric printing pressure system and PLC + Touchscreen control, and operates in a circular pressing mode. The equipment is suitable for the proofing of gravure printing inks (including water-based, solvent-based inks and electric conductive ink detection). It can detect inks printing effect, viscosity, leveling, and cooperate with spectrophotometer to detect inks Color.
Features
1.Servo electric printing pressure system, PLC + Touchscreen control
2. Round pressing mode operation, adjustable printing pressure
3.Automatic adjustment of printing pressure (0-4mm)
4. The printing speed can be set to 0-100 meters
5. Support low accuracy overprinting

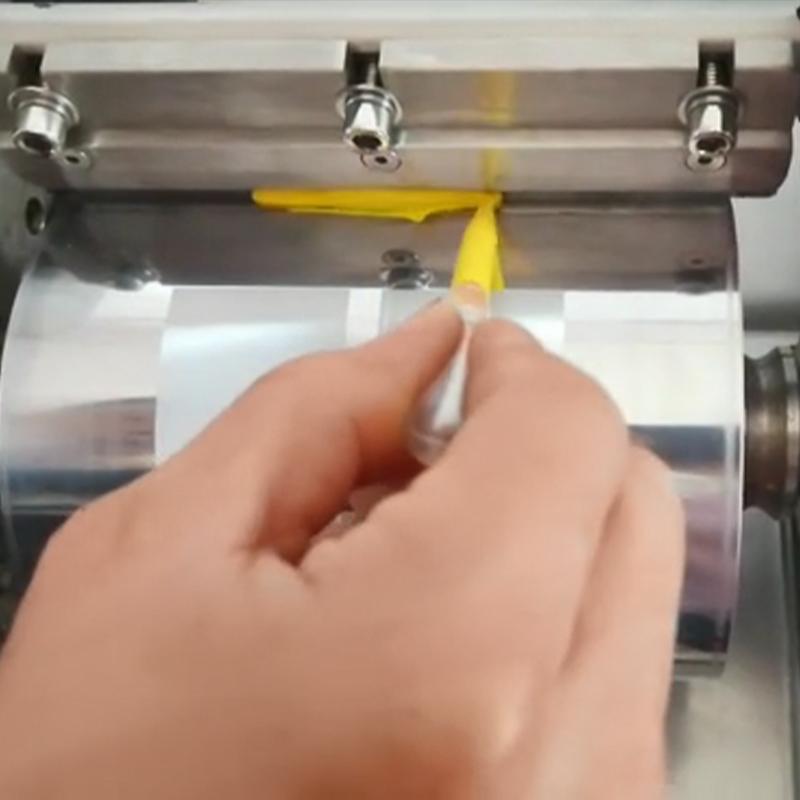

6. Manual adjustment of scraper pressure, simulating Gravure Printing printing press drawdown blade Installation method
7. Standard anilox roller: depth 25um, with Dot 3% -100%, or can be customized according to customer needs
8. Color sample size can be customized
Principle
The equipment operates in a circular pressing mode, automatically adjusts the printing pressure (0-4mm) through the servo electric system, and sets the printing speed (0-100 meters). Manual adjustment of scraper pressure simulates Gravure Printing printing press drawdown blade Installation method to realize the detection of inks printing effect.
Applications

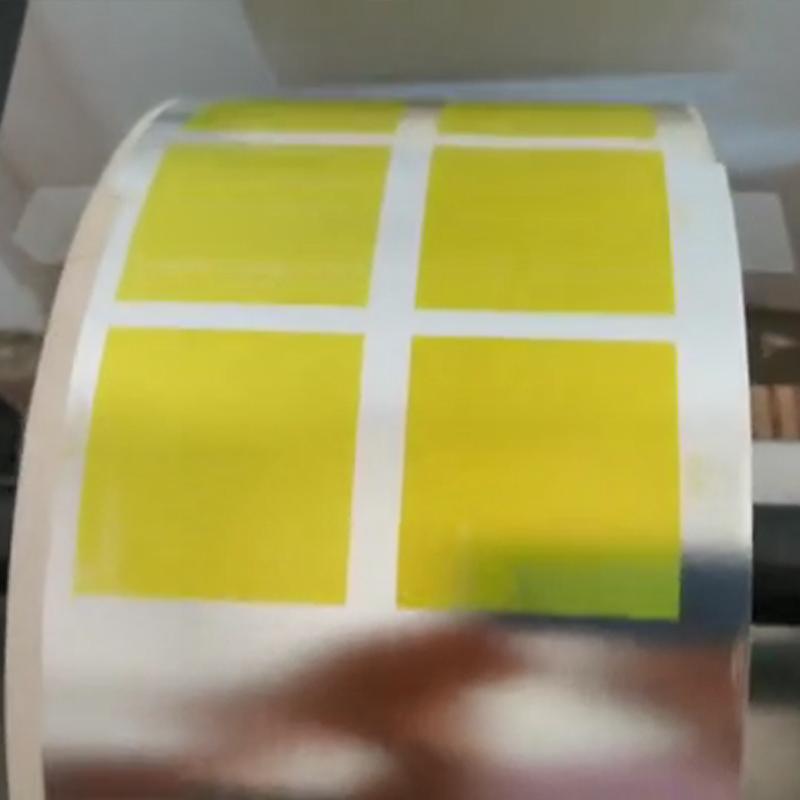

Gravure printing inks proofing, Water-based ink testing, solvent inks testing, electric conductive ink testing
Steps
1. Set the printing pressure (0-4mm)
2. Set the printing speed (0-100 meters)
3. Manually adjust the pressure of the scraper
4. Perform low-accuracy overprinting operations
5. Use Spectrophotometer to detect inks Color
