Overview

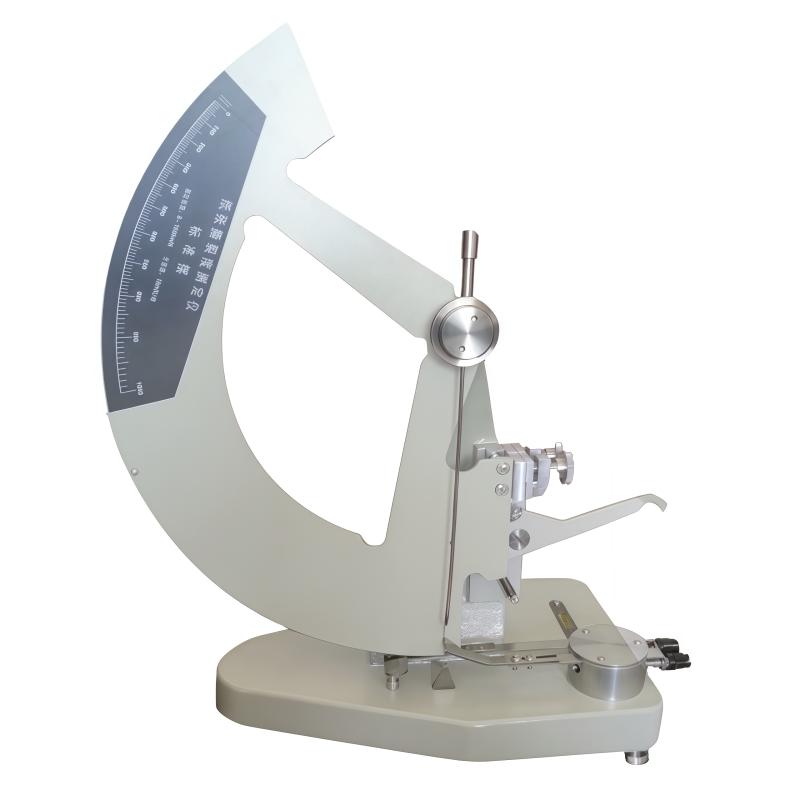

ZSE-1000 light swing paper Tear tester is a special measuring instrument for paper Tear strength produced by CCYONGXIN. Its main technical indicators and performance parameters comply with ISO1974 and GB455.1 standards, and are suitable for papermaking, scientific research and product mass supervision and inspection.
Features
1. Design based on the principle of Ailimendorf tearing instrument
2. Measurement range 10~ 500mN, resolution 5mN
3. Indication Error +/- 1% in the range of 20% to 80% of the upper limit of measurement
4. Tear arm 104 +/- 1mm, tearing initial angle 7.5 +/- 0.5 °
5. The size of the paper clip is 25 * 15mm, and the distance between the paper clips is 2.8 +/- 0.3mm.
Principle
The instrument is designed according to the principle of the Alimendorf tearing instrument. After the pendulum with a certain potential energy in the tearing position is released, the potential energy is converted into kinetic energy and the sample is torn to do work. The force required to tear the sample is indicated on the dial by the pointer. This force is the tearing value of the sample, in mN.
Applications
Papermaking, scientific research, product mass supervision and inspection
Standards
ISO1974、GB455·1
Steps
1. Place the instrument in a clean air environment at room temperature of 20 +/- 10 ° C
2. Place the instrument on a solid bench
3. Sample clamping and pre-incision according to instrument construction requirements
4. Release the pendulum for tear test
5. Read the tear value indicated by the pointer on the dial
Notice
• The instrument should be used in a clean air environment at room temperature of 20 +/- 10 ° C
The instrument must be placed on a solid workbench
• Ensure that the paper clip mechanism firmly holds the sample before use
• Be careful to keep the blade sharp to ensure pre-cut mass
