Overview

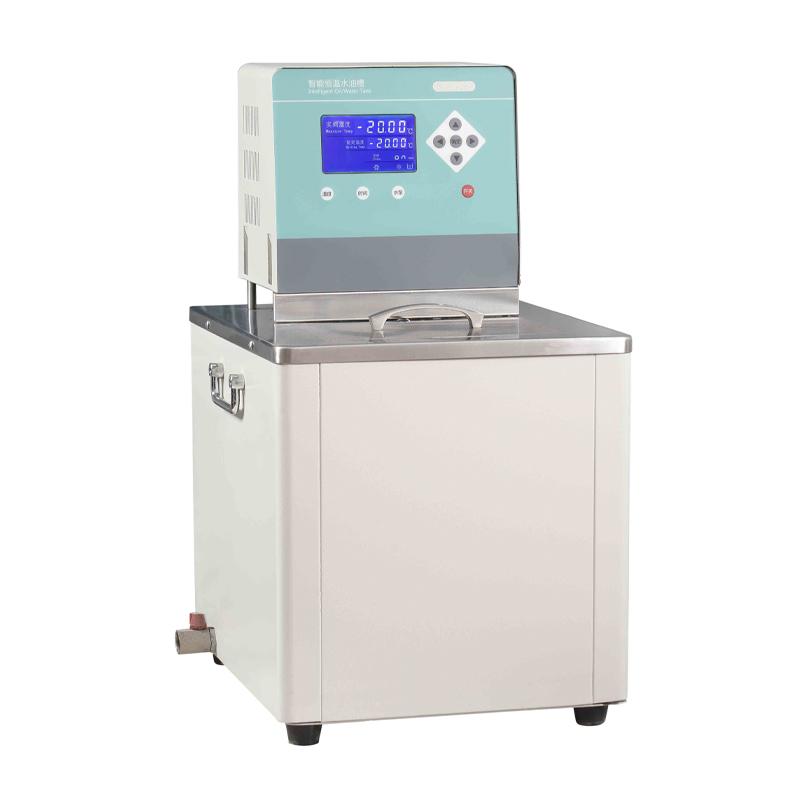

NELE NLSC-5 super thermostatic water (oil) tank is an intelligent thermostatic equipment, widely used in chemical industry, petroleum, biology, physical chemistry, Measurement control, electronic instrument processing and other fields, as a basic experimental instrument in Universities & colleges, research institutes and enterprises and institutions.
Features
1. Water and oil dual-use, Temperature range optional room temperature~ 100 ℃, room temperature~ 200 ℃, room temperature~ 300 ℃
2. The external circulation function, through the centrifugal jet circulation pump will lead the thermostatic liquid outside the tank to establish a second thermostatic field
3. Various capacity ranges, including 5L, 10L, 15L, 20L, 30L, 50L, 100L, support non-standard customization

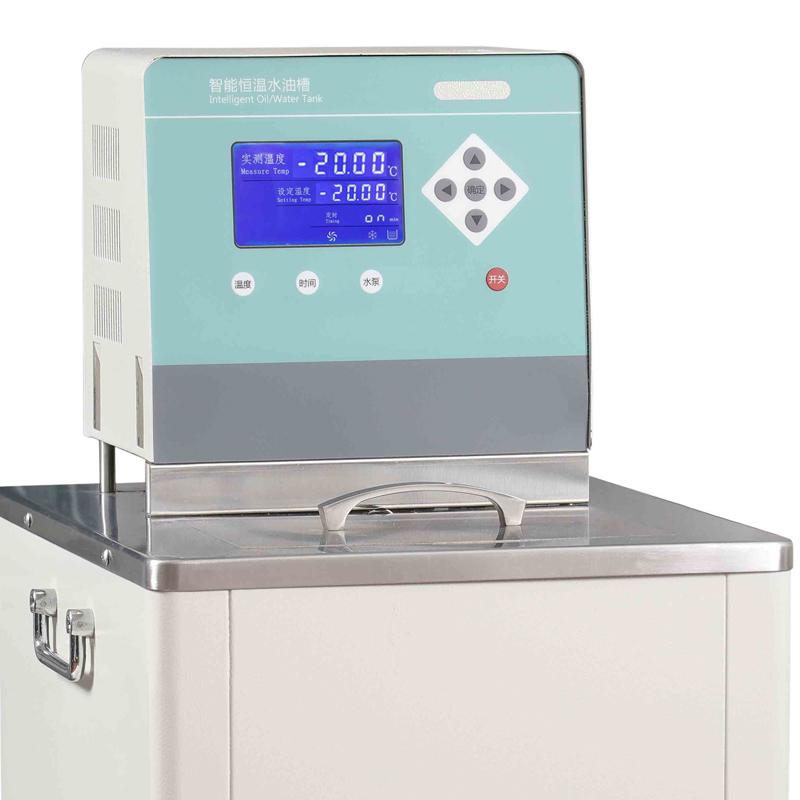

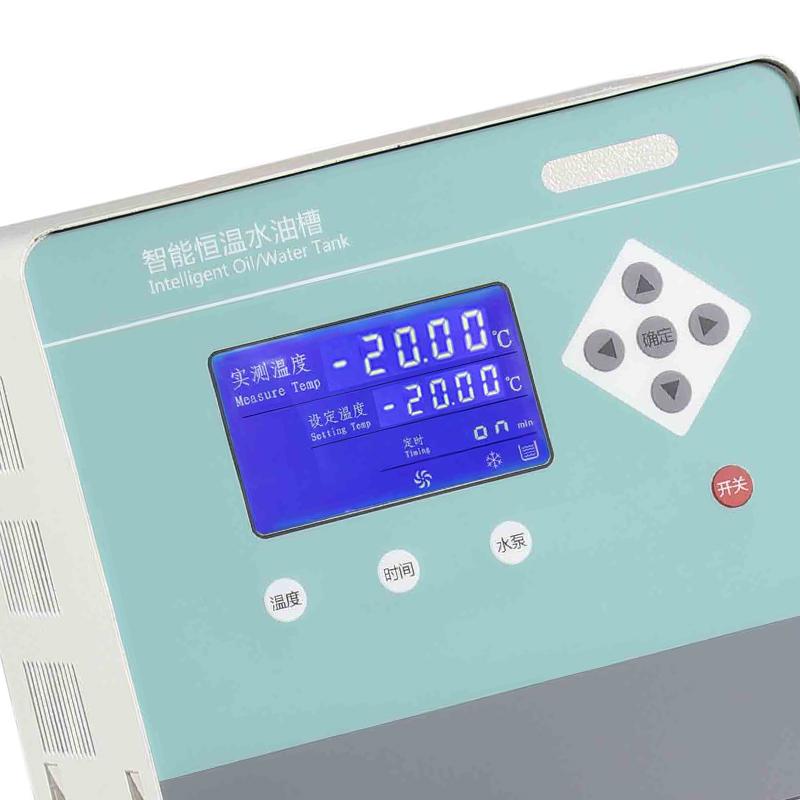

4. Integrated new generation PID automatic temperature control program, built-in High Accuracy PT100 temperature sensor AA level, large screen high-brightness LCD display, digital display resolution 0.01 ℃
5. The domestic circulation function adopts the non-heat centrifugal circulation pump and the porous U-shaped return circulation principle to achieve turbulence and high uniformity in the flow field and temperature field of the tank
6. Body shell mirror anti-aging electrostatic spray painting, liner and table with S304 brushed panel stainless steel
7. Fine workmanship of the front panel and countertop of the chassis, humanized R rounded corner design to avoid operator injuries

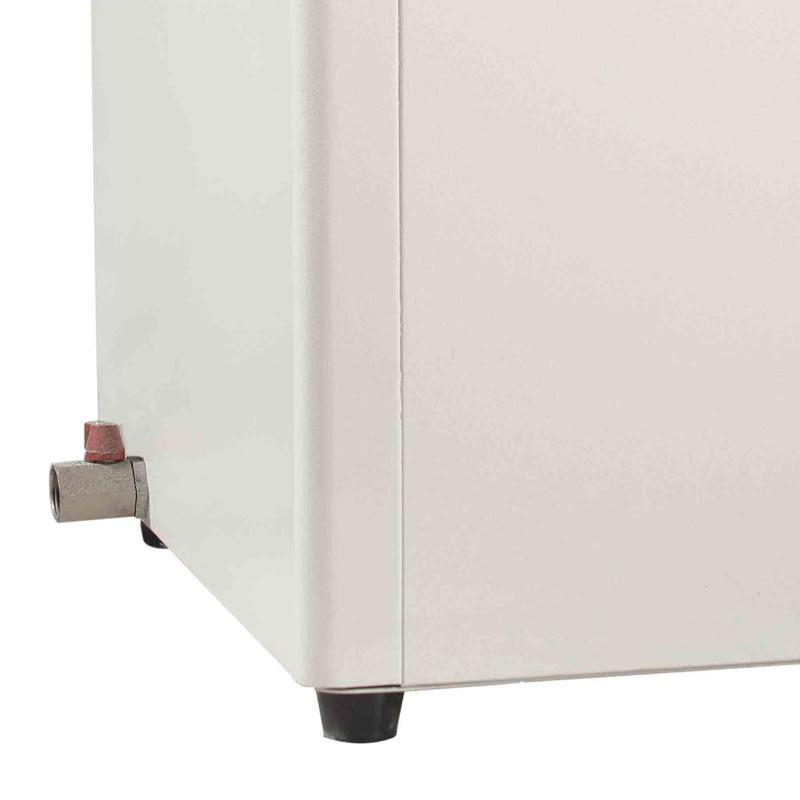

8. The drainage system meets the needs of various laboratories and enterprises for production fluid replacement
9. Safety protection device includes power-off protection, upper and lower limit temperature alarm, low water level protection and alarm, temperature loss protection and alarm, heating pipe low water level anti-dry burning and explosion-proof function
Principle
The equipment realizes accurate temperature control by integrating PID automatic temperature Control system and High Accuracy PT100 temperature sensor, the domestic circulation system adopts the principle of non-heat centrifugal circulation pump and porous U-shaped return circulation to ensure uniform temperature in the tank; the external circulation function uses the centrifugal jet circulation pump to lead the thermostatic liquid outside and control the external experimental vessel.
Applications
Chemical, Petroleum, Biology, Physical Chemistry, Measurement and Control, Electronic Instrument Processing, Universities & colleges, Research Institutes, Enterprises and Institutions
Notice
• Pay attention to the water level to avoid dry burning caused by low water level
• Safety protection function is checked regularly
• Avoid contact with sharp edges and corners during operation, and the equipment is designed with R rounded corners to reduce the risk of injury
• Select the appropriate Temperature range and cycle mode according to the experimental requirements
• Optional functions need to be configured according to actual needs, such as external Sensor, program temperature control, Communication interface, etc
