Overview

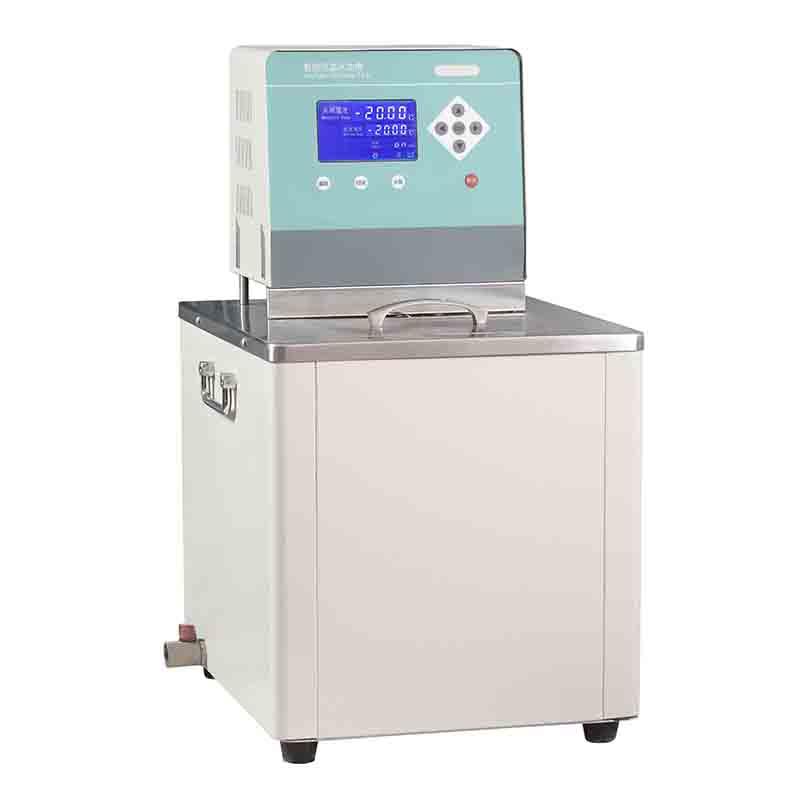

NELE NLSC-20 super thermostatic water (oil) tank is an intelligent thermostatic equipment, widely used in chemical industry, petroleum, biology, physical chemistry, Measurement control, electronic instrument processing and other fields, and as a basic experimental instrument in Universities & colleges, research institutes and enterprises and institutions.
Features
1. Water and oil dual-use, can choose room temperature to 100 ℃, room temperature to 200 ℃, room temperature to 300 ℃ Temperature range
2. external circulation function, centrifugal jet circulation pump can lead the liquid outside the tank to establish a second thermostatic field
3. Various capacity ranges, including 5L, 10L, 15L, 20L, 30L, 50L, 100L, support non-standard customization
4. Integrated PID automatic temperature control program, built-in High Accuracy PT100 temperature sensor, large screen LCD display, resolution 0.01 ℃
5. The domestic circulation system adopts a non-heat centrifugal circulation pump and a porous U-shaped return design to achieve a highly uniform temperature field
6. Shell mirror anti-aging electrostatic spray painting, liner and table with S304 stainless steel
7. Humanized R rounded corner design to avoid operation injuries
8. The drainage system is convenient for fluid change
9. Safety protection device includes power-off protection, temperature alarm, low water level protection, temperature loss protection, heating pipe anti-dry burning and explosion-proof functions
Principle
The equipment realizes accurate temperature control by integrating PID automatic temperature control program and High Accuracy PT100 Sensor, and uses centrifugal jet circulation pump for external circulation and domestic circulation. Domestic circulation adopts non-heat centrifugal pump and porous U-shaped return principle to ensure the flow field and temperature field in the tank.
Applications
Chemical, Petroleum, Biology, Physical Chemistry, Measurement and Control, Electronic Instrument Processing, Universities & colleges, Research Institutes, Enterprises and Institutions
