Overview

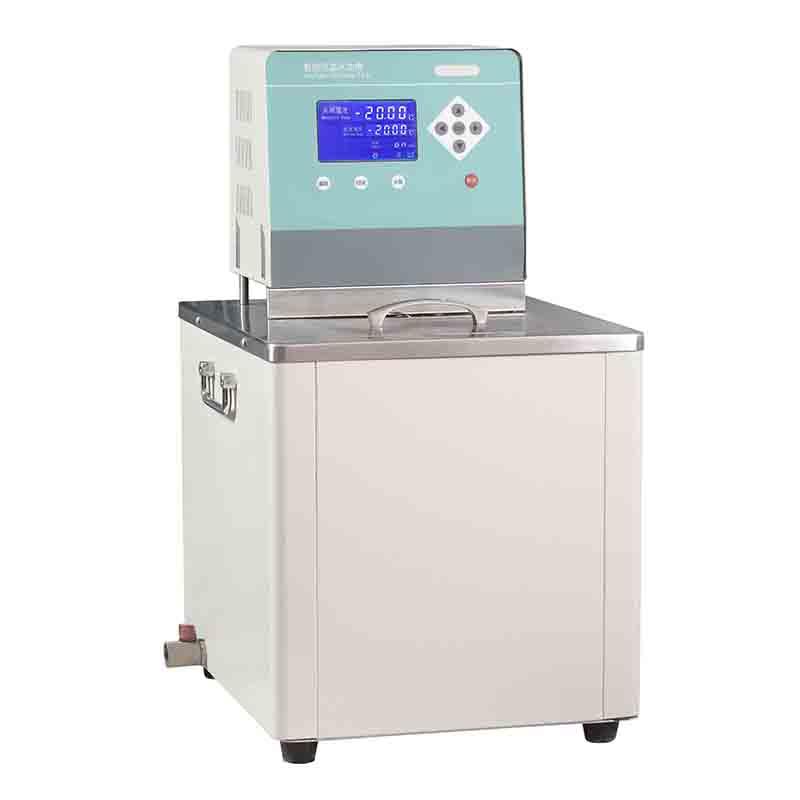

NELE NLSC-25 super thermostatic water (oil) tank is an intelligent thermostatic equipment, widely used in chemical industry, petroleum, biology, physical chemistry, Measurement control, electronic instrument processing and other fields, and as a basic experimental instrument in Universities & colleges, research institutes and enterprises and institutions.
Features
1. Water and oil dual-use, can choose room temperature to 100 ℃, 200 ℃, 300 ℃ Temperature range
2. external circulation function, centrifugal jet circulation pump can lead the thermostatic liquid outside the tank to establish a second thermostatic field
3. Various capacity ranges, including 5L to 100L, support non-standard customization
4. Integrated new generation PID automatic temperature control program, built-in High Accuracy PT100 temperature sensor AA level, large screen high-brightness LCD display, digital display resolution 0.01 ℃
5. The domestic circulation adopts non-heat centrifugal circulation pump, porous U-shaped return design to achieve highly uniform flow field and temperature field of the tank
6. Body shell mirror anti-aging electrostatic spray painting, liner and table with S304 brushed panel stainless steel
7. Humanized R rounded corner design to avoid operator injuries
8. The drainage system meets the needs of various laboratories and enterprises for production fluid replacement
9. Safety protection device includes power-off protection, upper and lower limit temperature alarm, low water level protection and alarm, temperature loss protection and alarm, heating pipe low water level anti-dry burning and explosion-proof function
Principle
The equipment realizes accurate temperature control through the integration of PID automatic temperature Control system and High Accuracy PT100 Sensor. The domestic circulation system adopts a non-heat centrifugal circulation pump and a porous U-shaped return design to ensure uniform temperature in the tank; the external circulation function uses a centrifugal jet circulation pump to lead the thermostatic liquid outside to control the external experimental vessel.
Applications
Chemical, Petroleum, Biology, Physical Chemistry, Measurement and Control, Electronic Instrument Processing, Universities & colleges, Research Institutes, Enterprises and Institutions
