Overview

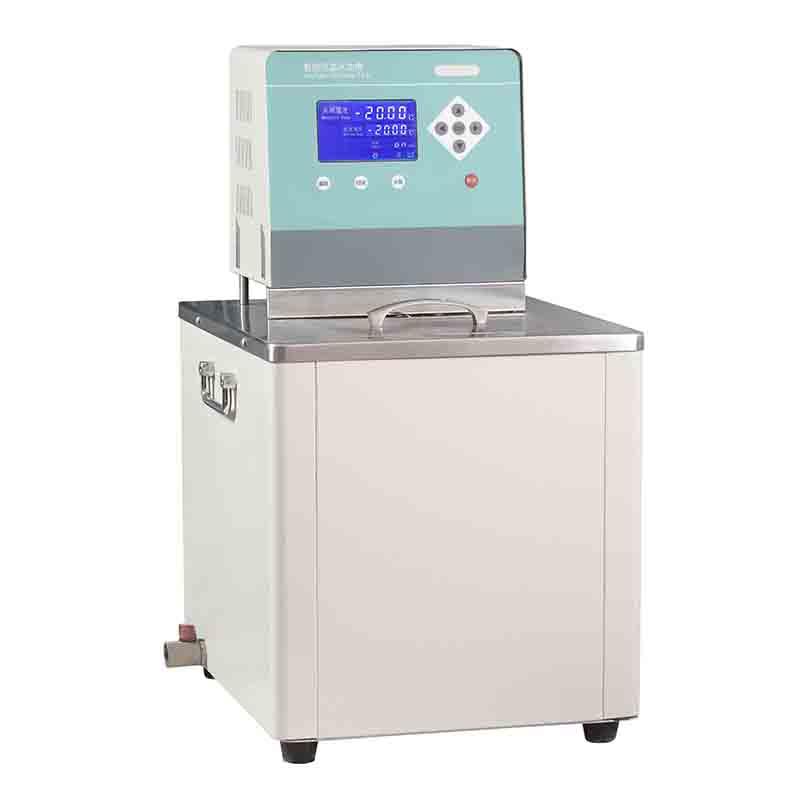

NELE NLSC-40A super thermostatic water (oil) tank is an intelligent thermostatic equipment, widely used in chemical industry, petroleum, biology, physical chemistry, Measurement control, electronic instrument processing and other fields, as a basic experimental instrument in Universities & colleges, research institutes and enterprises and institutions.
Features
1. Water and oil dual-use, can choose room temperature~ 100 ℃, room temperature~ 200 ℃, room temperature~ 300 ℃ Temperature range
2. External circulation function, centrifugal jet circulation pump can establish a second thermostatic field for liquid in the external lead tank
3. The capacity range can be selected from 5L to 100L, and non-standard customization is supported
4. Integrated PID automatic temperature control program, built-in High Accuracy PT100 temperature sensor, large screen LCD display, resolution 0.01 ℃
5. Non-heat centrifugal circulating pump domestic circulation system, porous U-shaped return design to achieve a highly uniform temperature field
6. Mirror anti-aging electrostatic spray painting shell, S304 brushed panel stainless steel liner and countertop
7. Humanized R rounded corner design to avoid operator injury
8. The drainage system is convenient for laboratory fluid change
9. Safety protection includes power-off protection, temperature alarm, low water level protection, temperature loss protection, heating pipe anti-dry burning and explosion-proof
Principle
The equipment realizes accurate temperature control by integrating PID automatic temperature Control system and High Accuracy PT100 Sensor, adopts non-heat centrifugal circulation pump for domestic circulation, and makes the flow field and temperature field in the tank reach turbulent and highly uniform state through porous U-shaped return design.
Applications
Chemical, Petroleum, Biology, Physical Chemistry, Measurement and Control, Electronic Instrument Processing, Universities & colleges, Research Institutes, Enterprises and Institutions
Steps
1. Choose water or oil as the medium according to the experimental requirements
2. Set the required temperature parameters
3. Turn on the device for thermostatic control
4. For external circulation, connect the external experimental vessel
5. Change the liquid through the drainage system after use
Notice
• Pay attention to water level monitoring and avoid low water level operation
• Safety protection function is checked regularly
• Pay attention to the edges and corners of the equipment during operation to avoid accidental injuries
• Temperature range and capacity according to experimental requirements
• Ensure that the connection pipeline is well sealed during external circulation
