Overview

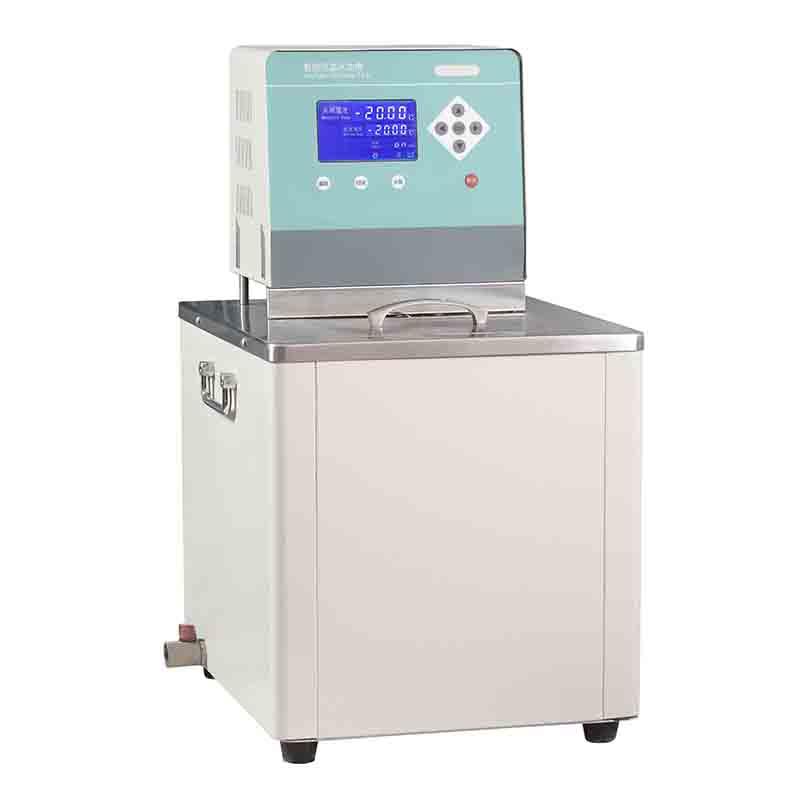

NELE NLSC-50D super thermostatic water (oil) tank is an intelligent thermostatic equipment, widely used in chemical industry, petroleum, biology, physical chemistry, Measurement control, electronic instrument processing and other fields, and as a basic experimental instrument in Universities & colleges, research institutes and enterprises and institutions.
Features
1. Water and oil dual-use, can choose room temperature~ 100 ℃, room temperature~ 200 ℃, room temperature~ 300 ℃ Temperature range
2. External circulation function, centrifugal jet circulation pump can establish a second thermostatic field for liquid in the external lead tank
3. The capacity range can be selected from 5L to 100L, and non-standard customization is supported
4. Integrated PID automatic temperature control program, built-in High Accuracy PT100 temperature sensor AA level, large screen high-brightness LCD display, digital display resolution 0.01 ℃
5. The domestic circulation adopts a non-heat centrifugal circulation pump, and the porous U-shaped return design realizes a highly uniform flow field and temperature field
6. Body shell mirror anti-aging electrostatic spray painting, liner and table with S304 brushed panel stainless steel
7. Humanized R rounded corner design to avoid operator injury
8. The drainage system meets the needs of laboratories and enterprises for production fluid replacement
9. Safety protection includes power-off protection, upper and lower limit temperature alarm, low water level protection and alarm, temperature runaway protection and alarm, heating pipe low water level anti-dry burning and explosion-proof functions
Principle
The equipment realizes accurate temperature control by integrating PID automatic temperature Control system and High Accuracy PT100 Sensor, and the domestic circulation system adopts a non-heat centrifugal circulation pump and a porous U-shaped return flow design to ensure that the flow field and temperature field in the tank are uniform and stable; the external circulation function uses the centrifugal jet circulation pump to lead the thermostatic liquid outside to establish a second thermostatic field.
Applications
Chemical, Petroleum, Biology, Physical Chemistry, Measurement and Control, Electronic Instrument Processing, Universities & colleges, Research Institutes, Enterprises and Institutions
