TQC sheen VF1571 prismatic bird type Film Applicator stainless steel 75mm application width 50μm wet film thickness

Name: TQC sheen VF1571 prismatic bird type Film Applicator stainless steel 75mm application width 50μm wet film thickness
Brand: TQC sheen
SKU: NB000344
Price: 781.0 USD
Availability: InStock

$ 781.00Ex works

Using DAIDO 440C medical grade stainless steel material, after sub-zero vacuum hardening to HRC55 Hardness, application width 75mm, wet film thickness 50μm, overall accuracy +/- 2μm, suitable for smooth flat surface Spreader operation.

Model

VF1571

Get Quote

Category : Film Applicator

Brand : TQC sheen

SKU : NB000344

Service :The delivery and service By NBCLab.Com

Overview

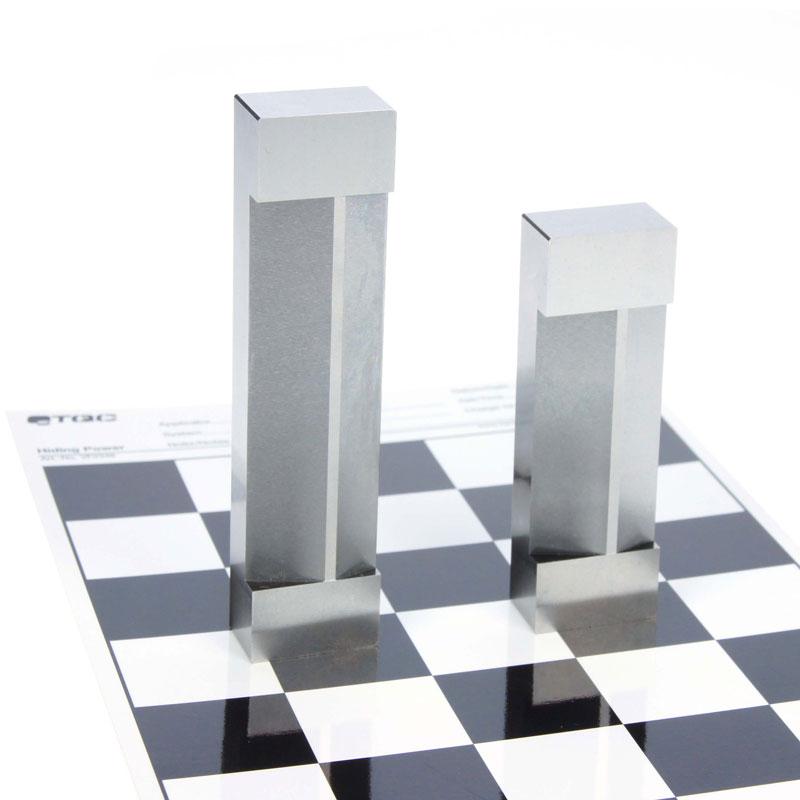

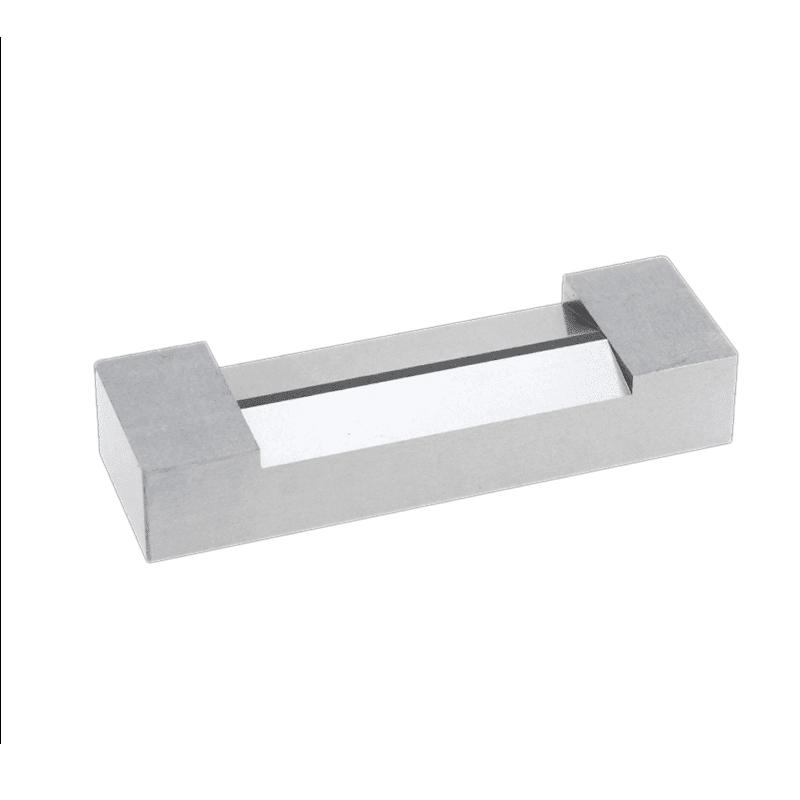

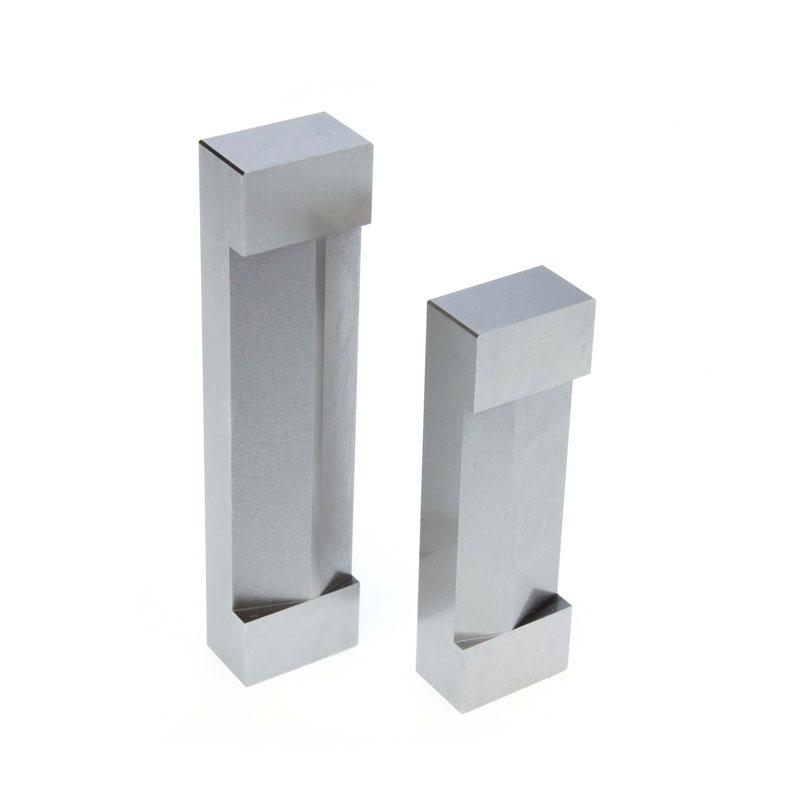

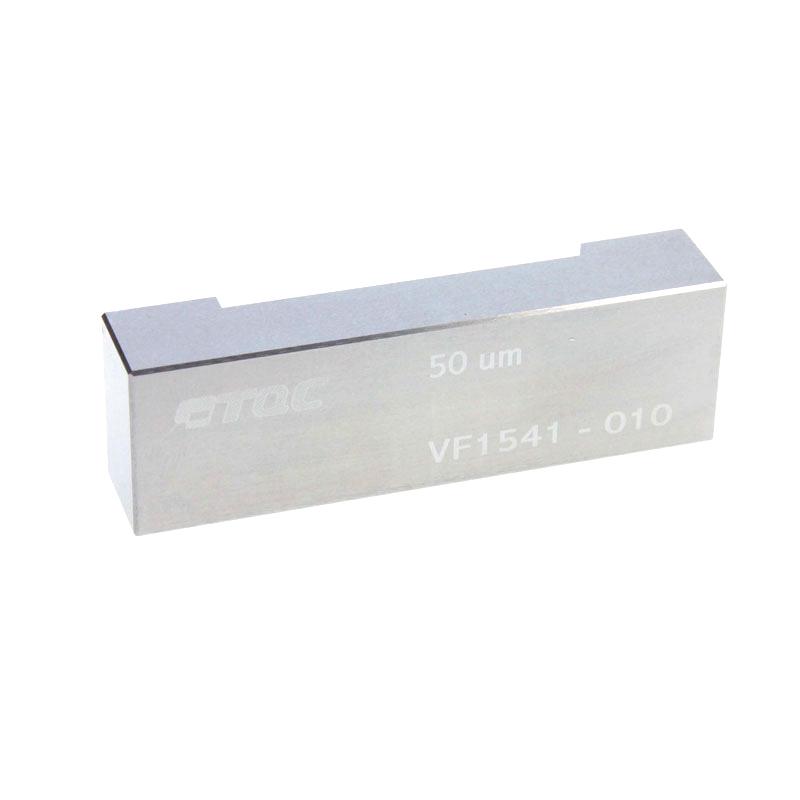

The TQC sheen VF1571 prismatic bird film applicator is a single top coated cloth tool for paper, hiding power cards, Glass plates or Miscellaneous smooth flat surfaces. The product is simple and accurate to operate, no adjustment is required, and the application width is 75mm.

Features

1. Using DAIDO 440C medical grade martensitic stainless steel tool steel, sub-zero vacuum hardening, Hardness up to HRC55 highest rockwell hardness grade 2. Overall accuracy +/- 2μm, accuracy does not exceed 3μm 3. Surface polishing treatment, size 105x25x15mm 4. wet film thickness 50μm, application width 75mm 5. No adjustment required, simple and accurate operation

Principle

The film applicator uses a prismatic bird-shaped design to perform a single top coating on smooth flat surfaces such as paper, hiding power cards, and Glass plates to form a wet-film coating of precise thickness.

Applications

Paper Spreader, hiding power card Spreader, Glass Spreader, Smooth flat surface Spreader

Type
single-sided
wet film thickness
50μm
application width
75mm
accuracy
±2μm
material
DAIDO 440C material martensitics stainless steel tool steel. Sub-zero vacuum hardening (+ 1756 ℃~ -70℃), Hardness is HRC55 (highest rocKwell hardness grade)
Size
105*25*15mm
surface preparation
polishing
