Overview

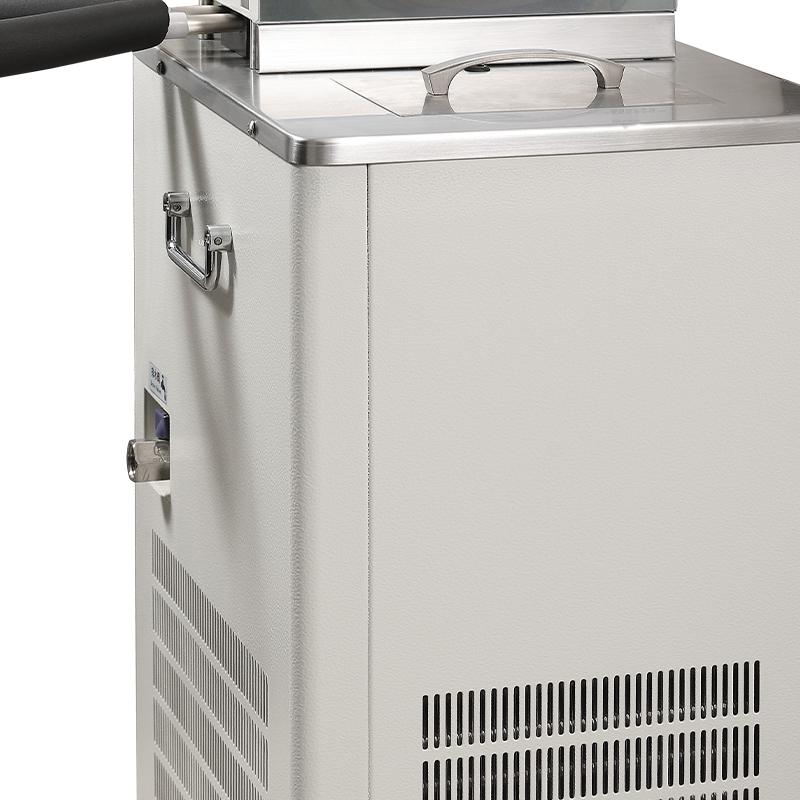

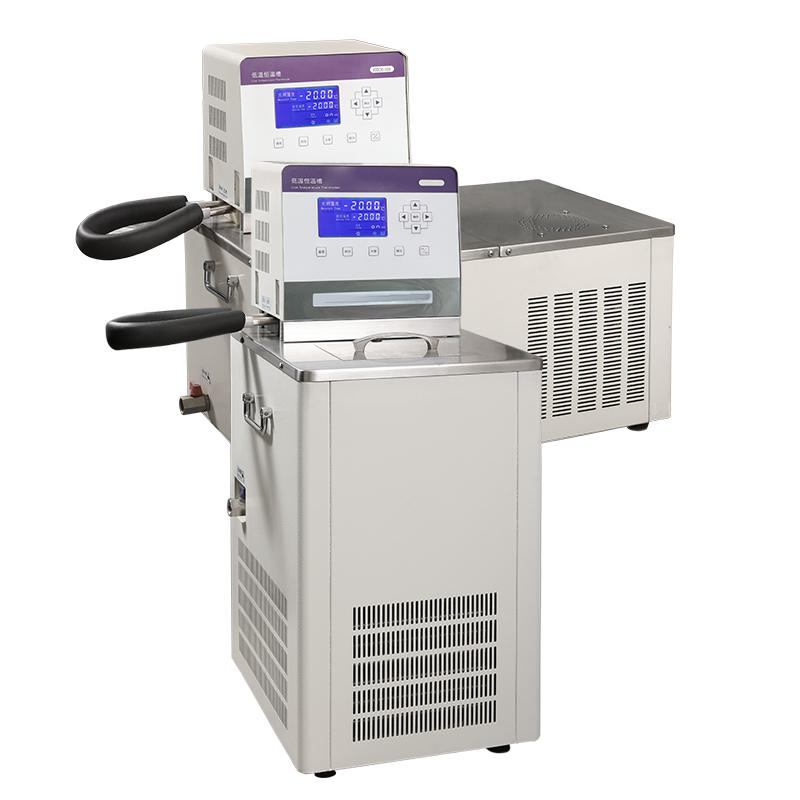

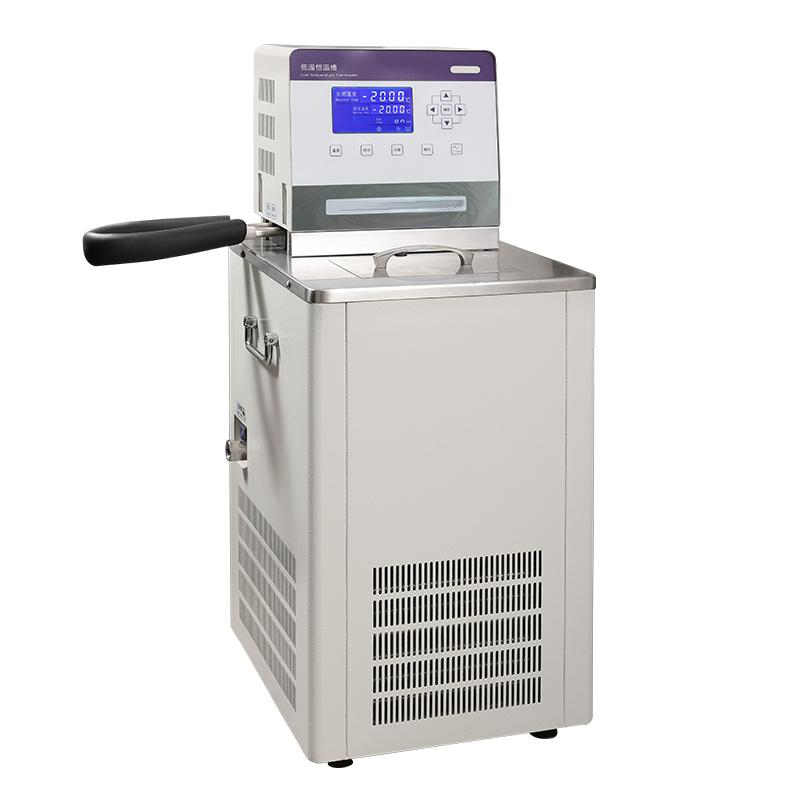

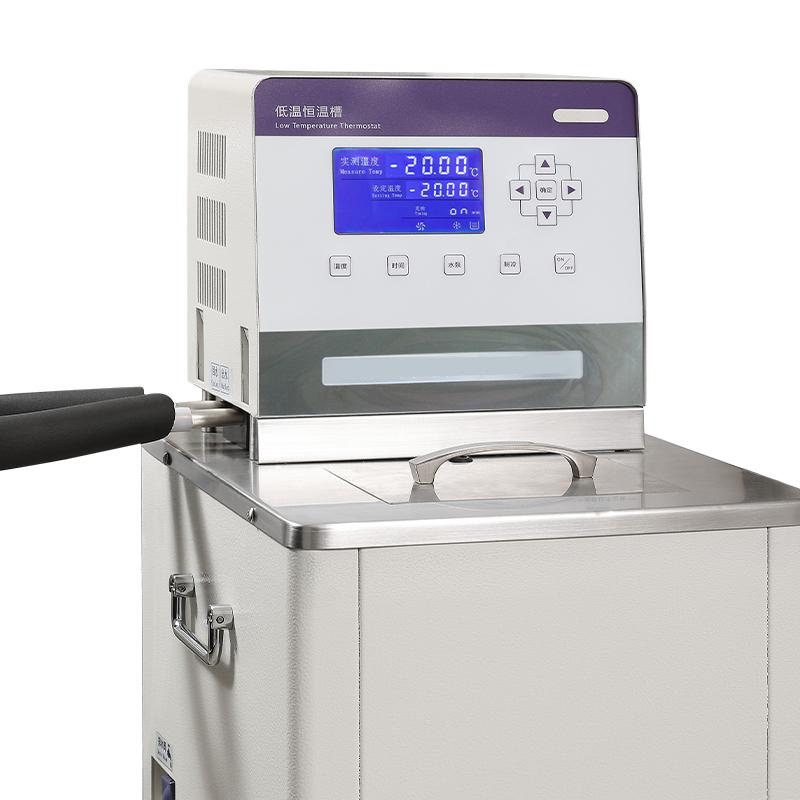

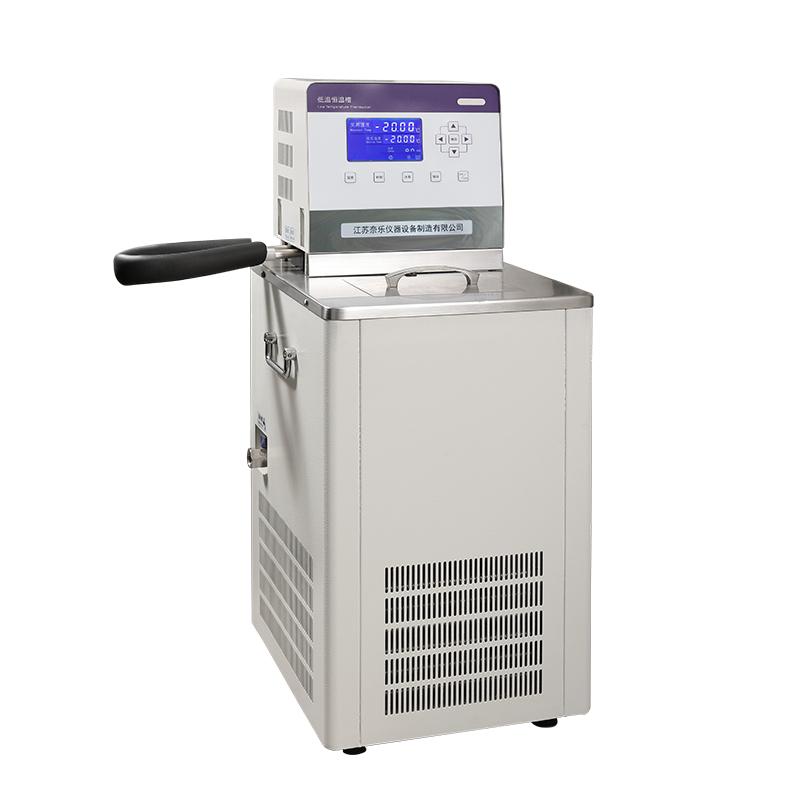

NELE DC-0506 (Vertical) Low Temperature Circulating Bath uses a fluorine-free refrigeration system, the main components are directly imported, and the performance is stable and reliable. The equipment provides users with a liquid environment with uniform and constant temperature when working, which can be used for direct heating or cooling, as an auxiliary heating or cooling temperature source.
Features
1. Fully enclosed environmentally friendly Compressor refrigeration system, no CFC
2. Temperature range -60~ 100 ° C, medium according to Temperature range, pure water, ethylene glycol, alcohol, etc
3. Built-in integrated new generation PID automatic temperature control program, equipped with High Accuracy PT100 temperature sensor and large screen high-brightness LCD screen
4. Adopt a non-heat centrifugal circulation pump to avoid the traditional water pump from affecting the temperature field of the tank due to its own heat production
5. The fuselage shell adopts anti-aging electrostatic spray technology, and the liner and countertop are made of S304 brushed stainless steel
6. Humanized R rounded corner design structure to avoid operators being injured by edges and corners
7. Equipped with multiple Safety protection devices: power-off protection, upper and lower limit temperature alarm, low water level protection and alarm, temperature runaway protection and alarm, heating device low water level anti-dry burning and explosion-proof, Compressor overheating and overcurrent protection
Principle
Low Temperature Circulating Bath achieves precise temperature control through a fully enclosed environmentally friendly Compressor refrigeration system and a PID automatic temperature control program. It adopts a non-heat centrifugal circulation pump and a domestic circulation system, and is designed based on the principle of porous U-shaped return circulation to achieve turbulence and high uniformity in the flow field and temperature field in the tank.
Applications
Petroleum, chemical, electronic instrumentation, physics, chemistry, biological engineering, life science, light industry food, physical property testing, chemical analysis and other research departments, colleges and universities, enterprise Quality control and production departments
