Overview

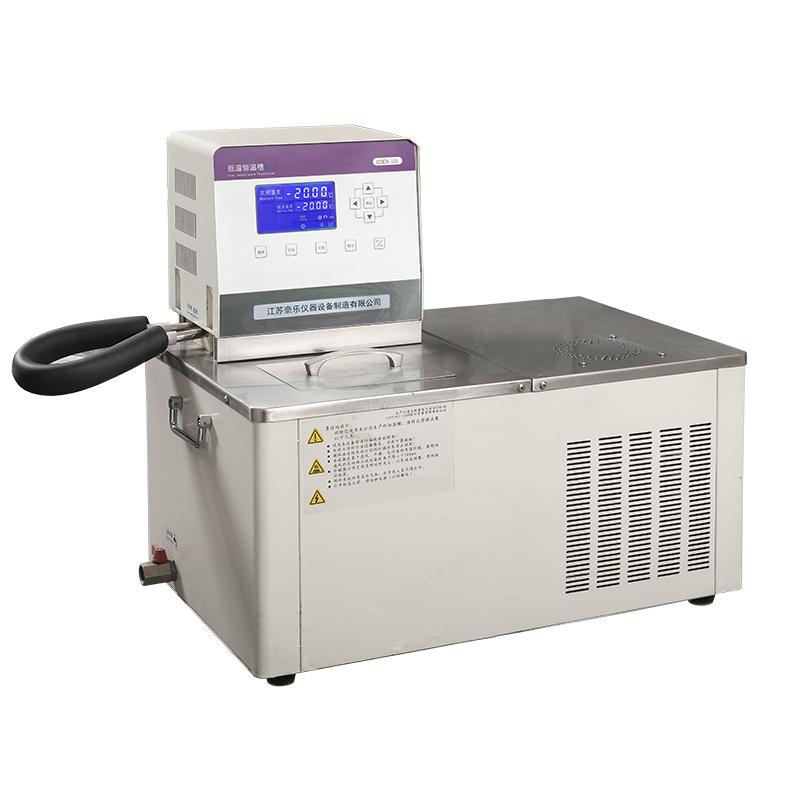

NELE DC-0506 (horizontal) Low Temperature Circulating Bath adopts fluorine-free refrigeration system, the main components are directly imported, and the performance is stable and reliable. It provides users with a liquid environment with uniform and constant temperature when working. It is widely used in research departments, colleges and universities, enterprises, quality control and production departments such as petroleum, chemical industry, electronic instrumentation, physics, chemistry, biological engineering, life science, light industrial food, physical property testing and chemical analysis. It can directly conduct constant temperature tests or tests on specimens or products, and can also be used as an auxiliary heating or cooling temperature source.
Features
1. Digital display resolution: 0.01 ℃
2. Temperature fluctuation value: +/- 0.05 ℃
3. Temperature range can be controlled: -120~ 100 ℃ (need to select the corresponding model)
4. Fully enclosed environmentally friendly Compressor refrigeration system, no CFC
5. Built-in High Accuracy PT100 temperature sensor 1/3B level, equipped with large screen highlight LCD screen, Chinese and English display
6. Capacity range optional: 6L, 10L, 15L, 20L, 30L, 50L, 100L, support non-standard customization
7. Using non-heat centrifugal circulation pump, the domestic circulation system is designed for porous U-shaped reflux circulation principle to achieve turbulence and high uniformity in the flow field and temperature field in the tank
8. The fuselage shell is anti-aging static spray, and the liner and countertop are made of S304 brushed stainless steel
9. Humanized R rounded corner design structure to avoid operators being injured by edges and corners
10. The drainage system can meet the needs of various laboratories and enterprises to produce liquid replacement
11. Safety protection device includes power-off protection, upper and lower limit temperature alarm, low water level protection and alarm, temperature runaway protection and alarm, low water level anti-dry burning and explosion-proof heating device, Compressor overheating and overcurrent multiple protection
Principle
Low Temperature Circulating Bath uses an integrated new generation PID automatic temperature control program through a fully enclosed environmentally friendly Compressor refrigeration system and a built-in High Accuracy PT100 temperature sensor to achieve accurate and stable temperature control. The domestic circulation system adopts a heat-free centrifugal circulation pump and a porous U-shaped return circulation principle to ensure turbulence and high uniformity in the flow field and temperature field in the tank, providing users with a liquid environment with cold and heat control and uniform temperature.
Applications
Petroleum, chemical, electronic instrumentation, physics, chemistry, biological engineering, life sciences, light industrial food, physical property testing, chemical analysis, research departments, colleges and universities, enterprise Quality control, production departments
