Overview

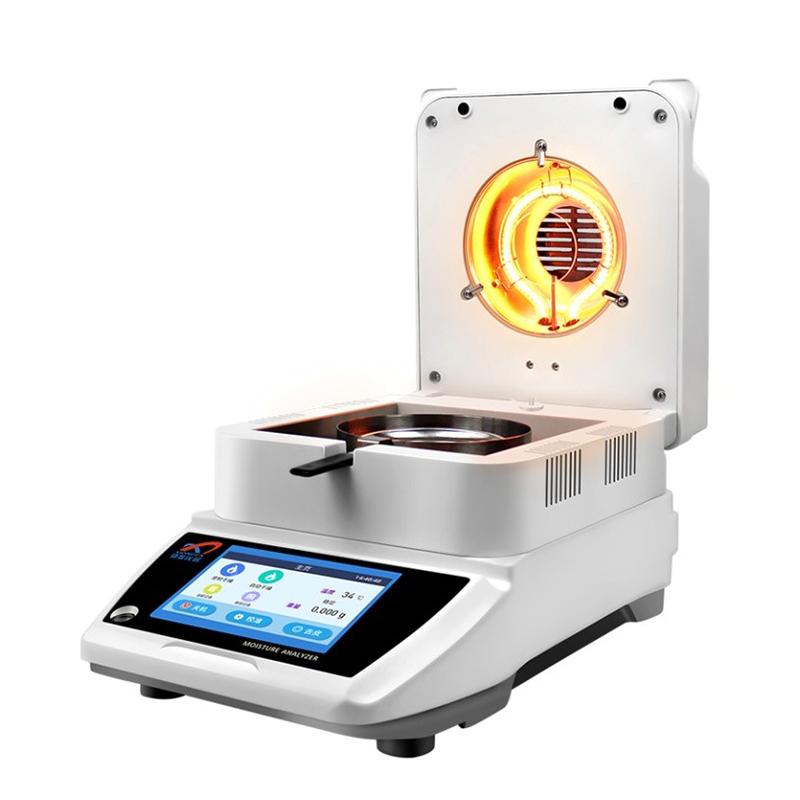

The XF-1005MB halogen fast Moisture Analyzer is a new type of rapid moisture measurement instrument designed on the principle of pyrolysis weight, which can be used to determine the Moisture content of any substance (except for substances that undergo dangerous chemical reactions by heating). The instrument measures the weight of the sample while rapidly drying the sample through the halogen heating unit and the water evaporation channel. Continuous measurement and immediate display of the Moisture content% of the sample lost during the drying process. The final measured Moisture content is locked after the drying is completed.
Features
1. Using pyrolysis weighting principle design, rapid determination of Moisture content
2. halogen heating unit and water evaporation channel for rapid drying
3. Real-time display of moisture loss percentage during drying
4.5-Inch Touchscreen display, easy to operate
5. Support automatic/manual/timing three measurement end methods
6. Standard RS232 interface for communication with computers
7. Data storage 10 test results
8. Moisture content, wet/dry ratio, weight, Wet Weight, moisture regain and other parameters can be displayed
Principle
The instrument is designed on the principle of pyrolysis weight. While measuring the weight of the sample, the halogen heating unit and the water evaporation channel rapidly dry the sample. During the drying process, the instrument continuously measures and instantly displays the percentage of Moisture content lost in the sample. After the drying is completed, the final measured Moisture content is locked.
Applications
Grain, chemical industry, tea, food, Spinning & weaving, agriculture and forestry
Standards
Voltage 220V +/- 10%, Frequency 50HZ +/- 1HZ
Steps
1. Place the sample on the pan
2. Select the measurement end method (automatic/manual/timing)
3. Start the test, the instrument automatically heats and dries
4. Observe Moisture content changes displayed in real time
5. Moisture content is automatically locked after drying
6. Press the switch button to observe the moisture value, weight initial value, starting value, test time and other data
7. Test results can be output through computer or optional printer
Notice
• It cannot be used for substances that can undergo dangerous chemical reactions by heating
• Power supply voltage meets 220V +/- 10% requirement before use
• Note Frequency requirement is 50HZ +/- 1HZ
• The sample plate material is aluminum, which can be cleaned and used repeatedly
• Capacity range is 0.005~ 100g
