Overview

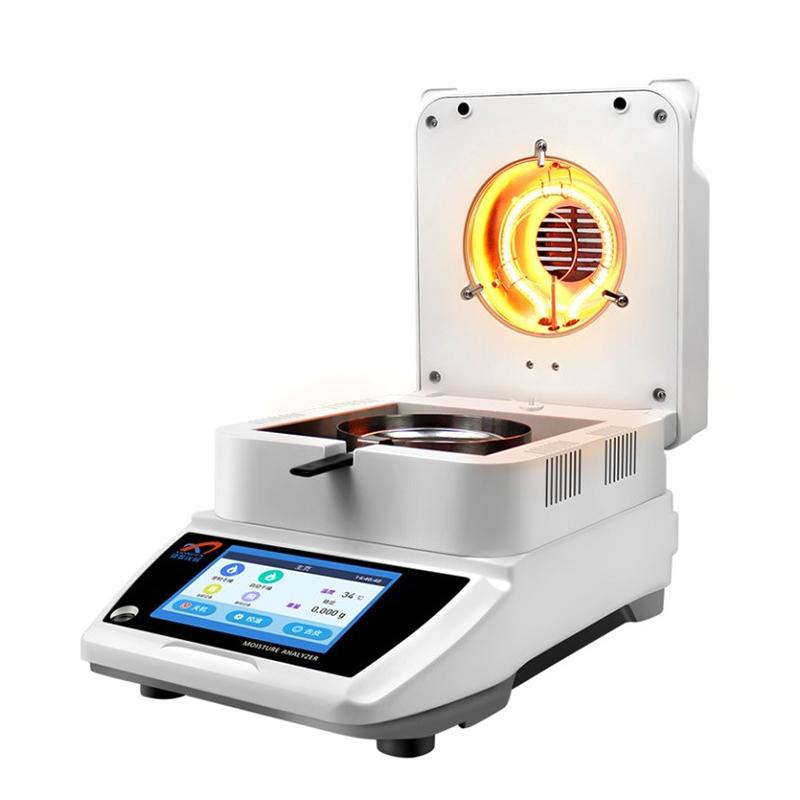

The XF-1005MA halogen fast Moisture Analyzer is a new type of rapid moisture measurement instrument designed on the principle of pyrolysis weight to determine the Moisture content of any substance (except for substances that undergo dangerous chemical reactions by heating). The instrument measures the weight of the sample while rapidly drying the sample through the halogen heating unit and the water evaporation channel. Continuous measurement and immediate display of the Moisture content% of the sample lost during the drying process. After the drying is completed, the final measurement result is locked.
Features
1. Using German HBM Weighing Sensor to Ensure Measurement accuracy
2. Temperature range RT +~ 200 ℃, fast drying sample
3.5-Inch Touchscreen display, easy to operate
4. Support automatic/manual/timing three measurement end methods
5. Data storage 20 groups for easy data management
6. Standard RS232 interface, supports computer communication and data printing
7. Comprehensive display parameters, including moisture content, dry-wet ratio, weight, Wet Weight, moisture regain, etc
Principle
The instrument is designed based on the principle of pyrolysis weight. While measuring the weight of the sample, the sample is rapidly dried through the halogen heating unit and the water evaporation channel. During the drying process, the instrument continuously measures and instantly displays the percentage of Moisture content lost in the sample. After the drying is completed, the final measured Moisture content is locked.
Applications
Grain, chemical industry, tea, food, Spinning & weaving, agriculture and forestry and all other industries that need rapid measurement of moisture
Standards
Voltage 220V +/- 10%, Frequency 50HZ +/- 1HZ
Steps
1. Place the sample on the sample tray
2. Select the measurement method (automatic/manual/timed)
3. Start the test, the instrument automatically heats and dries
4. Observe real-time Moisture content changes on the display
5. Moisture content is automatically locked after drying
6. Press the switch button to view the moisture value, weight initial value, starting value, test time and other data
7. Test results can be output through computer or optional printer
Notice
• Prohibit the use of substances that can undergo dangerous chemical reactions by heating
• Power supply voltage meets 220V +/- 10% requirement before use
• The sample tray is made of aluminum material and can be cleaned and used repeatedly
Do not touch the heating unit during testing
• Regularly clean the sample tray to ensure Measurement accuracy
When storing data, be aware of the data group limit
