Overview

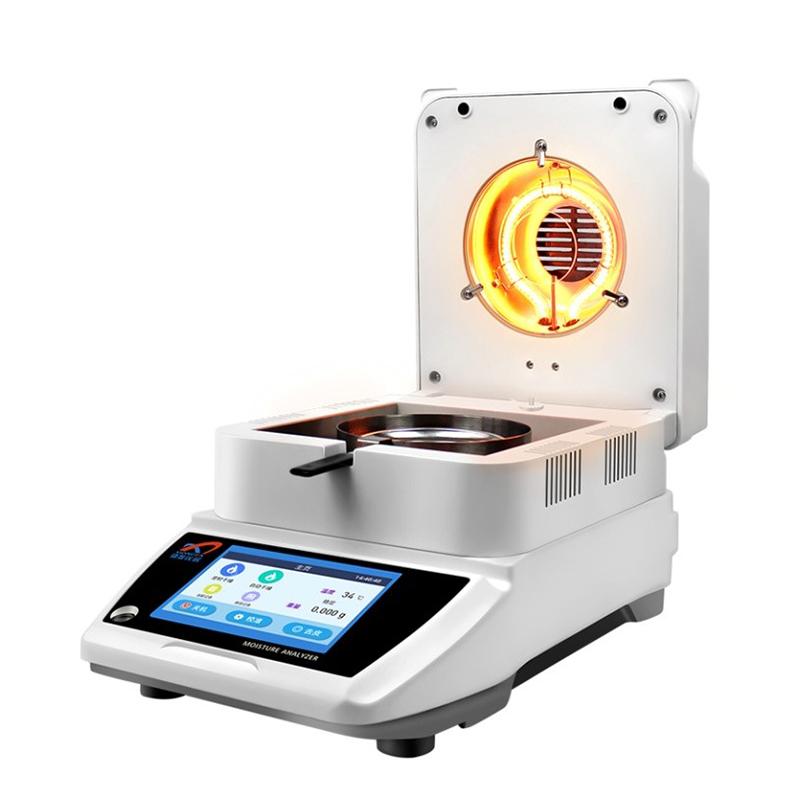

The XIONGFA XF-1102MA halogen fast Moisture Analyzer is a new type of rapid moisture measurement instrument designed on the principle of pyrolysis weight to determine the Moisture content of any substance (except for substances that undergo dangerous chemical reactions by heating). The instrument measures the weight of the sample while rapidly drying the sample through the halogen heating unit and the water evaporation channel. Continuous measurement and immediate display of the Moisture content% of the sample lost during the drying process. After the drying is completed, the final measured Moisture content is locked.
Features
1. Using German HBM Weighing Sensor to Ensure Measurement accuracy
2. Heating Temperature range RT +~ 200 ℃ to meet different sample requirements
3.5-Inch Touchscreen display, intuitive and convenient operation
4. Support automatic/manual/timing three measurement end methods
5. Data storage 20 groups, easy to query historical data
6. Standard RS232 Communication interface, can be connected to the computer to print test results
7. Moisture readability of 0.01%, Measurement accuracy
Principle
The instrument is designed on the principle of pyrolysis weight. While measuring the weight of the sample, the halogen heating unit and the water evaporation channel quickly dry the sample. The instrument continuously measures and instantly displays the Moisture content% of the sample lost during the drying process, and the Moisture content of the final determination is locked after the drying is completed. Press the switch button to observe the moisture value, initial weight value, starting value, test time and other data.
Applications
Grain, chemical industry, tea, food, Spinning & weaving, agriculture and forestry
Interface
RS232 Interface standard
Steps
1. Place the sample on the sample tray
2. Select the measurement method (automatic/manual/timed)
3. Start the test, the instrument automatically heats and dries
4. Observe the display Moisture content changes
5. Read the locked moisture value after the test is completed
6. Press the toggle key to view the Miscellaneous test data
7. Test results can be output via computer or printer
Notice
Prohibit the determination of substances that can undergo dangerous chemical reactions by heating
• Power supply voltage 220V +/- 10%, Frequency 50HZ +/- 1HZ
• The sample tray is made of aluminum material and can be cleaned and used repeatedly
Do not move the instrument during the test
• Regularly clean the sample tray to ensure measurement accuracy
