Overview

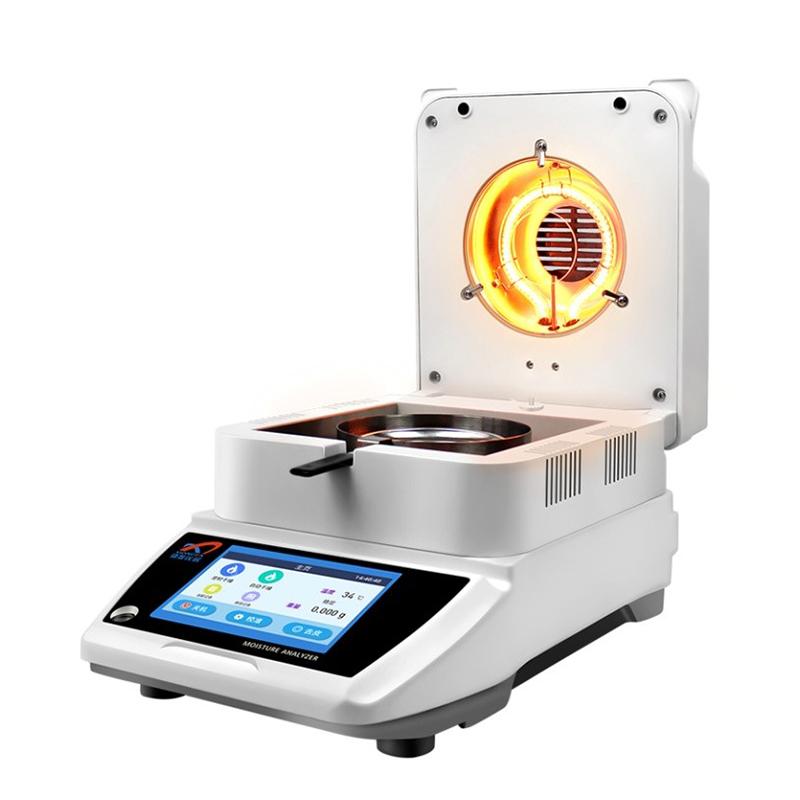

The XIONGFA XF-1203MB halogen fast Moisture Analyzer is a new type of rapid moisture measurement instrument designed on the principle of pyrolysis weight to determine the Moisture content of any substance (except for substances that undergo dangerous chemical reactions by heating). The instrument continuously measures and displays the Moisture content% lost during the drying process through the halogen heating unit and the water evaporation channel while measuring the weight of the sample. After the drying is completed, the final Moisture content is locked, and the data such as moisture value, weight initial value, starting value, test time can be switched to observe.
Features
1. Using pyrolysis weight principle design, accurate and fast measurement
2. halogen heating unit and water evaporation channel for rapid drying
3.5-Inch Touchscreen display, easy to operate
4. Support automatic/manual/timing Test methods
5. Moisture content, Solid content, weight (before and after drying), Wet Weight, moisture regain and other parameters can be displayed
6. Equipped with a standard RS232 interface, it can communicate with a computer and print test results
7. The sample tray is made of aluminum material, which can be cleaned and used repeatedly
Principle
The instrument is designed using the pyrolytic weight principle to rapidly dry the sample through the halogen heating unit and water evaporation channel while measuring the weight of the sample. During the drying process, the instrument continuously measures and instantly displays the percentage of Moisture content lost in the sample, and the final measured Moisture content is locked after the drying is completed.
Applications
Grain, chemical industry, tea, food, Spinning & weaving, agriculture and forestry
Steps
1. Prepare the sample and place it on the sample tray
2. Select Test method (Automatic/Manual/Timed)
3. Start the test, the instrument starts heating and drying
4. Observe the Moisture content changes displayed in real time on the display
5. After the test is completed, the instrument automatically locks the final Moisture content
6. Press the switch button to view the moisture value, weight initial value, starting value, test time and other data
7. The test results can be output by connecting a computer or printer through the RS232 interface
Notice
• It cannot be used for substances that can undergo dangerous chemical reactions by heating
• Power supply voltage 220V +/- 10%, Frequency 50HZ +/- 1HZ
• The sample plate is made of aluminum material and can be cleaned and used repeatedly
• Capacity range of 0.001~ 120g
• Heating Temperature range is RT +~ 180 ℃
• 10 data storage capacity
