Overview

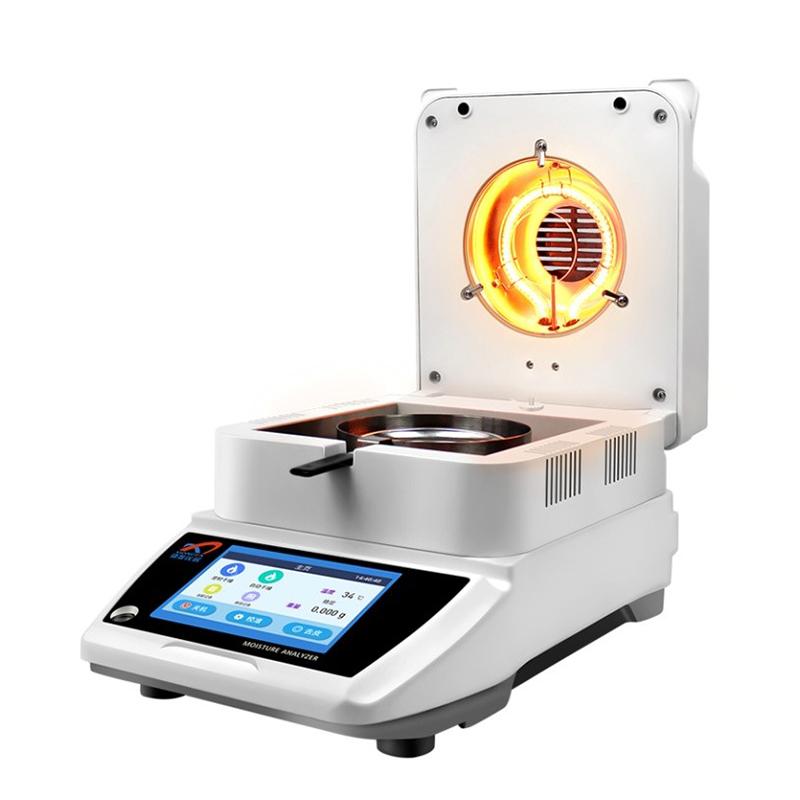

The XIONGFA XF-1203MA halogen fast Moisture Analyzer is a new type of rapid moisture measurement instrument designed on the principle of pyrolysis weight to determine the Moisture content of any substance (except for substances that undergo dangerous chemical reactions by heating). The instrument measures the weight of the sample while rapidly drying the sample through the halogen heating unit and the water evaporation channel. Continuous measurement and immediate display of the Moisture content% of the sample lost during the drying process. After the drying is completed, the final measurement result is locked.
Features
1. Using German HBM Weighing Sensor to Ensure Measurement accuracy
2. Heating Temperature range RT +~ 200 ℃ to meet a variety of sample requirements
3.5-Inch Touchscreen display, intuitive and convenient operation
4. Support automatic/manual/timing three measurement end methods
5. Data storage 20 groups, easy to query historical data
6. Equipped with a standard RS232 interface, it can communicate with a computer and print test results
7. The sample tray is made of aluminum, with a size of φ 85mm, which can be cleaned and used repeatedly.
Principle
The instrument works based on the pyrolytic weight principle. While measuring the weight of the sample, the halogen heating unit and the water evaporation channel rapidly dry the sample. The instrument continuously measures and instantly displays the percentage of Moisture content lost during the drying process. The final measured Moisture content value is locked after the drying is completed.
Applications
Grain, chemical industry, tea, food, Spinning & weaving, agriculture and forestry and all other industries that need rapid measurement of moisture
Standards
Power supply voltage 220V +/- 10%, Frequency 50HZ +/- 1HZ
Steps
1. Place the sample on the sample tray
2. Select the measurement end method (automatic/manual/timed)
3. Start test, instrument automatic heating drying and measurement
4. Moisture content is automatically locked after drying
5. Press the switch button to observe the moisture value, weight initial value, starting value, test time and other data
6. Test results can be output through computer or optional printer
Notice
• Do not use for substances that can undergo dangerous chemical reactions by heating
• Power supply voltage meets 220V +/- 10% requirement before use
• The sample plate is made of aluminum and can be cleaned and used repeatedly
• Net weight 3.5kg, gross weight 4.5kg, please pay attention when handling
• Communication interface is standard RS232, baud rate 9600/S bit
