Overview

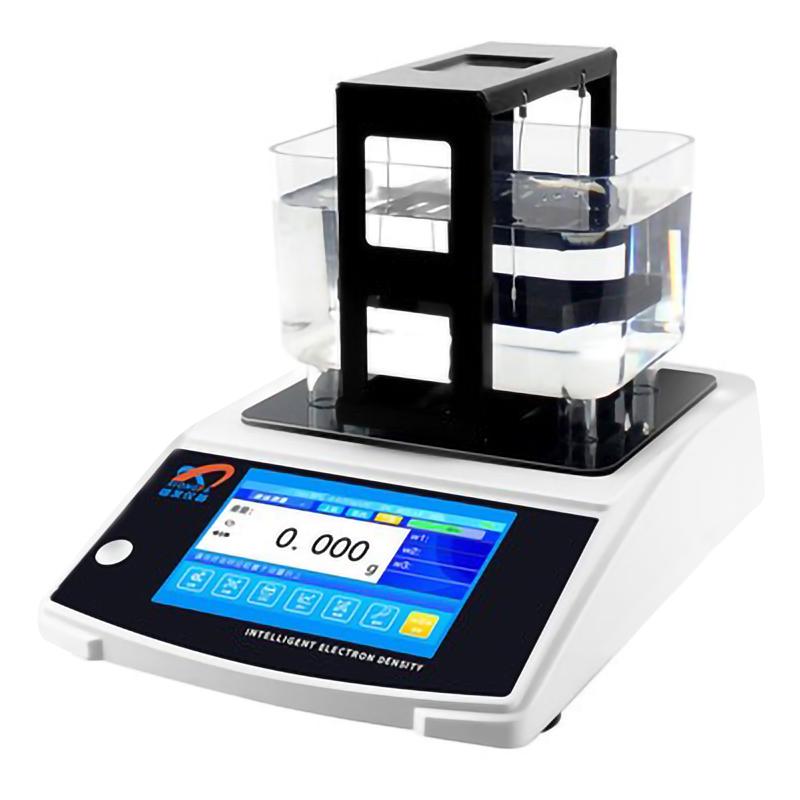

The XIONGFA precision solid Density Meter XFCNMD-2203S is based on the principle of Archimedes substitution method in water and complies with many international and domestic standards such as ASTM D792 and GB/T1033. The instrument is widely used to test any solid material with an irregular density greater than or less than 1, and can directly read the average weight in air, the average weight in water, and the density value, volume, and percentage content of the sample.
Features
1. Using ST's high-performance 32-bit ARM processor, the processing power is better than that of traditional instruments
2. Built-in large-capacity rechargeable lithium battery
3. Using HBM Sensor imported from Germany, Weighing Stable, Measurement accuracy High, Repeatability Good
4. Intelligent pinyin Chinese character input, print content can be freely edited, support ticket and label printing
5. Automatically save 100 sets of measurement data, support statistical analysis, deletion, printing and export functions
Principle
Based on the principle of Archimedes water displacement method, the density, volume and other parameters of the sample are calculated by measuring the weight difference between the sample in air and water. The built-in temperature sensor of the instrument realizes automatic temperature compensation to ensure the accuracy of measurement.
Applications
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
Steps
1. Touch operation through 5-inch Touchscreen
2. Follow the built-in guided test step prompts
3. Set solution compensation parameters
4. Place the sample for measurement
5. View and save measurement results
6. Optionally print or export data
Notice
• Make sure the instrument is properly calibrated before use
• Select the appropriate solution compensation setting according to the Measuring medium
Maintain a stable measurement environment to avoid vibration interference
• Regularly check the battery power to ensure normal power supply
• Use appropriate detergent when cleaning the sink to avoid damage to the PC material
• Confirm interface matching when connecting peripherals
