Overview

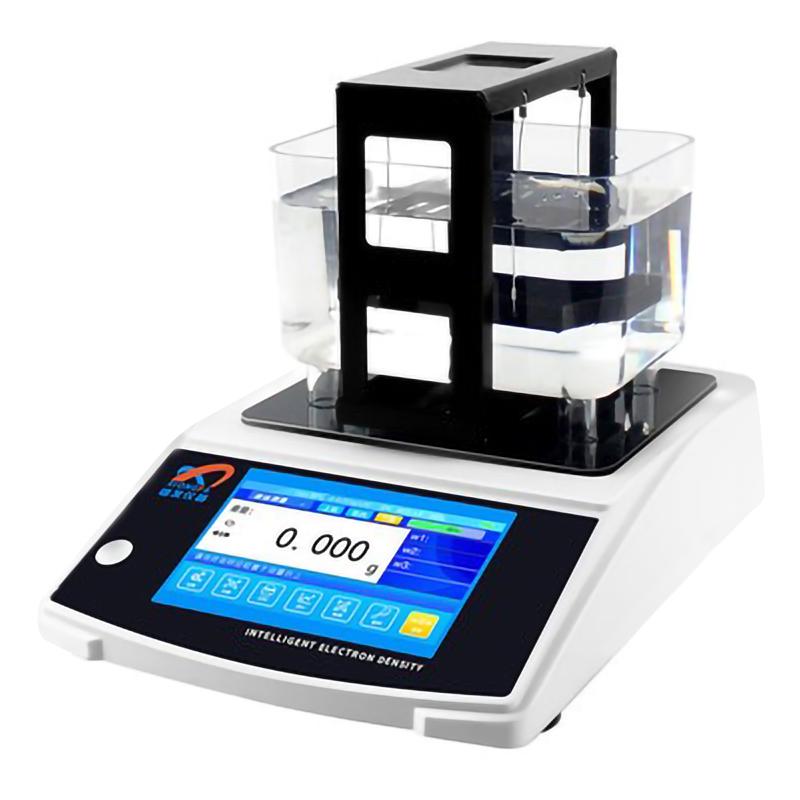

The precision solid Density Meter XFCNMD-3203S adopts the principle of Archimedes' water displacement method and complies with ASTM D792, ASTM D297, GB/T1033 and other standards. The instrument can widely test any irregular density greater than or less than 1 of rubber, plastic, Wire and cable, food, composite and other materials, and directly read the average weight in air, average weight in water, density value, volume and percentage content of solid, granular, thin film and floating body samples.
Features
1. Using ST's high-performance 32-bit ARM processor, the processing power is a hundred times better than that of traditional instruments, and the operation accuracy is fast
2. Built-in large-capacity rechargeable lithium battery
3. Using HBM Sensor imported from Germany, stable weighing, accurate density value, high Measurement accuracy, good Repeatability, fast display density value, simple operation, no manual calculation
4. Intelligent pinyin Chinese character input, print content can be freely edited, support ticket printing and label printing, can customize print title and company information
5. Automatically save 100 sets of measurement data and perform statistical analysis, support dynamic deletion, statistical printing and export to U disk (optional)
Principle
The precision solid Density Meter is based on the Archimedes principle buoyancy method for measurement, and the density of the sample is calculated by the water displacement method. The instrument has a built-in temperature sensor to realize automatic temperature compensation, and has the functions of environment adjustment and actual water temperature compensation to ensure the accuracy of the measurement results.
Applications
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
Steps
1. Use 5-inch Touchscreen touch operation, built-in guided test step prompts
2. Set the upper and lower limits of product density to determine whether the material is qualified or not
3. Solution compensation setting, water or Miscellaneous liquid medium can be used
4. Sample measurement, the instrument automatically calculates density, volume and volume percentage
5. Automatically store 100 test values and automatically average the density
6. Connect a printer or computer through the RS232 interface for data printing or export
Notice
• The instrument adopts AC100V~ 240V Power supply voltage to ensure use in the range of 50HZ/60HZ
• The sink is an integrated injection-molded transparent sink made of PC material. The size is 15.3 × 10.7 × 8.0cm in length. Pay attention to maintenance when using it.
• Calibration mode Support single-point automatic correction and multi-point automatic correction, and calibrate regularly to ensure Measurement accuracy
• Interface is a standard RS-232 interface, and a USB interface can be customized. Pay attention to compatibility when connecting external devices
• The instrument has a buzzer function to prompt the measurement status, pay attention to the volume setting
