$ 374.00Ex works
Using HBM Sensor imported from Germany to ensure stable weighing and accurate density value; Measurement accuracy of 0.001g/cm ³, fast display density value; Automatically save 100 sets of data and statistical analysis to simplify the operation process.
Category : Densitometer
Brand : XIONGFA
SKU : NB034727
Service :The delivery and service By NBCLab.Com

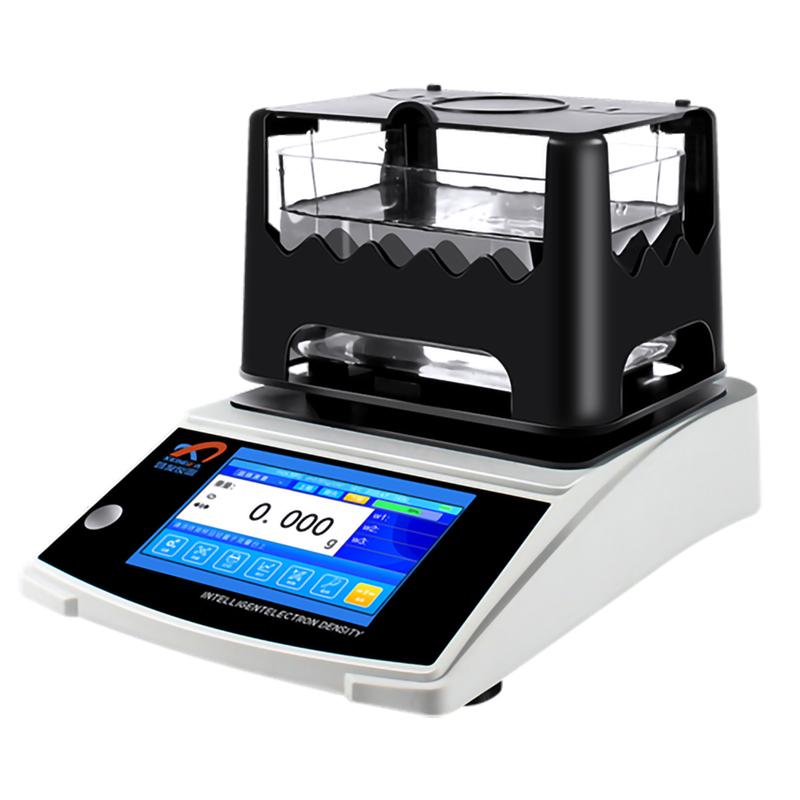

XIONGFA XFCNMD-3002S Hot-selling Solid Density Meter is a precision instrument designed according to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 standards, using Archimedes' principle of water replacement method. Widely used to test any irregular density greater than one or less than one rubber, plastic, Wire and cable, food, composite, cosmetics, shoes, Glass, Precious Metal Hardware, plastic, automotive parts, magneto iron core, powder metallurgy, micro fan, tire and other materials, can directly read the solid, particles, film, floating body sample in the air average weight, average weight in water and density value, volume, percentage content.
1. Using ST's high-performance 32-bit ARM processor, the processing power is a hundred times better than that of traditional instruments, and the operation accuracy is fast. 2. Built-in large-capacity rechargeable lithium battery. 3. Using HBM Sensor imported from Germany, stable weighing, accurate density value, high Measurement accuracy, good Repeatability, fast display density value, simple operation, fast time, no manual calculation. 4. Intelligent pinyin Chinese character input, print content can be freely edited, support bill printing, label printing, accurately record measurement data, custom print title, company information. 5. Automatically save 100 sets of measurement data, and perform statistical analysis on the data, dynamically delete, print statistics, and export to the U disk (optional) to free up cumbersome measurement work.
The XIONGFA Solid Density Meter uses the Archimedes principle buoyancy method to calculate the density, volume and percentage content by measuring the weight difference of the sample in air and water. The built-in temperature sensor automatically realizes the temperature compensation function to ensure the measurement accuracy.
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
1. Turn on the power supply of the device to ensure that the display screen starts normally. 2. Use the 5-inch Touchscreen for touch operation, with built-in guided test step prompts to simplify the operation process. 3. Set parameters, such as water temperature setting, measurement solution density compensation setting, standard material density setting, standard volume setting. 4. Place the sample on the ABS integrated injection molding measurement platform, free to choose the clamshell mode or use the magic measurement rack. 5. Start the measurement, the device automatically calculates and displays the density, volume and volume percentage results. Measurement time is about 5 seconds. 6. Data is automatically saved to the built-in memory for statistical analysis, printing, or export.
• Before use, ensure that the power supply voltage of the equipment is within the range of AC100V~ 240V 50HZ/60HZ to avoid voltage instability affecting measurement. • During measurement, pay attention to the fact that the sink is a transparent sink made of PC material, and the size is 15.3 × 10.7 × 8.0cm long × 10.7 × 8.0cm high to ensure that the sample is completely immersed in the liquid. • Can set the upper and lower density limits to judge whether the material is qualified or not, with buzzer function, pay attention to timely Response prompts. • Periodic single-point or multi-point automatic correction to maintain Measurement accuracy. • When using water or Miscellaneous liquid media, pay attention to the solution compensation setting to avoid the medium density affecting the results. • Interface is a standard RS-232 interface, which can be connected to thermal printers, label printers or computers to ensure stable connection. • When purchasing Accessories such as WLD-58 Density Meter Thermal Printer, Multi-point Correction weight set, Liquid density measurement kit, Label Printer, confirm compatibility.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
