Overview

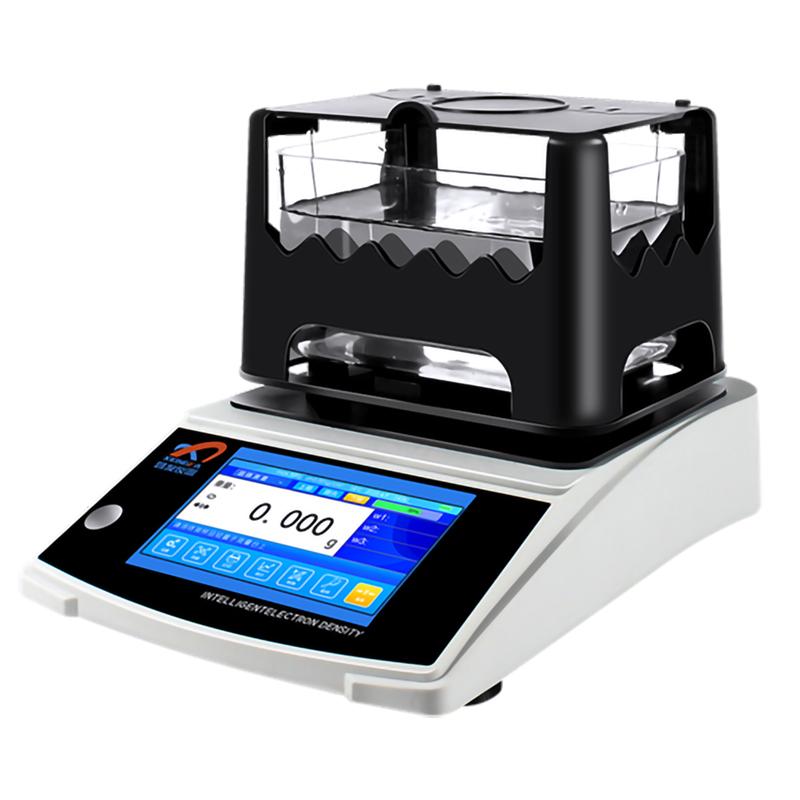

XIONGFA XFCNMD-6002S hot-selling solid Density Meter is a precision instrument designed based on the principle of Archimedes' water replacement method, conforming to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 and other standards. It is widely used to test any material with an irregular density greater than or less than one, such as rubber, plastic, Wire and cable, food, composite, cosmetics, shoe material, Glass, precious metal Hardware, plastic, automotive parts, magneto core, powder metallurgy, micro fans, tires, etc., which can directly read the average weight of solid, granular, film, floating body samples in air, average weight in water, and density value, volume and percentage content.
Features
1. Using ST's high-performance 32-bit ARM processor, the processing power is a hundred times better than that of traditional instruments, and the operation accuracy is fast.
2. Built-in large-capacity rechargeable lithium battery.
3. Using HBM Sensor imported from Germany, stable weighing, accurate density value, high Measurement accuracy, good Repeatability, fast display density value, simple operation, fast time, no manual calculation.
4. Intelligent pinyin Chinese character input, print content can be freely edited, support bill printing, label printing, accurately record each measurement data; custom print title, company information, let the print as you like.
5. Automatically save 100 sets of measurement data, and perform statistical analysis on the data, dynamically delete, print statistics, export to the U disk (optional), accurately and effectively record the measurement data, and liberate the cumbersome measurement work.
Principle
The Density Meter is based on the Archimedes principle buoyancy method and calculates density, volume and percentage content by measuring the weight difference of the sample in air and water. The built-in temperature sensor automatically implements temperature compensation to ensure measurement accuracy.
Applications
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
Steps
1. Use 5-inch Touchscreen touch operation with built-in guided test step prompts to simplify and speed up the operation process.
2. Set parameters, such as water temperature setting, measurement solution density compensation setting, standard material density setting, standard volume setting.
3. The sample is placed on the measurement platform, and the instrument automatically measures and displays the results of density, volume, volume percentage, etc.
4. Data is automatically saved for statistical analysis, printing, or export.
Notice
• When using water as the medium, other liquid media can also be used, and solution compensation settings are required.
• You can set the upper and lower density limits to judge whether the material is qualified or not, with a buzzer function prompt.
• Standard RS232 printer interface, which can connect thermal printers, label printers and computer PCs to customize print content.
• Calibration methods include single-point automatic correction and multi-point automatic correction to ensure Measurement accuracy.
• Power supply voltage is AC100V~ 240V 50HZ/60HZ, pay attention to power adaptation when using.
