$ 496.00Ex works
Using high-performance 32-bit ARM processor and German HBM Sensor, weighing range 0.005~ 300g, readability 0.001g/cm ³, automatic temperature compensation and solution compensation, 5 seconds fast measurement and storage of 100 sets of data.
Category : Densitometer
Brand : XIONGFA
SKU : NB034729
Service :The delivery and service By NBCLab.Com

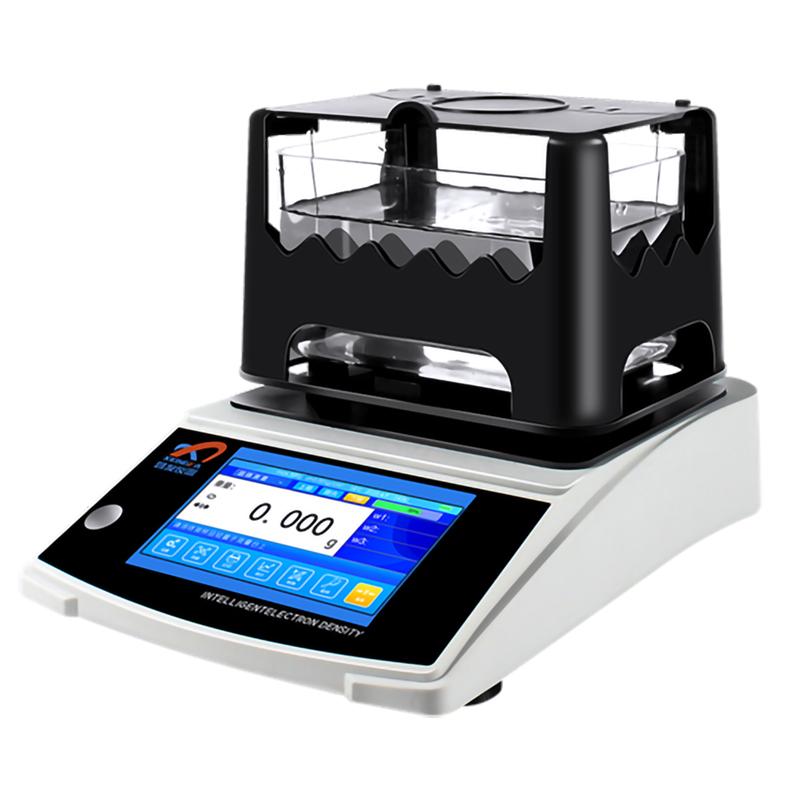

XIONGFA XFCNMD-3005S Hot-selling Solid Density Meter is a precision instrument designed according to ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 standards, using Archimedes' principle of water replacement method. Widely used to test any irregular density greater than one or less than one rubber, plastic, Wire and cable, food, composite, cosmetics, shoes, Glass, Precious Metal Hardware, plastic, automotive parts, magneto iron core, powder metallurgy, micro fan, tire and other materials, can directly read the solid, particles, film, floating body sample in the air average weight, average weight in water and density value, volume, percentage content.
1. Using ST's high-performance 32-bit ARM processor, the processing power is a hundred times better than that of traditional instruments, and the operation accuracy is fast 2. Built-in large-capacity rechargeable lithium battery 3. Using HBM Sensor imported from Germany, stable weighing, accurate density value, high Measurement accuracy, good Repeatability, fast display density value, simple operation, fast time, no manual calculation 4. Intelligent pinyin Chinese character input, print content can be freely edited, support bill printing, label printing, accurately record measurement data, custom print title, company information 5. Automatically save 100 sets of measurement data, and perform statistical analysis on the data, dynamically delete, print statistics, export to U disk (optional), accurately and effectively record measurement data, and liberate cumbersome measurement work 6. Built-in temperature sensor, can automatically realize temperature compensation function 7.5-Inch Touchscreen touch operation, easy to operate, built-in guided test step prompts, simplify and speed up the operation process 8. Solution compensation setting, using water as a medium, other liquid media can also be used 9. Can set the upper and lower density limits, can judge whether the material is qualified or not, with buzzer function 10. Standard RS232 printer interface, can connect thermal printers, label printers and computer PCs, can customize print content
The Density Meter uses the Archimedes principle buoyancy method to calculate the density value by measuring the weight difference of the sample in air and water. The built-in temperature sensor automatically realizes temperature compensation to ensure measurement accuracy.
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Auto Parts, Magnetic Oxygen Core, Powder Metallurgy, Micro Fan, Tire
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
1. Turn on the power of the device and start the 5-inch Industrial Touchscreen 2. Select Measurement mode according to the built-in guided test step prompts 3. Place the sample on the measurement platform (ABS integrated injection molding, free choice of flip mode or magic measurement rack) 4. Sample weight measurement in air 5. Immerse the sample in the water tank (PC material integrated injection molding transparent water tank), and measure the weight in the water 6. The device automatically calculates and displays the results of density, volume and volume percentage 7. You can choose to save data, print or export results
• Power supply voltage in AC100V~ 240V 50HZ/60HZ range • Single-point or multi-point automatic correction before use to ensure measurement accuracy • Sink size is 15.3 × width 10.7 × height 8.0cm, Sample size needs to be adapted • The measurement solution can be selected as water or Miscellaneous liquid medium, and solution compensation setting is required • Regularly check Sensor and battery status to avoid affecting performance • Data export to U disk is an optional function, and the device configuration needs to be confirmed. • Follow safety regulations when operating to avoid damage to equipment from samples or liquids
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
