Overview

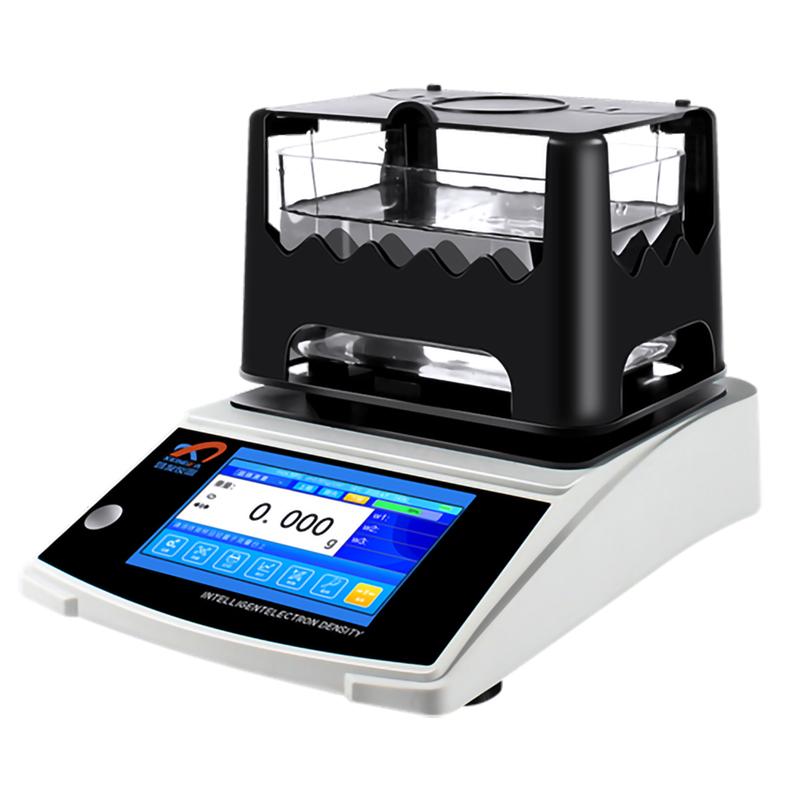

XIONGFA XFCNMD-6005S hot-selling solid Density Meter is a precision instrument, designed based on the principle of water replacement method of Archimedes, in line with ASTM D792, ASTM D297, GB/T1033, GB/T2951, GB/T3850, GB/T533, HG4-1468, JIS K6268, ISO 2781, ISO 1183, GB/T208, GB/T5163, GB/T1933, GB/T4196, GB/T4123, GB/T5586, JB/T7780 and other standards. It is widely used to test any solid, granular, thin film, floating body samples with irregular density greater than or less than one, and can directly read the average weight of the sample in air, the average weight in water, and the density value, volume, percentage content.
Features
1. Using ST's high-performance 32-bit ARM processor, the processing power is a hundred times better than that of traditional instruments, and the operation accuracy is fast.
2. Built-in large-capacity rechargeable lithium battery.
3. Using HBM Sensor imported from Germany, stable weighing, accurate density value, high Measurement accuracy, good Repeatability, fast display density value, simple operation, fast time, no manual calculation.
4. Intelligent pinyin Chinese character input, print content can be freely edited, support bill printing, label printing, accurately record each measurement data; custom print title, company information.
5. Automatically save 100 sets of measurement data, and perform statistical analysis on the data, dynamically delete, print statistics, and export to the U disk (optional) to free up cumbersome measurement work.
Principle
The Density Meter is based on the Archimedes principle buoyancy method and calculates density by measuring the weight difference between the sample in air and water. The built-in temperature sensor automatically implements temperature compensation to ensure measurement accuracy.
Applications
Rubber, Plastic, Wire and cable, Food, Composites, Cosmetics, Shoe Material, Glass, Precious Metal Hardware, Plastic, Wire and cable, Auto Parts, Oxymagnetic Core, Powder Metallurgy, Micro Fan, Tire
Standards
ASTM D792、ASTM D297、GB/T1033、GB/T2951、GB/T3850、GB/T533、HG4-1468、JIS K6268、ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780
Steps
1. Turn on the power of the device and ensure that the Touchscreen is displayed normally.
2. Place the sample on the measurement platform according to the guided test step prompts.
3. Select Measurement mode, such as using water or Miscellaneous liquid medium, and set solution compensation.
4. The device automatically measures the weight of the sample in air and water, calculates and displays the density, volume and percentage content.
5. The data is automatically saved and can be connected to the printer through the interface or exported to the U disk.
6. Set the upper and lower density limits as needed to determine whether the material is qualified or not.
Notice
• Before use, ensure that the power supply voltage of the equipment is AC100V~ 240V 50HZ/60HZ to avoid voltage instability affecting the measurement.
• Ensure that the sample is clean and drying during measurement to avoid impurities affecting the accuracy.
• Periodic single-point or multi-point automatic correction to maintain measurement accuracy.
• When using liquid media, pay attention to the solution density compensation setting to ensure accurate results.
• Avoid operating in humid or high temperature environments to prevent equipment damage.
When exporting or printing data, ensure that the connection interface is stable to avoid data loss.
