Overview

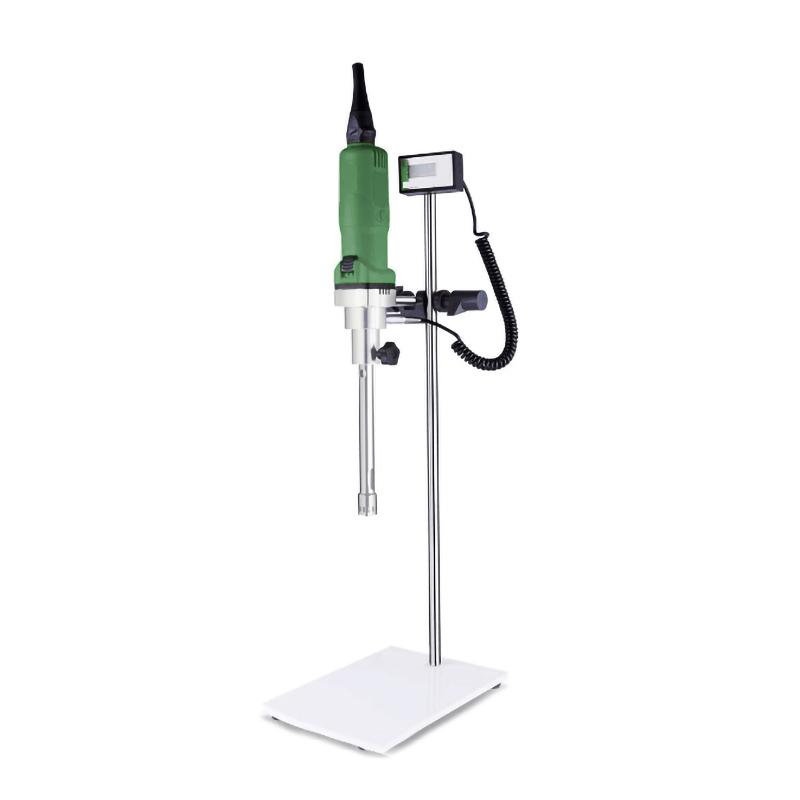

MUXUAN MS-B25 laboratory high-shear Mulser adopts German high-speed motor, Rotation speed up to 28000rpm, line speed up to 27m/s, and can be equipped with a variety of working heads. The whole machine module structure, easy to operate, can operate for a long time, suitable for a variety of high-demand decentralized emulsification experiments.
Features
1. German high-speed motor, Speed range 7000~ 28000rpm, line speed up to 27m/s

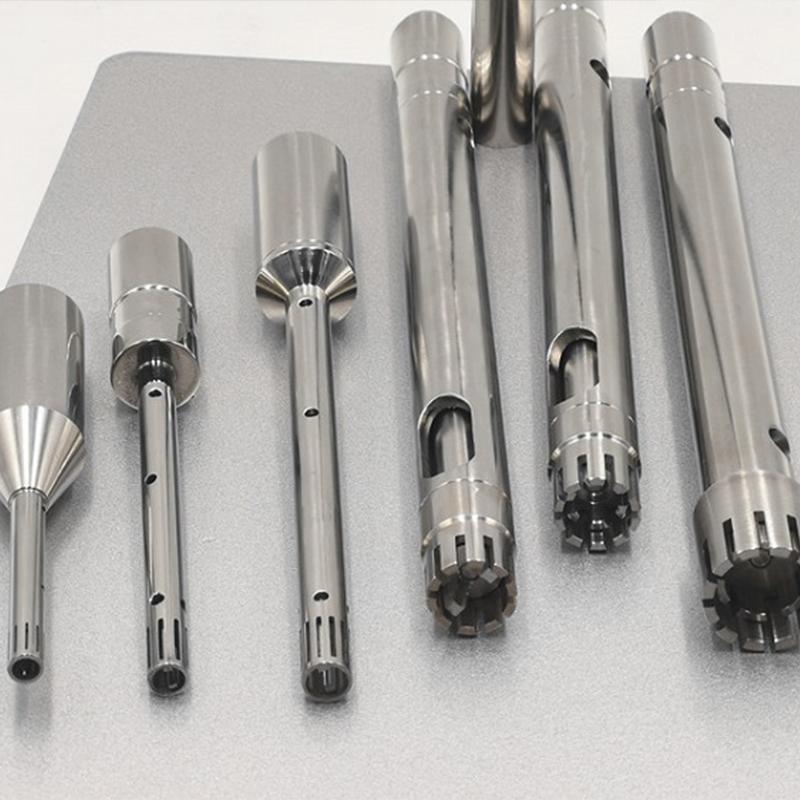

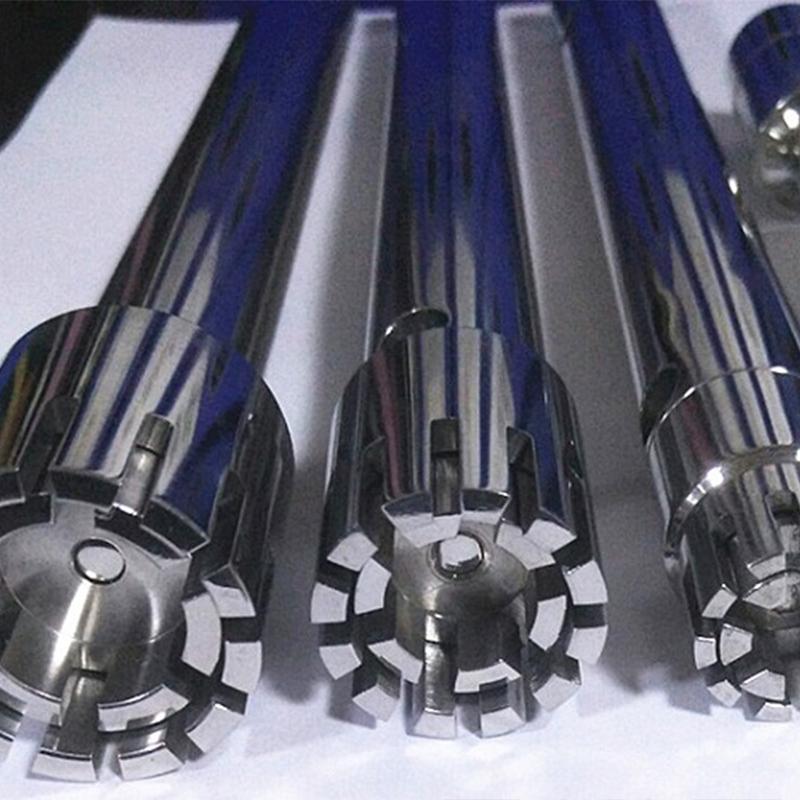

2. A variety of working heads can be selected to meet different process requirements
3. The whole machine has a modular structure, which is easy to operate and can operate for a long time
4. The working head is made of stainless steel 316 #, with strong corrosion resistance
5. Support scale stepless speed regulation, optional digital display operation monitor
Principle

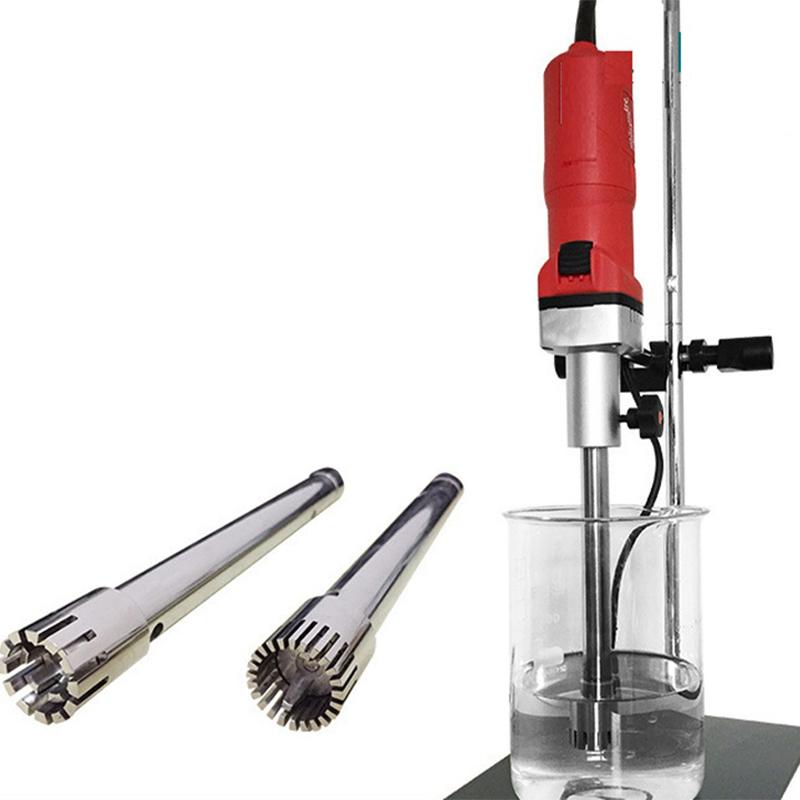

The equipment shears, disperses and emulsifies materials through a high-speed swirl/spin working head to form solutions, colloids, suspensions or emulsions. Depending on the selected working head, various processes such as dispersion, emulsification, homogenization, grinding, crushing can be completed.
Applications
Fine Chemicals, Petrochemicals, Biomedical, Paint inks, Pesticides, Nanomaterials, Food Industry, Daily Chemicals
Steps
1. Select the appropriate working head according to the material characteristics
2. Immerse the working head in the liquid, with a height of no more than 200mm
3. Turn on the power and set the desired Rotation speed
4. Start equipment for decentralized, emulsification or homogenization
5. Turn off the power after the operation is completed and clean the working head
Notice
• Material viscosity must not exceed 8000cp
• The height of the working head immersed in the liquid does not exceed 200mm
• The operating temperature shall not exceed 120 ° C
• Ambient Temperature not more than 40 ℃, relative humidity not more than 80%
• Power supply voltage AC 220V 50/60 Hz
• Regularly check the working head and bearing status
