Overview

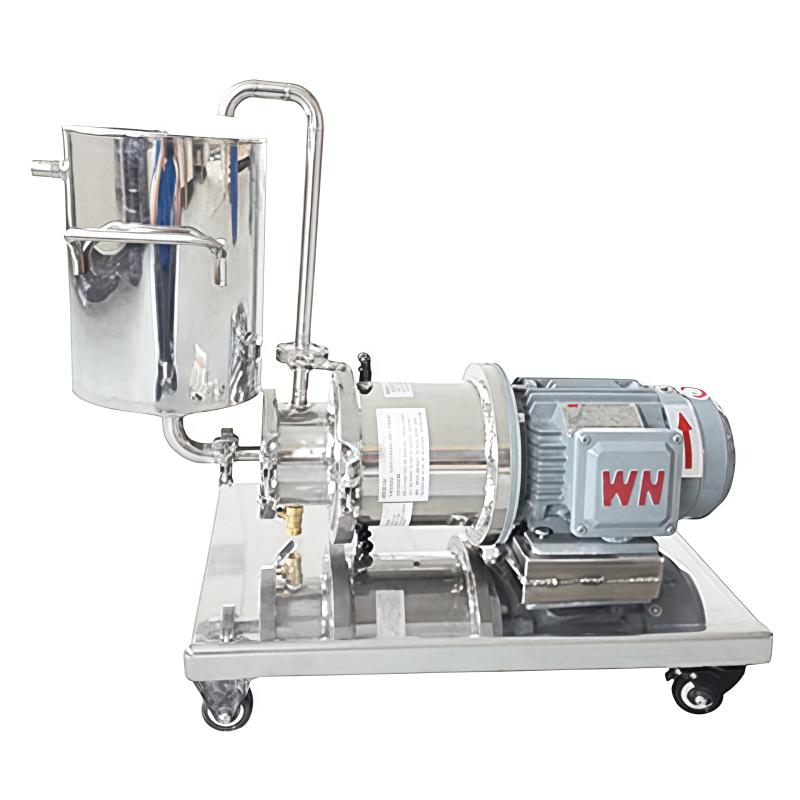

MUXUAN laboratory single-stage emulsification pump model MXR-2.2-1, using horizontal structure, the working chamber is equipped with a set of rotating stator, the motor high-speed swirl/spin generates a strong suction force to suck the material, after multi-stage multi-layer rotating stator multiple dispersion, shearing, emulsification, cycle continuous processing to obtain stable high-quality products. Suitable for liquid or miscible materials mixing, dispersion, dissolve, emulsification.
Features
1. The operation is simple and convenient, with its own circulating barrel, good conveying capacity, convenient solvent self-circulation cleaning, no need to equip additional conveyor pump, double-decked chill down barrel, low temperature of equipment.
2. High experimental efficiency, stable product quality, equipment linear speed of more than 20m/s, can quickly distribute one phase uniform material to another or more materials, to achieve the effect of refinement homogeneity, dispersion emulsification, product stability is not easy to delamination.
3. High processing accuracy, the rotating stator is made of forging material and CNC machining center, the rotating stator gap is small, the shearing fineness is good, the emulsification and dispersion efficiency is high, and the double-ended mechanical sealing design is adopted, no leakage, and the maintenance cost is reduced.
4. Non-standard, the material can be customized SS304, SS316L/titanium alloy/titanium molybdenum nickel alloy and other unconventional materials according to requirements; explosion-proof equipment can be customized, and frequency conversion speed regulation can be optional.
Principle
The single-stage emulsification pump in the laboratory adopts a horizontal structure, and a set of rotating stators are installed in the narrow working chamber. The motor drives the intermediate shaft to run at high speed, and the rotating stator forms a vacuum to suck the material into the chamber. Powerful kinetic energy makes the rotor produce a high linear speed, and the material is sent out after strong impact, crushing, centrifugal extrusion, liquid layer friction, and shearing between the rotating and stator gaps. Under the action of a variety of different directional forces, strong turbulence is generated, and the material flows out from the outlet and enters the double-decked Mixing Tank cycle, so that the immiscible solid phase, liquid phase, gas and other media are instantly uniform and fine, dispersed and emulsified to achieve stable high-quality products.
Applications
Dispersion and emulsification of materials in biological, food, coatings, inks, Spinning & weaving auxiliaries, cosmetics, lubricants, pesticides and other industries
Steps
1. Inhale the material into a double-decked Mixing Tank for import.
2. Start the motor, the material in the stator cavity through dispersion, shearing, emulsification.
3. The material flows out of the outlet and enters the double-decked Mixing Tank cycle.
Notice
• Material viscosity should be ≤ 20000 cps.
• Single capacity is 5-20L.
• Suitable for the process of mixing solids and liquids, liquids and liquids to form solutions, colloids, suspensions or emulsions.
