Overview

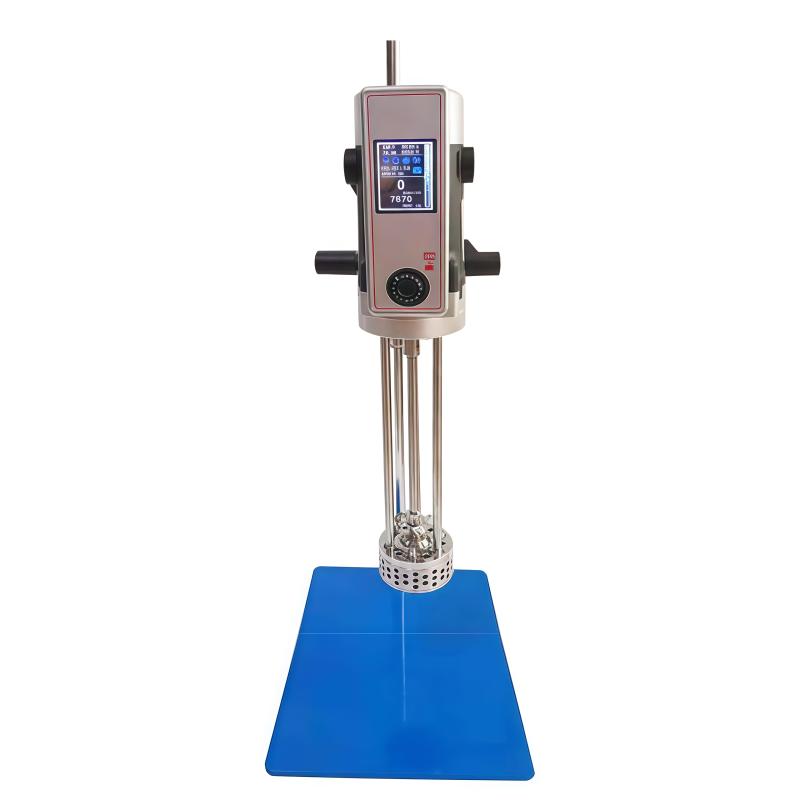

The laboratory high-shear Mulser ZN500-90 is a MUXUAN brand equipment specially designed for laboratory micro-experiments. Through mechanical external force, the particle size of liquid-liquid and solid-liquid materials is narrowed, and one phase is evenly distributed into another or more phases to achieve the effect of refinement and homogenization, dispersion and emulsification, forming a stable dispersion system. Can be equipped with a variety of different specifications of the working head.
Features

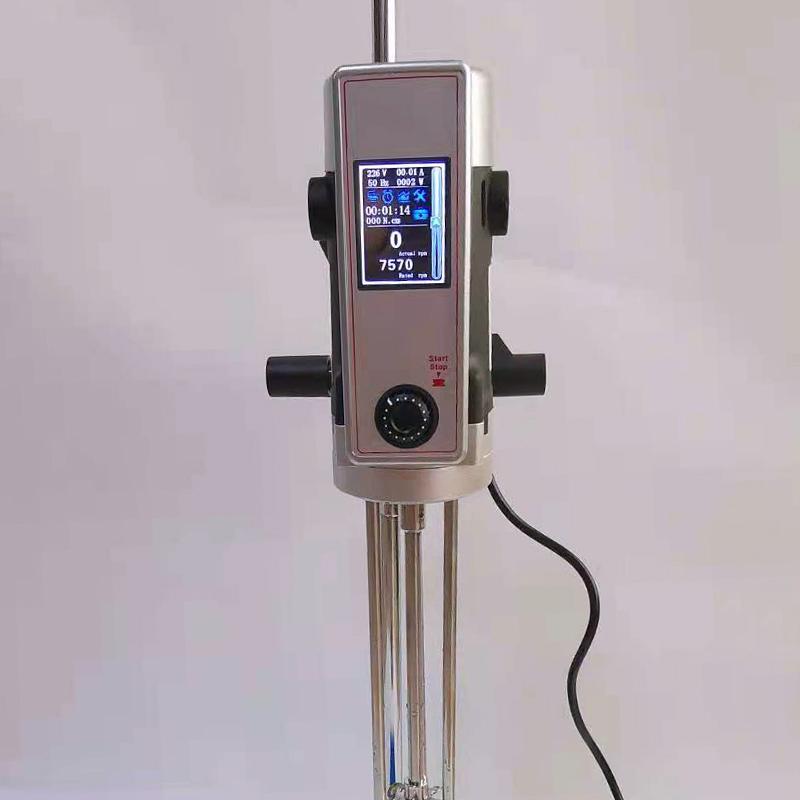

1. Three-core processor intelligent control main board, 2.8-inch TFT true color touch screen, real-time display voltage, Frequency, Current, Power
2. Linear dispersion diagram shows that the experimental data is more stable
3. With overload and overcurrent protection, local self-test, timing, memory and other functions
4. Rotation speed can be preset, can be suspended at any time, Rotation speed digital display, easy to operate

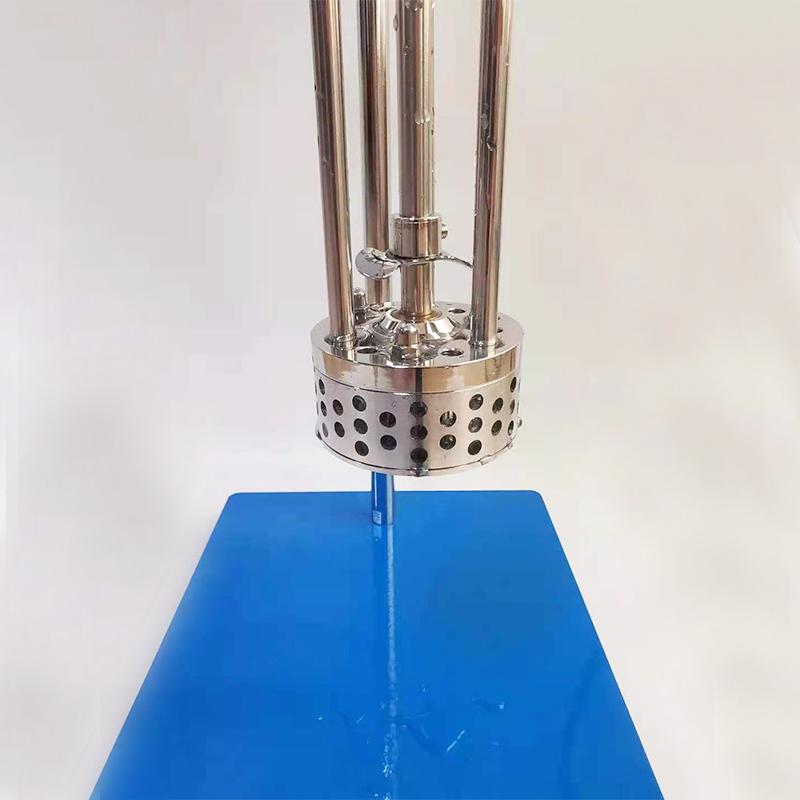

5. The working head is made of stainless steel 304/316L, with one round hole and one long hole working head as standard.
Principle
The laboratory homogeneous Mulser uses a strong motor to swirl/spin at high speed to form a vacuum between the rotor and the stator, and the material is sucked from the upper and bottom of the rotor and the stator. Powerful kinetic energy causes the rotor to generate a high linear velocity. The material is sent out after strong impact, crushing, centrifugal extrusion, liquid layer friction, and shearing between the rotation and stator gaps, generating strong turbulence under the action of various directional forces. The material is repeatedly depolymerized, dispersed, homogenized, refined, and shearing under an appropriate amount of emulsifying agent and mature technology, and finally produces a stable emulsion.
Applications
Dispersion, emulsification and homogenization of materials in biological, food, coatings, inks, Spinning & weaving auxiliaries, cosmetics, lubricants, pesticides and other industries
Steps
1. Connect the device power supply (Rated voltage AC 220V 50/60Hz)
2. Select the appropriate working head and install it
3. Immerse the working head into the material to ensure that the immersion height is above 50mm
4. Rotation speed required by TFT touch screen setting (range 1000~ 12000rpm)
5. Set the timing time (range 1~ 1000min)
6. Start the device and start working
7. Real-time Monitoring of Voltage, Current, Frequency, Power and Torque Linear dispersion
8. Turn off the equipment and clean the work head after the work is completed
Notice
• Material viscosity must not exceed 8000 cps (mPas)
• Ambient Temperature not more than 40 ℃
• relative humidity not more than 80%
• The minimum immersion liquid height is 50mm
• Maximum immersion liquid height is 50mm
• Processing capacity is 800~ 30000mL
• Check whether the overload protection function is normal before use
• Pay attention to the safety protection when the equipment is working
