Overview

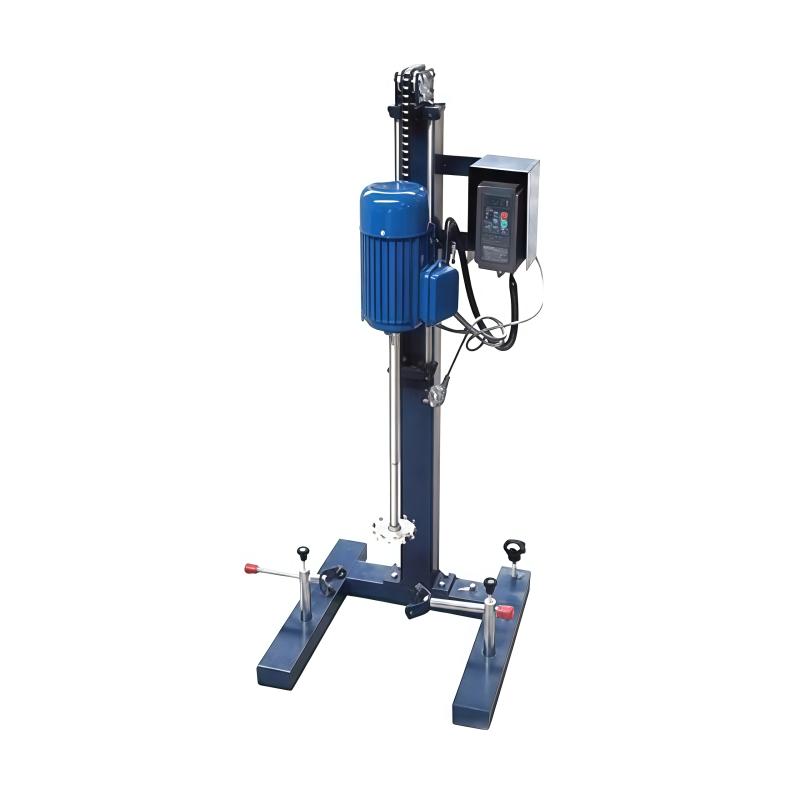

MUXUAN MXF-C1.5 Experimental Chinese Small Batch Dispersion Stirrer uses high-performance variable frequency motors and three-phase asynchronous motors as drive motors. According to the viscosity and Processing capacity, different Rotation speed motors can be selected, 0-1500/0-3000/0-5000/0-8000 rpm. Compared with Miscellaneous type high-speed motors, it has the advantages of small size, large output power, stable Rotation speed, variable frequency and variable speed, large starting torque, high operating efficiency, low energy consumption, low noise and high Stability. It improves the working environment of users and is a new upgrade product that is more suitable for laboratory and production use.
Features
1. High-performance motor, lower noise, smoother operation, ensuring the high quality of the whole machine
2. Digital dynamic Rotation speed frequency conversion control, can be selected according to the process needs of timing, motor explosion-proof, explosion-proof machine, sound and light alarm and other configurations
3. Lifting method: divided into manual lifting and electric lifting
4. Mixing methods include paddle type, tooth plate type and blade type. Different mixing forms can be selected according to the needs of process production, and the replacement is simple and convenient
Principle
The equipment drives the stirringdevice through a high-performance variable frequency motor or a three-phase asynchronous motor to realize the functions of dispersing, mixing, dissolving and stirring of materials. Rotation speed can be accurately adjusted by frequency conversion control technology to meet the processing requirements of materials of different viscosities.
Applications
Biology, cosmetics, food, paints, inks, Adhesives, dyestuffs, pesticides
Steps
1. Rotation speed motor according to material viscosity and Processing capacity
2. Mixing method (paddle type, tooth plate type or blade type) is selected according to the process needs and installed
3. Select the lifting method (manual or electric)
4. Rotation speed parameter
5. Start the equipment for dispersion mixing operation
Notice
• Material viscosity should be ≤ 25000 cps
Processing capacity range of 5~ 30L
• Power supply voltage is 220/380V
• The container size that can be placed is φ 300mm and the height is 430mm.
• Select relevant configurations according to process needs
