Overview

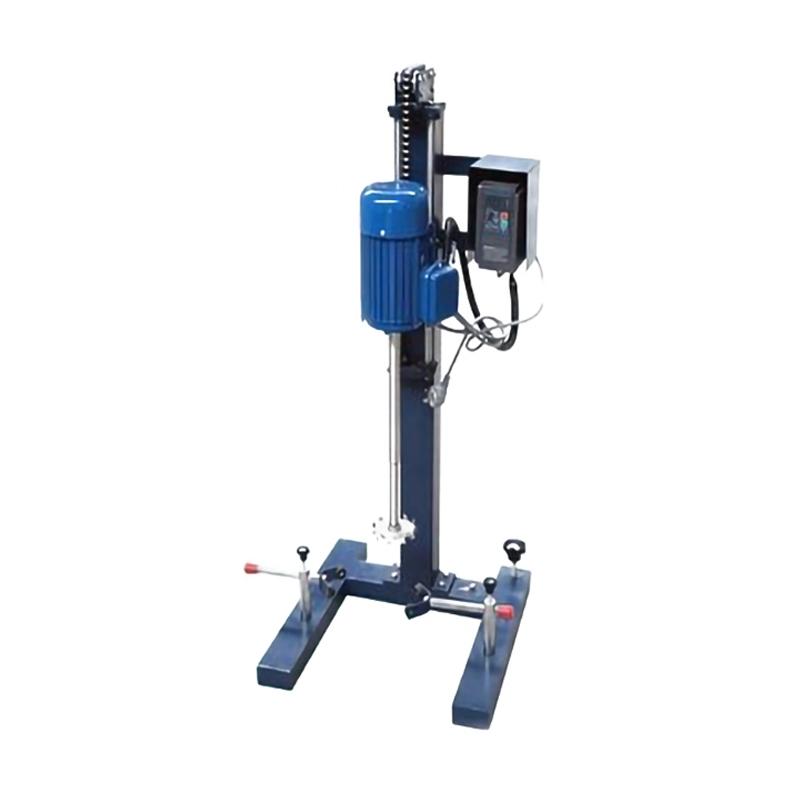

MUXUAN MXF-C1.5 Experimental Chinese Small Batch Dispersion Stirrer uses high-performance variable frequency motors and three-phase asynchronous motors as driving motors. According to the viscosity and Processing capacity, different Rotation speeds can be selected. It has the advantages of small size, large output power, stable Rotation speed, variable frequency, large starting torque, high operating efficiency, low energy consumption, low noise, and high Stability. It improves the working environment of the user. It is a new upgrade product that is more suitable for laboratory and production use.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. Digital dynamic Rotation speed frequency conversion control, can be selected according to the process needs of timing, motor explosion-proof, explosion-proof machine, sound and light alarm and other configurations
3. Lifting methods are divided into manual lifting and electric lifting
4. Mixing methods include paddle type, tooth plate type and blade type. Different mixing forms can be selected according to the needs of process production, and the replacement is simple and convenient
Principle
The device drives the stirringdevice through a high-performance variable frequency motor and a three-phase asynchronous motor, and selects different Speed ranges (0- 1500/0-3000/0- 5000/0-8000 rpm) according to the viscosity of the material and the processing capacity to realize the dispersion, mixing, dissolve, stirring and other functions of the material.
Applications
Biology, cosmetics, food, paints, inks, Adhesives, dyestuffs, pesticides
Steps
1. Speed range according to material viscosity and Processing capacity
2. Mixing method (paddle type, toothed disc type or blade type)
3. Select the lifting method (manual or electric)
4. Rotation speed and process parameters
5. Start the equipment for dispersion mixing operation
Notice
• Material viscosity should be ≤ 25000 cps
• Processing capacity range 0.5-300 L
Processing capacity is 5~ 30L
• Power supply voltage is 220/380V
• The container size that can be placed is φ 300mm and the height is 430mm.
