Overview

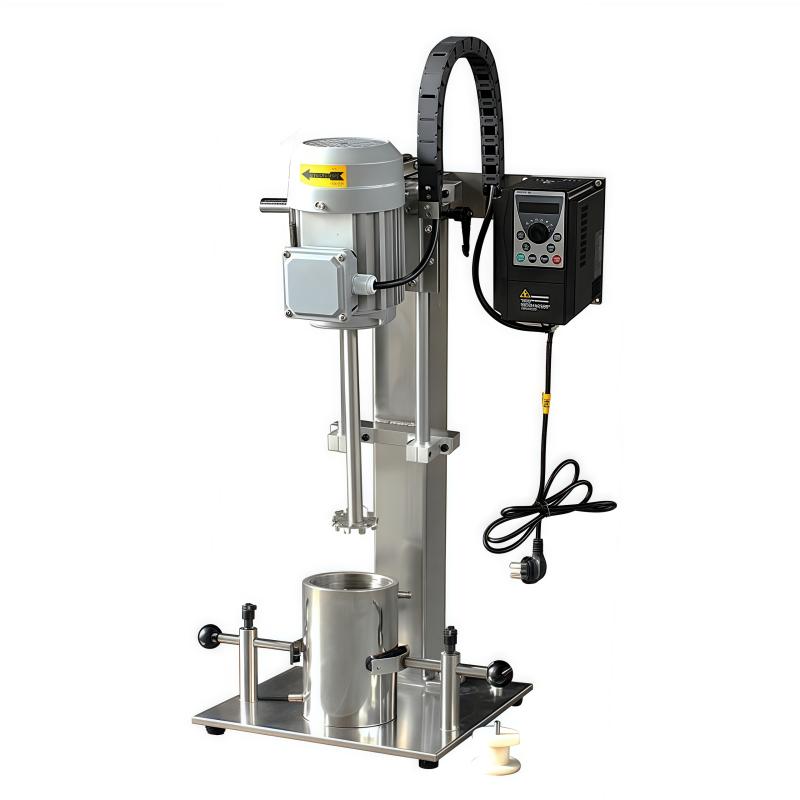

XD-E750 laboratory Disperser adopts high-performance three-phase asynchronous motor as the driving motor, which has the advantages of large Power, small vibration, stable Rotation speed, low noise and variable frequency speed, large starting torque, high operating efficiency, low energy consumption, low noise, no commutation spark interference, no carbon brush mechanical abrasion, Stability and other advantages. It improves the working environment of laboratory testers and is an upgraded product that is more suitable for laboratory use.
Features
1. Using high-performance three-phase asynchronous motor as the drive motor, it has the advantages of large Power, small vibration, stable Rotation speed, low noise and variable frequency speed, large starting torque, high operating efficiency, low energy consumption, low noise, no commutation spark interference, brushless mechanical abrasion, Stability
2. One machine is multi-purpose, which can realize dispersion, grinding, stirring and mixing
3. Simple operation, easy disassembly of the working head; equipped with dispersion disc and sand disc
4. Closed work, reducing volatilization and splash pollution, easy to clean
5. Modular design, unique internal quality; easier maintenance
6. Frequency conversion digital display Dynamic Rotation speed control, frequency conversion control
Principle
Using high-performance three-phase asynchronous motor as the driving motor, the Rotation speed can be adjusted within the range of 0-8000/rpm through frequency conversion speed regulation, so as to realize the functions of material dispersion, grinding, stirring and mixing.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Install the appropriate work head (dispersion disc or sand disc)
2. Put the material into the Mixing Tank
3. Rotation speed required
4. Start the equipment for dispersion, grinding, mixing or mixing operations
5. Turn off the device after the operation is completed
6. Remove the working head for cleaning
Notice
• Material viscosity should be ≤ 300000 cps
• Processing capacity range 200ml-20000ml (water level standard)
• Operating voltage AC 220V/50/60 Hz
• Make sure the working head is firmly installed before use
• Pay attention to safety protection during operation
• Regular equipment maintenance
