$ 8359.00Ex works
Adopt double planet stirring structure, revolution speed 0-48rpm, rotation speed 0-96rpm, with the wall scraper to ensure that the material has no dead angle mixing, support vacuum degassing and heating chill down function.
Category : Laboratory Mixer
Brand : MuXuan
SKU : NB034992
Service :The delivery and service By NBCLab.Com

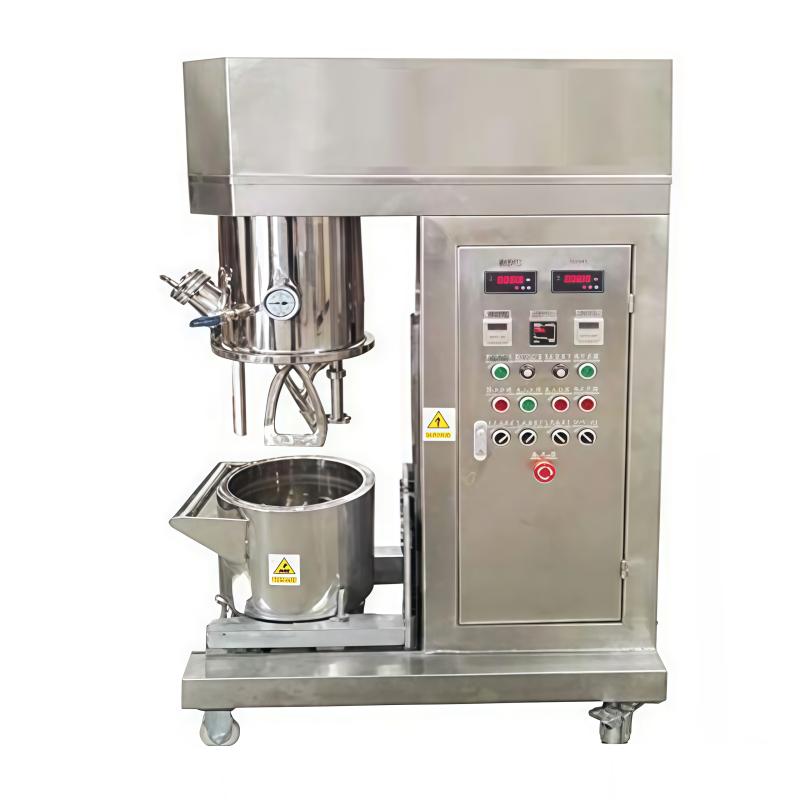

MUXUAN XJ-5L Planet Stirrer is a multifunctional double planetary mixing equipment, suitable for electronic Stock, lithium ion battery slurry, gluing agent, mold glue, silicone sealant, organosilicone, polyurethane sealant, anaerobic glue, pigment, inks, ointment and other electronic chemical, building materials, pesticides, food industry liquid and liquid, solid and liquid materials mixed reaction dispersion dissolved emulsification and other physical and chemical reactions.
1. Adopting a double-planet stirring structure, Stirrer rotates at the same time as revolution, achieving efficient mixing 2. Equipped with high-speed toothed dispersion disc, Rotation speed can reach 0-2000rpm, providing strong shear force 3. Built-in wall scraper, effectively remove the material attached to the barrel wall 4. The kettle body adopts a special sealing structure, which supports pressurization and vacuum operation 5. Hydraulic lifting of the cylinder head, the cylinder block can be moved freely, and the operation is convenient 6. Impeller and drawdown blades can be completely separated from the cylinder for easy cleaning 7. Mixing Tank supports oil, water circulation heating or chilling down, and can also use steam heating 8. Adopt frequency conversion speed control, Rotation speed adjustable range
The stirring anchor running at low speed makes the material flip up and down, shear and mix in a closed container, and the tooth-shaped dispersion disc running at high speed produces strong impact and shear with the mixed material. While the Stirrer rotates around the axis of the kettle body, it rotates around its own axis at different Rotation speeds, so that the material does complex movements in the kettle body and is subject to strong shearing and mixing. The wall scraper rotates around the axis of the kettle body, scraping off the material stuck to the wall to participate in mixing. The kettle body adopts a special sealing structure to pressurize and vacuum, which has a good exhaust defoaming effect.
Electronic chemical industry, building materials, pesticides, food industry
1. Put the material into the mixing drum 2. Set heating or chilling down parameters as needed 3. Adjust the Stirring Rotation speed and Dispersion Rotation speed to the desired value 4. Start the equipment to mix and stir 5. If vacuum operation is required, start the vacuum system 6. After mixing, raise the cylinder head through the hydraulic system 7. Remove the cylinder block for unloading 8. Clean the equipment and prepare it for next use
• Operating voltage of the equipment is 380V/50Hz/3Phase, ensure that the power supply matches • Check whether the installation of each component is firm before operation • Pay attention to the pressure gauge indication during vacuum operation • Pay attention to temperature control when heating to avoid overheating • Make sure the power is disconnected when cleaning • Regularly check the gear reducer and vacuum pump operation status • The total Power of the equipment is about 6kw, which needs to be equipped with corresponding power supply facilities
