Overview

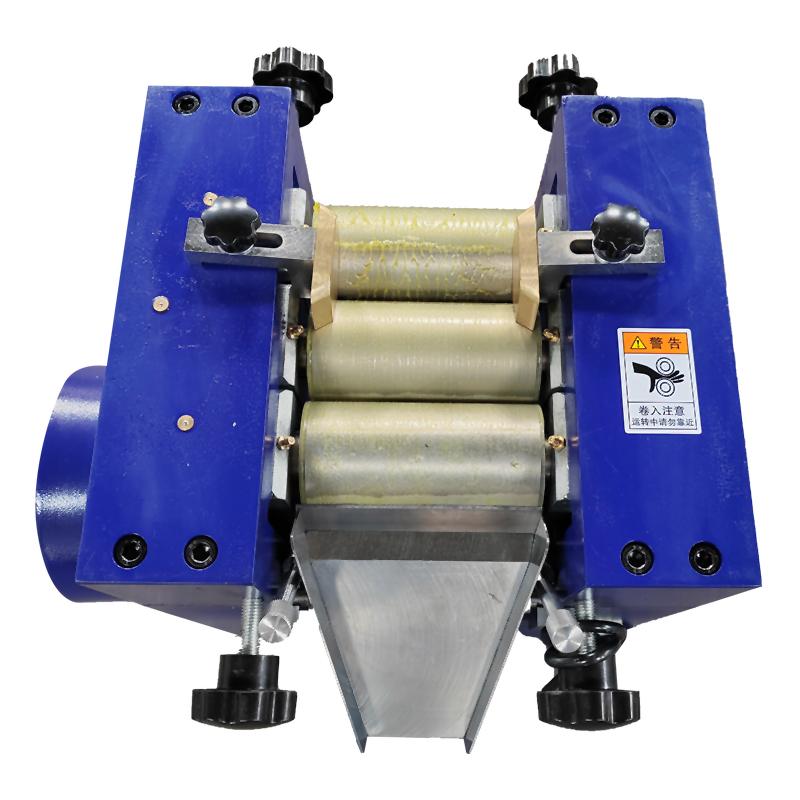

MUXUAN S65-1 type laboratory Three-roll grinder is suitable for pastes or high viscosity materials that need to be dispersed and require high fineness. By pressing each other on the surface of the three horizontal rollers, the distance between the rollers is adjusted by hand, and the friction is achieved at different speeds. The grinding effect is achieved. It is equipped with an emergency brake button to prevent foreign body damage equipment. The rollers can be made of special cemented carbide or pure zirconia.
Features
1. Wide range of application: the roll can be adjusted according to the viscosity of the material, suitable for high, medium and low viscosity products.

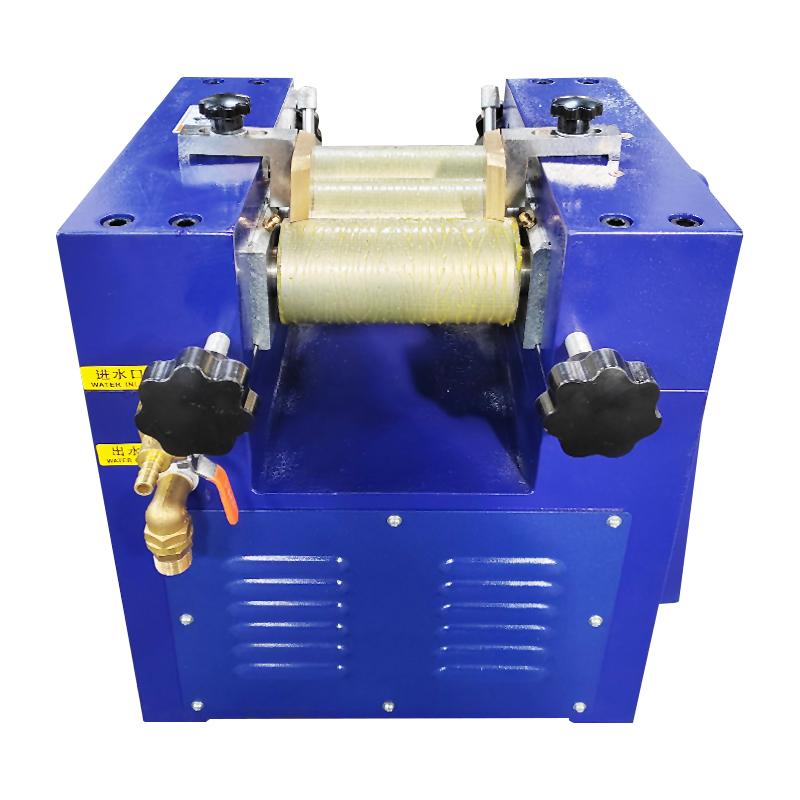

2. Temperature rise small product stability: The roller can be chilled down with water to ensure good chilling down effect and product quality.
3. Strong non-standard: explosion-proof equipment can be customized, and roller materials can be customized for ceramic materials such as zirconia and aluminum oxide.
Principle
The laboratory Three-roll grinder consists of three rollers, which are installed on a rack and directly driven by an electric motor. The front roller rotates forward, the middle roller rotates backward, the front roller Rotation speed is fast, and the rear roller Rotation speed is slow. The middle roller is fixed, and the front and rear rollers are installed on the slide to adjust the distance from the middle roller through the handwheel. The material enters between the rear roller and the middle roller, and the squeezed particles are tapered and carried out by the fast roller. The end drawdown blade separates the material into the collection bucket.
Applications
Offset ink, Chocolate, Lithium Battery Stock, Electronic Glue, Silver Aluminum Paste, inks, colorants, Adhesives, Biology, Food, Cosmetics, Coatings, Photovoltaic Materials
Steps
1. Adjust the middle protrusion of the roller according to the viscosity of the material.
2. Use the handwheel to adjust the distance between the front and rear rollers and the middle rollers.
3. Start the equipment and enter the material between the rear and middle rollers.
4. The material is extruded and ground by the fast roller.
5. Use a drawdown blade to separate the material from the roller and fall into the collection bucket.
Notice
The viscosity of the material shall not exceed 3,000,000 cps.
• When the equipment is running, pay attention to prevent foreign objects from falling into it.
• Use the brake button in an emergency.
• Temperature can be chilled down as needed.
• Roller material can be customized according to material characteristics.
