Overview

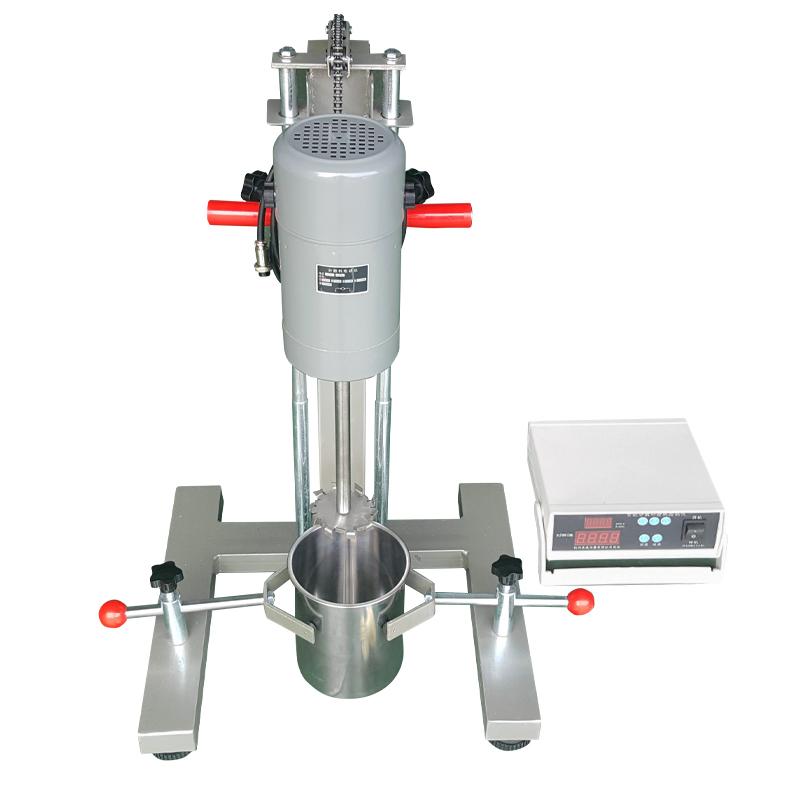

FS-1000D high-speed laboratory Disperser is a new high-performance product developed by QIWEI brand according to the development trend of international professional dispersion equipment. The equipment integrates the functions of dispersion and stirring, and completes the dispersion and homogenization process through machines and containers. It has the characteristics of high efficiency, good mixing effect, convenient cleaning, and simple and convenient manual lifting. It is widely used in the dispersion and stirring of liquids in factories, scientific research institutes, Universities & colleges, and institutions.
Features
1. Adopt electronic constant force speed line, digital direct display of shaft Rotation speed
2. Equipped with dispersed impellers and grinding discs to adapt to different laboratory test requirements
3. According to the swirl/spin axis display speed, the linear velocity and material viscosity of the stirring, dispersing, grinding disc can be directly calculated
4. Pillar shape is square column, Motor Power 1100W
5. Processing capacity 2~ 5kg, maximum processing viscosity 15000mPa.s
6. Speed range 100~ 8000rpm
7. The controller is a digital display control instrument, optional timing control instrument
8. Standard 1.5L Mixing Tank, optional 2.5L single-layer Mixing Tank, 5L double-decked Mixing Tank
Principle
Driven by the high-speed operation of the motor, the dispersing head generates a high-speed tangential straight line, which causes the material to produce strong hydraulic shearing and high-frequency mechanical effects under the action of huge centrifugal force. Fluid materials withstand thousands of shearing and high-frequency mechanical effects per minute, thus achieving effective mixing, dispersion and homogenization effects. The relationship between the rate of chemical reaction and the rate of chemical reaction provides the correct process data for large-scale production.
Applications
Dispersion and mixing of liquids in factories, research institutes, Universities & colleges, institutions, etc
Steps
1. Preparation of Materials and Mixing Tanks
2. Select dispersed impeller or mill according to test requirements
3. Set the required Rotation speed (100~ 8000rpm range)
4. Start the equipment to disperse and stir
5. Observe the digital display shaft Rotation speed
6. Clean the equipment after completing the operation
Notice
• Make sure the equipment is firmly installed before use
• Processing capacity (2~ 5kg) according to material viscosity
• Note that the speed range is operated within 100~ 8000rpm
• Regular inspection of dispersed impellers and grinding disc status
• Clean the equipment in time after the operation is completed
• Optional timing control instrument needs to be set according to the instructions
