Overview

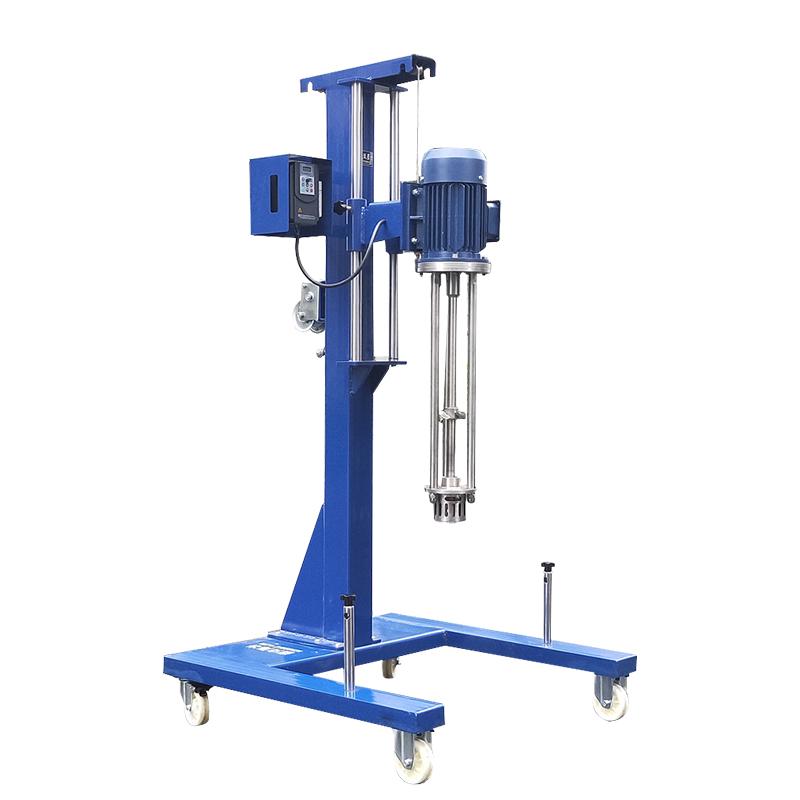

The QIWEI JRH3000 manual lift Mulser adopts a specially designed rotor and stator under the high-speed drive of the motor, and through high-frequency mechanical effects, the material is subjected to strong shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the stator-rotor gap.
Features
1. Adopt hand lift method, easy and flexible operation
2. Equipped with motor and smart frequency controller to achieve stepless speed regulation
3. Application of digital PID technology, high control accuracy
Principle
Mulser drives the specially designed rotor and stator through the motor at high speed, and sucks the processed material into the rotor area. Under the action of high-frequency mechanical effects generated by high-speed swirl/spin, the material undergoes strong mechanical and hydraulic shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap of the stator and rotor, and bears hundreds of thousands of shears in a short time, so as to achieve instantaneous uniform fine emulsification, crushing and dissolving of insoluble materials.
Applications
Gluing agents, paints, cosmetics, food, products, plastic Resin, printing and dyeing, inks, asphalt
Steps
1. Loosen the safety buckle of the hand switch
2. Shake the handle to the desired height
3. Tighten the safety buckle to fix the position
Notice
• Power supply voltage 380V 50HZ before operation
• When lifting, you need to loosen the safety buckle first, and tighten it immediately after adjusting it in place
• Device weight up to 140Kg, ensure smooth placement
• Check if Lift Travel is within 720mm before use
• Rotation speed adjustment should be operated within the specification range of 60~ 2800rpm
