Overview

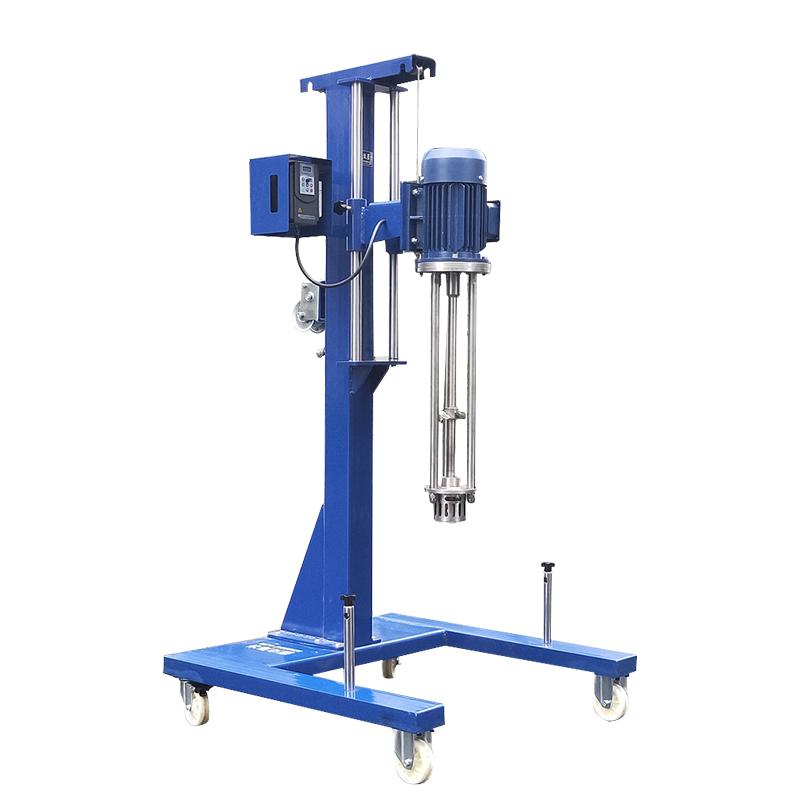

QIWEI JRH2200 electric lift Mulser adopts a specially designed rotor and stator under the high-speed drive of the motor, through high-frequency mechanical effects, the material is subjected to strong shearing, centrifugal extrusion, liquid layer friction, high-speed impact tear and turbulence in the precision gap of the stator and rotor.
Features
1. Using electric lifting mode, lifting Travel up to 600mm, easy to operate
2. Equipped with motor and smart frequency controller to achieve stepless speed regulation
3. Application of digital PID technology, high control accuracy
4. Working head specification φ 90mm, Speed range 60~ 2800rpm, adaptability
5. Power 2.2KW, Power supply voltage support 220V/380V 50HZ, good versatility
Principle
Mulser in the motor driven at high speed, through the special design of the rotor and stator of the material sucked into the rotor, the rotor high-speed swirl/spin produced by the high-frequency mechanical effect, so that the material in the rotor precision gap under strong mechanical and hydraulic shear, centrifugal extrusion, liquid friction, high-speed impact tearing and turbulence and other comprehensive effects, in a short time through hundreds of thousands of shears, to achieve emulsification of materials, crushing and dissolving.
Applications
Gluing agents, paints, cosmetics, food, products, plastic Resin, printing and dyeing, inks, asphalt
Steps
1. Loosen the safety buckle of the hand switch
2. Shake the handle to the desired height
3. Tighten the safety buckle to fix the height
