Overview

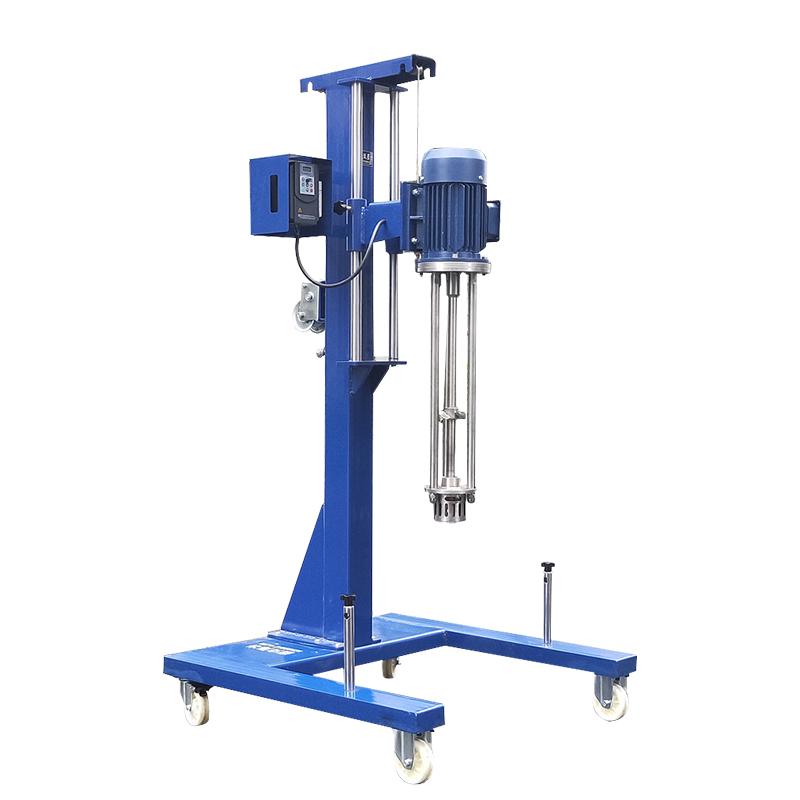

QIWEI JRH3000 electric lift Mulser adopts a specially designed rotor and stator under the high-speed drive of the motor, through high-frequency mechanical effects, the material is subjected to strong shearing, centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence in the precision gap, etc., to achieve instant uniform and fine emulsification, crushing and dissolving effects. The machine adopts electric lift mode, and realizes stepless speed regulation through smart frequency conversion controller, and applies digital PID technology to ensure high control accuracy.
Features
1. Adopt electric lifting mode, easy to operate
2. Equipped with smart frequency conversion controller to achieve stepless motor speed regulation
3. Application of digital PID technology, high control accuracy
4. Working head specification φ 90mm, Speed range 60~ 2800rpm, adapt to a variety of material processing needs
5. Travel 720mm, mixing rod length 780mm, providing flexible working interval
Principle
Mulser is driven at high speed by the motor, sucking the material into the rotor through the specially designed rotor and stator, and using the high-frequency mechanical effect generated by the high-speed swirl/spin of the rotor, the material is subjected to strong mechanical and hydraulic shearing in the precise gap of the stator and rotor. Centrifugal extrusion, liquid layer friction, high-speed impact tearing and turbulence, etc., experience hundreds of thousands of shears in a short time, so as to achieve instant uniform fine emulsification, crushing and dissolving of insoluble materials.
Applications
Gluing agents, paints, cosmetics, food, products, plastic Resin, printing and dyeing, inks, asphalt
Steps
1. Loosen the safety buckle of the hand switch
2. Shake the handle to the desired height
3. Tighten the safety buckle to fix the height
4. Rotation speed set by smart variable frequency controller
5. Start the equipment for material handling
