Overview

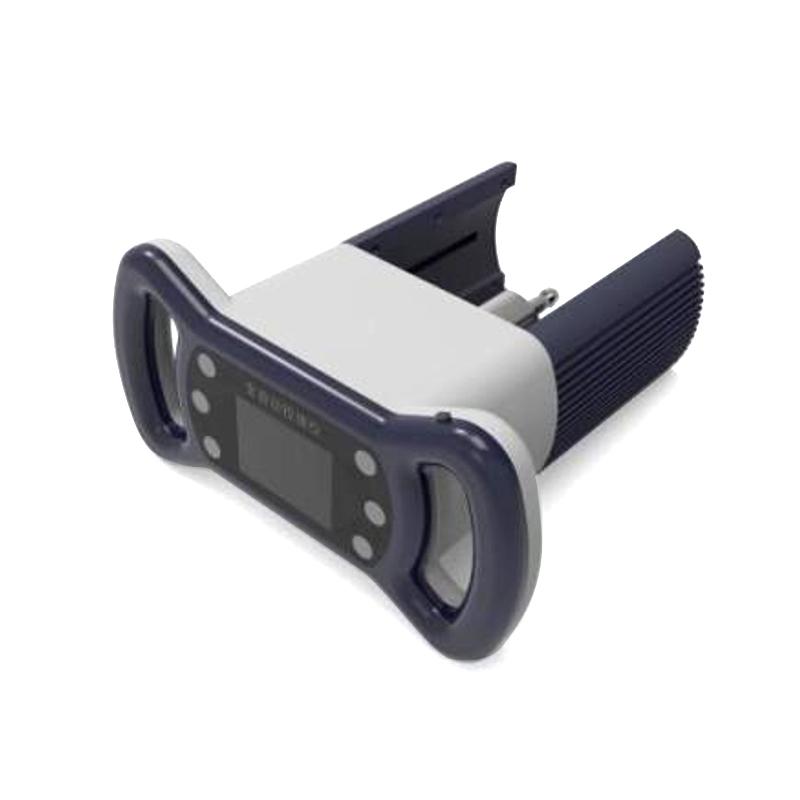

RJLB-10 automatic drawing instrument is a new type of testing instrument, which is suitable for the detection of the pulling force of rivets in fixed thermal insulation materials in construction projects, the bonding strength of wall thermal insulation materials, the bonding strength of exterior facing bricks, various plates and paints, paints and other materials. The instrument adopts mechatronics design, and the whole set of instruments is a whole, including motor transmission, Sensor, screw, reaction support and other mechanical parts. At the same time, the measurement display circuit is embedded in the instrument, which can directly observe the data.
Features
1. Integrated design, light weight, portable.
2. Embedded measurement display circuit, real-time display of measurement data, easy to use.
3. Touchscreen control, friendly Interpersonal Operating interface.
4. Automatic test and breaking type judgment, easy to use.
5. Peak hold function for easy data recording.
6. Multi-point force value correction, the data is more accurate.
7. Powered by lithium batteries, convenient for outdoor use.
Principle
The instrument is equipped with Travel Limit and Positive and Negative Force Overload Protection function. It adopts Stepper Motor Drive and High Accuracy External S-type Sensor to realize the detection process with adjustable Test speed and high load Measurement accuracy.
Applications
Factories, construction engineering mass inspection stations, construction companies, product mass inspection institutes, scientific research institutions, road and bridge sites, etc
Standards
JGJ144-2019 "exterior insulation engineering technical standard", JG158-2013 "rubber powder polystyrene particles exterior insulation system", JG149-2006 "expanded polystyrene board thin plaster exterior insulation system", JGJ110-2017 "construction engineering veneer brick strong bond inspection standard", JGJ126-2015 "exterior veneer brick engineering construction and acceptance regulations"
Notice
• Travel limit and positive and negative force value overload protection function are provided inside the instrument
• Make sure the power supply is sufficient before use, and the lithium battery power supply is convenient for outdoor use
• Test speed adjustment range is 0.1mm/min~ 50mm/min
• Keep Sensors Clean to Ensure Measurement accuracy
• Avoid exceeding the maximum pulling force of 10kN
