Fungilab Viscolead One L Rotational Viscometer dynamic viscosity measurement 0.3-100 rpm

Name: Fungilab Viscolead One L Rotational Viscometer dynamic viscosity measurement 0.3-100 rpm
Brand: Fungilab
SKU: NB035121

Please contact customer service

With 18 speed Rotation speed control and 0.3-100 rpm range, automatic calculation range, support user-defined calibrate, Repeatability up to +/- 0.2% F. S, accuracy +/- 1% F. S, can measure 1~ 2000000mPa · s viscosity.

Model

Get Quote

Category : Rotational Viscometer

Brand : Fungilab

SKU : NB035121

Service :The delivery and service By NBCLab.Com

Overview

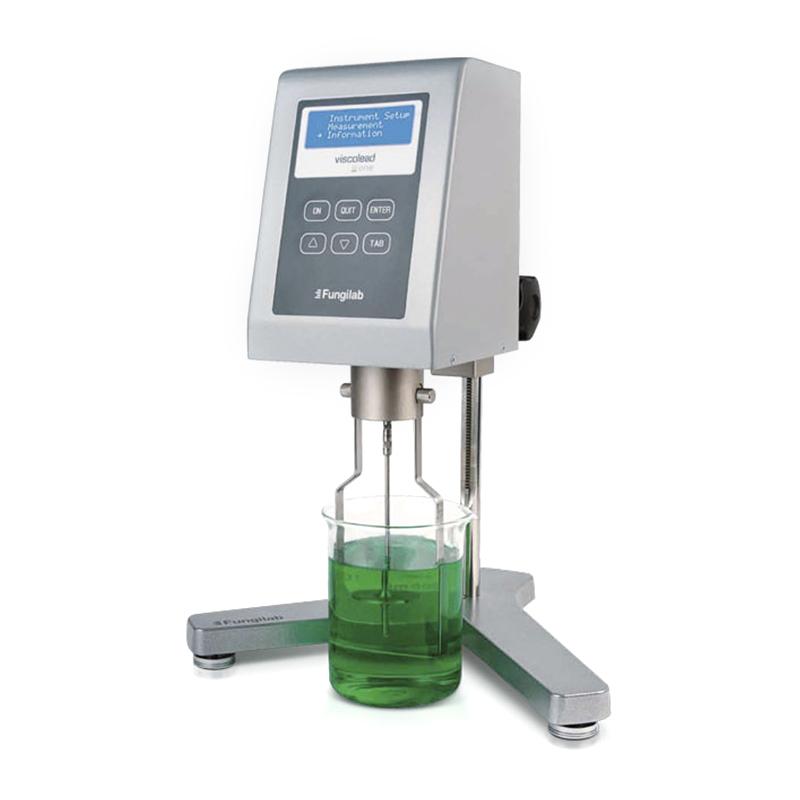

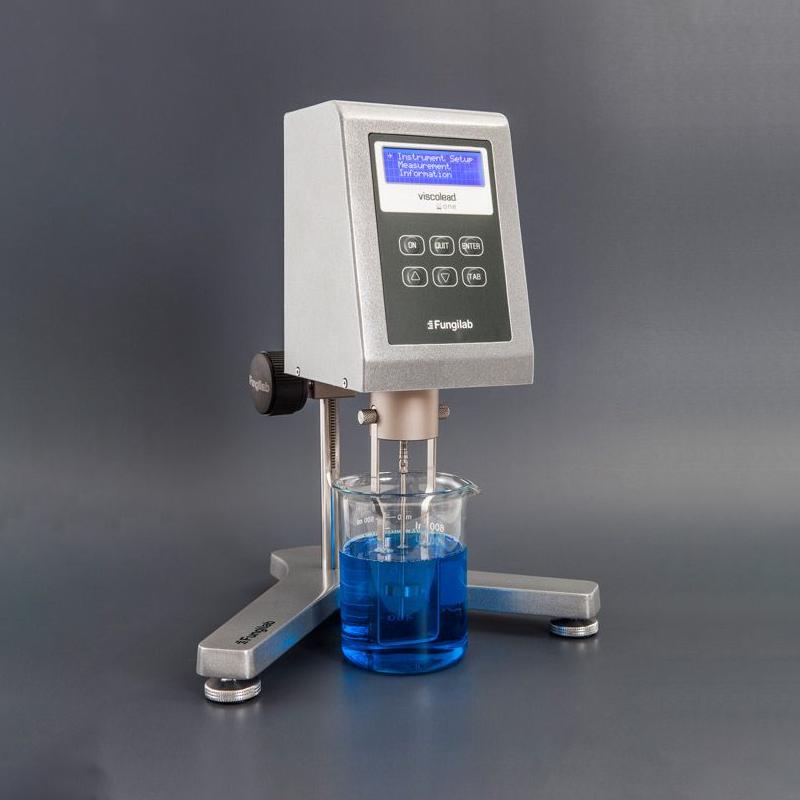

The Fungilab Viscolead One L is a rotational viscometer for the dynamic viscosity measurement of liquids. The instrument features a digital display that automatically calculates ranges and supports user-defined calibrations for accurate measurements across a wide range of viscosity ranges.

Features

1. Rotation speed, rotor, viscosity and full scale percentage 2. measurement of dynamic viscosity 3. Support SI unit system and CGS unit conversion 4. Self-check function, with sound and light alarm reminder 5. Automatically calculate the maximum range of the selected rotor and Rotation speed combination 6. User-defined viscosity calibrating 7. Available in 10 languages 8. Equipped with an ultra-low viscosity adapter, the minimum viscosity can reach 0.9cp.

Principle

The rotational viscometer calculates dynamic viscosity by measuring swirl/spin resistance of the rotor in the liquid. After the user selects the rotor and Rotation speed combination, the instrument automatically determines the range and displays the viscosity value.

Applications

Chemical, food, pharmaceutical, petroleum, paint, scientific research laboratories

Standards

Calibrated certificate

Steps

1. Connect the power supply and turn on the instrument 2. Select rotor and Rotation speed combination 3. The instrument automatically calculates the range 4. Perform viscosity measurement 5. Review the displayed viscosity data

Notice

• Make sure the instrument is leveled before use • Choose the appropriate rotor and Rotation speed according to the sample viscosity Regular self-testing and calibrating • Avoid use beyond the range • Power supply voltage matching 100-240VAC

Display mode
push-button digital display
Rotor specification
4 L-shaped
Rotor speed
0.3~ 100 rpm (18 stops)
Repeatability
0.2%
Measurement accuracy
±1% FS
resolution
With LCP Low Viscosity Adapter (optional): 0.01 cP, 0.1 cP when viscosity is below 10000 cP, 1 cP when viscosity is above 10000 cP
Power supply Voltage
100-240 VAC, 50/60 HZ

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
