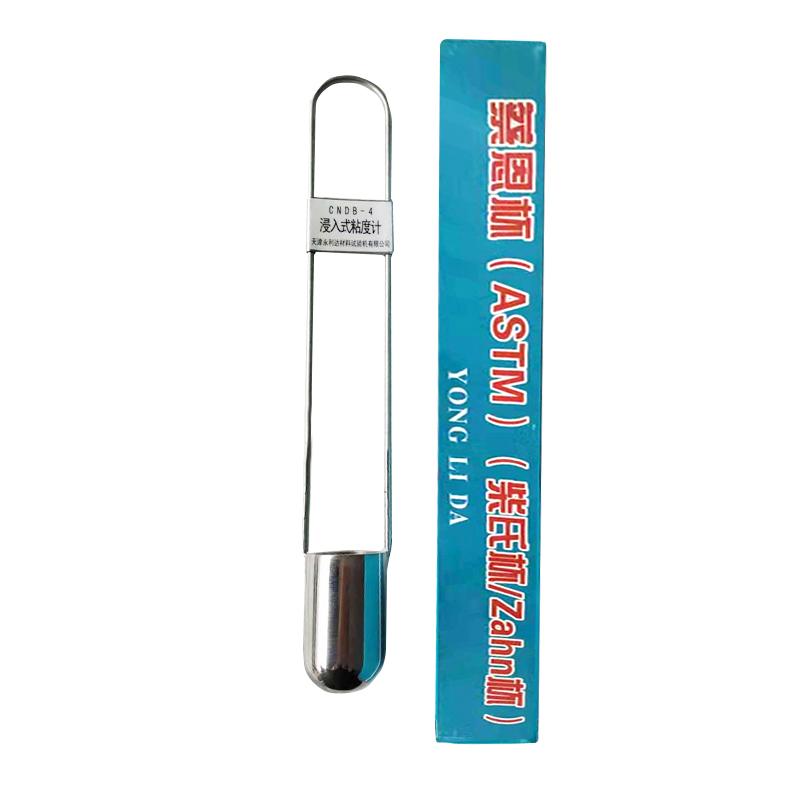

YONGLIDA CSB-1 Zahn Cup Immersion viscosity Cup Stainless steel material 2mm aperture

Name: YONGLIDA CSB-1 Zahn Cup Immersion viscosity Cup Stainless steel material 2mm aperture
Brand: YongLiDa
SKU: NB003515
Price: 133.0 USD
Availability: InStock

$ 133.00Ex works

Immersion design, 2mm outflow aperture, viscosity measurement range 5~ 60cSt, stainless steel material, ASTM D4212 standard, correction factor 0.95~ 1.05.

Model

CSB-1

Get Quote

Category : Viscosity Cup

Brand : YongLiDa

SKU : NB003515

Service :The delivery and service By NBCLab.Com

Overview

The YONGLIDA CSB-1 Zahn Cup (Immersion) is a portable, immersion viscosity cup that meets ASTM D4212-93 Standard Test Method for Immersion Viscosity Cups for testing the viscosity of Newtonian or near-Newtonian liquids.

Features

1. Portable immersion design for easy operation 2. Made of stainless steel, including cup body, filter and handle 3. The viscosity measurement range is 5~ 60cSt 4. The diameter of the flow hole is 2mm and the capacity is 44ml. The correction factor range is 0.95 to 1.05. 6. Ambient Temperature Requirement is 25 +/- 0.2 ℃

Principle

CSB Zahn Cup calculates viscosity by measuring the time it takes for a liquid to flow out of a standard pore size under specific conditions, and performs viscosity testing of Newtonian or near-Newtonian liquids based on the ASTM D4212 standard method.

Applications

Viscosity testing, liquid performance testing

Standards

ASTM D4212-93

Steps

1. Immerse the viscosity cup into the liquid to be tested 2. Ensure that the Ambient Temperature is controlled at 25 +/- 0.2 ℃ 3. measurement of liquid flow time from the flow hole 4. Calculate viscosity values based on outflow time and correction factor

Notice

• Only suitable for Newtonian or near-Newtonian liquids • Ensure that the Ambient Temperature meets the requirements of 25 +/- 0.2 ° C before use • Keep the flow hole clean to avoid blockage • Pay attention to the application of correction factors when using • Avoid use beyond Measurement range

Viscosity Range
5~60 cSt
flow hole diameter
2mm
capacity
44 ml
Cup body material
stainless steel
Handle material
stainless steel
Applicable standard
ASTM D 4212
Ambient Temperature
25±0.2 ℃
certificate
without
correction factor
0.95~1.05

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
