$ 2643.00Ex works
Rotation speed up to 3000 rpm, Processing capacity ≤ 6m ³/h, using three-stage stator structure to achieve strong impact and shear, double-end mechanical sealing design to ensure no leakage, jacket chill down to support long-term operation.
Category : Emulsifying Machine
Brand : MuXuan
SKU : NB035237
Service :The delivery and service By NBCLab.Com

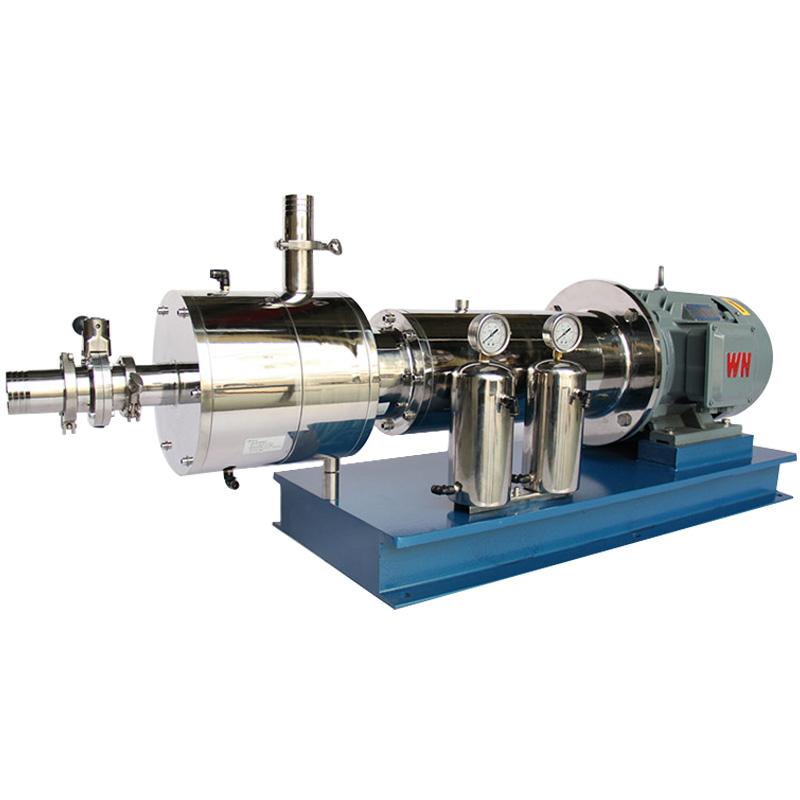

The MUXUAN three-stage emulsification pump (model MXR-4-3) is a pipeline-type high-shear homogeneous Mulser, suitable for continuous production or cyclic processing of fine materials. The equipment drives the rotor to run at high speed through the motor, and uses mechanical external force to narrow the particle size of liquid-liquid and solid-liquid materials to achieve uniform distribution. It achieves the effect of refining and homogenizing and dispersing emulsification to form a stable emulsion. The equipment has low noise, smooth operation and no dead ends. The material is 100% dispersed and shears, and has the function of short-distance and low-lift transportation.
1. Strong self-priming ability, continuous dispersion emulsification effect is good. 2. Rotation speed can reach 3000 rpm, which can be adjusted by energy-saving and environmentally friendly frequency converter. 3. Stainless steel body design and manufacture, optional SIEMENS motor, optional stainless steel motor cover. 4. The rotating stator is made of CNC machining of whole forging material, with high accuracy and high line speed. 5. Double mechanical sealing design, no leakage, reduce maintenance costs; jacket chilled down design makes the machine can run for a long time. 6. Various connection methods can be provided according to actual needs (such as flanges, quick connections, etc.), products can be customized for special pressure and temperature environments, and imported pressure buffering and mechanical sealing water shortage protection systems can be selected.
The three-stage pipeline type high-shear Mulser adopts a horizontal structure, and the working chamber is equipped with three groups of rotating stators. It can be designed as a single-stage two-layer or single-stage six-layer mechanism, and the rotating stator is dual-coupled and highly coordinated. The motor drives the intermediate shaft to run at high speed to form a vacuum, and the material is sucked from the inlet to turn the stator chamber. The high linear speed of the rotor causes the material to experience strong impact, crushing, centrifugal extrusion, liquid layer friction and shearing in the gap and then fly out. Under the action of various forces, a strong turbulence is generated, which flows out from the outlet and can be operated for multiple cycles.
Dispersion and emulsification homogenization of materials for biological, food, coatings, inks, Spinning & weaving aids, cosmetics, lubricating oils, pesticides and other industries; applicable materials include solutions, colloids, suspensions or emulsions formed by mixing solids and liquids, liquids and liquids, such as juice, soup, dairy tissue homogenate, cosmetics, surfactants, asphalt, emulsifying agents, oilfield chemicals, etc.
GB/T 9112
1. Installation equipment: Fix with concrete base or expansion screws according to the site. 2. Connect materials: Connect the inlet (DN40) and outlet (DN32) through flange connection to ensure that the import and export meet the standards. 3. Start the equipment: Connect the power supply (input voltage 380V/50Hz), start the motor, and drive the rotor to run at high speed. 4. Material handling: Materials are sucked from the inlet, dispersed, shearing and emulsification are carried out in the rotating stator cavity, and flow out from the outlet. 5. Cycle operation: Multiple cycles can be performed to achieve the desired emulsification effect. 6. Monitor operation: Use a chill down system (such as mechanical sealing independent chill down) and a water shortage protection switch to ensure the safe operation of the equipment.
• For high viscosity material applications, an independent feed pump should be used. • For low-viscosity materials, the equipment has low-lift, short-distance transportation capabilities. • Mechanical sealing adopts Water-Cooled type to ensure the normal operation of the chilled down system to avoid overheating. • Pay attention to the import and export direction (forward, up and out) when installing, and meet the connection standards. • Optional water shortage protection system, linkage host Control system to achieve water shortage shutdown protection to prevent equipment damage. • Regularly check rotating stator abrasion to ensure accuracy and performance.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
