Overview

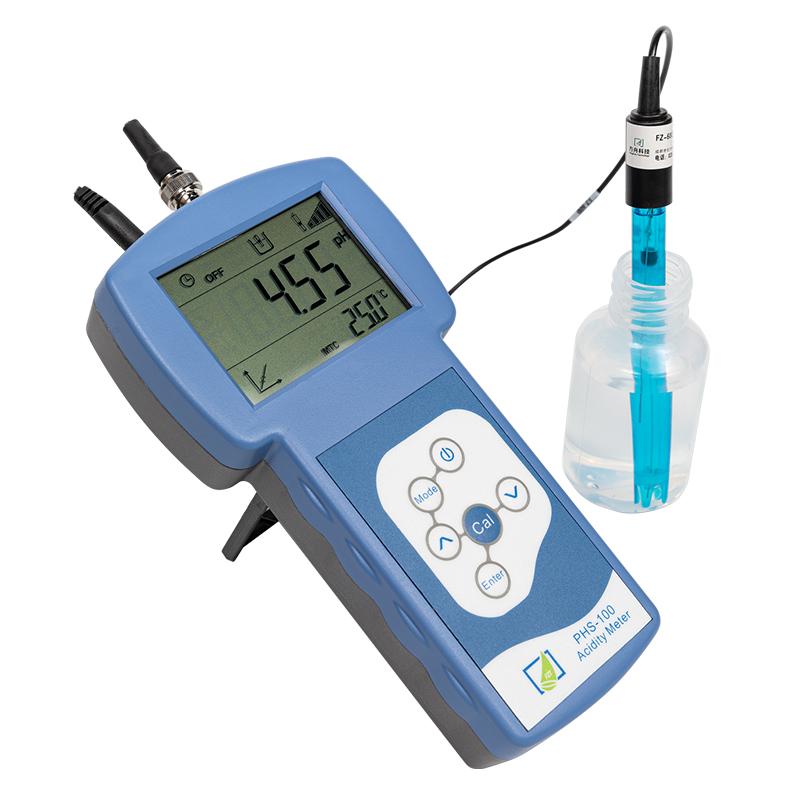

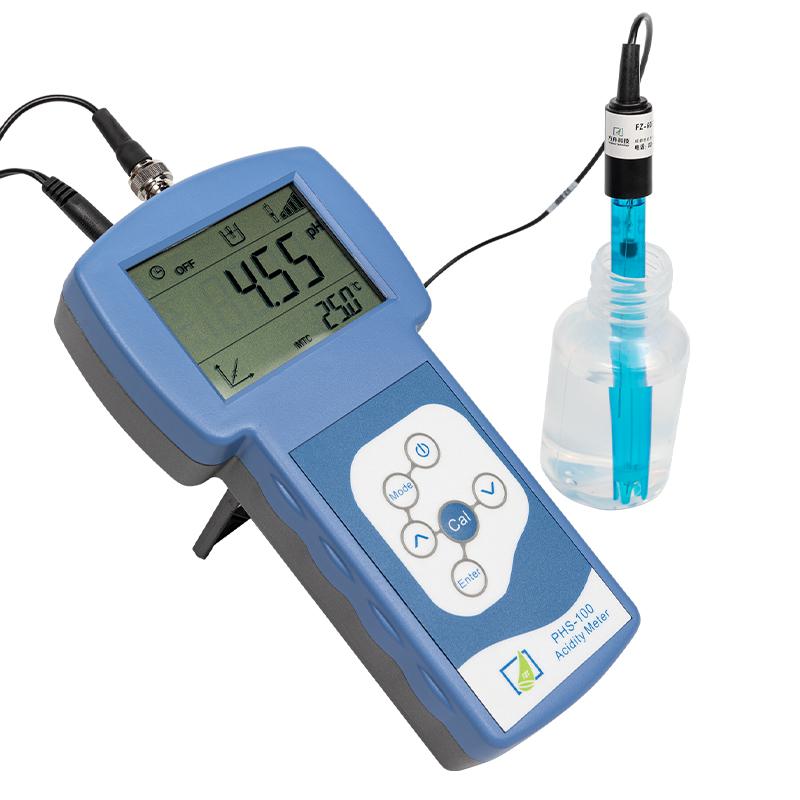

The FANGZHOU PHS-100 Portable acidity meter is a High Accuracy measuring instrument with a 0.001pH/0.1mV high resolution design for accurate measurement of ph value, mV, ORP, T value and Ion concentration. The instrument adopts an integrated design, no moving parts, imported key components, reliable product mass, simple operation, programmed design, anti-corrosion and waterproof, adaptable to harsh measurement environment, Portable design is easy to use in the field.
Features
1.0.001pH/0.01mV High Accuracy resolution, ≥ 3 × 1012Ω High Input Impedance Design
2. Anti-corrosion and waterproof design, adapt to harsh measurement environment

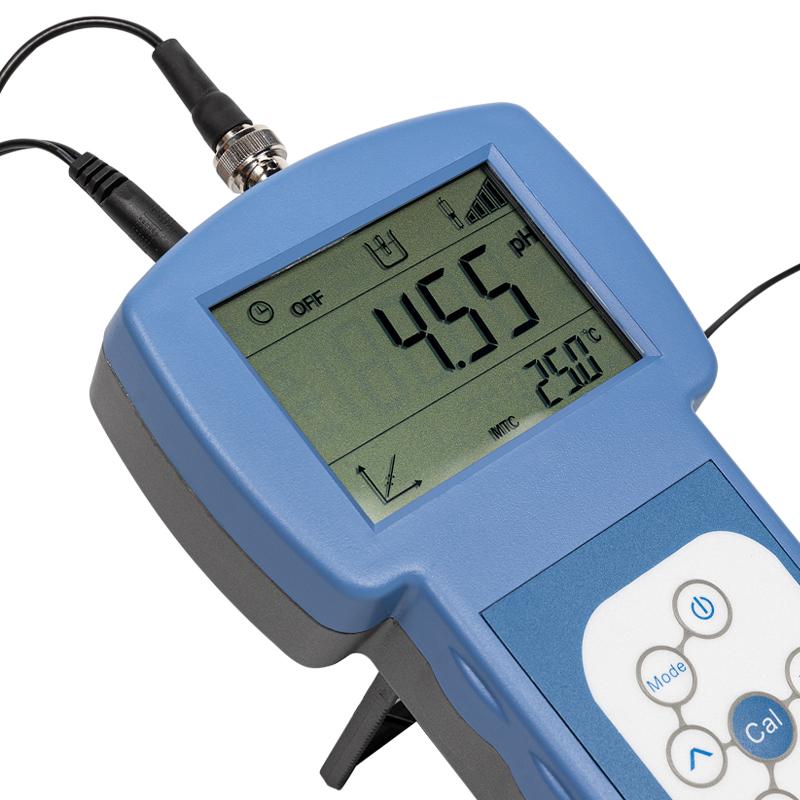

3. Liquid crystal display, membrane buttons, microprocessor control, programmed design
4. Ergonomic design, easy and fast to use in the field
5. AC/DC dual-use power mode, Portable instrument
6. Able to measure pH, mV, ORP, T value of solution
7.3 point automatic correction, automatic identification buffer
8. Power-off protection, automatic storage of instrument calibration data, can store 200 sets of measurement data
9. Automatic delay shutdown, factory default setting is 15 minutes
10. With signal equilibrating function, improve instrument Response speed and shorten data Stabilization time
11.ATC automatic identification, manual/automatic temperature compensation
12. Optional dedicated Electrode converter to adapt to a variety of interfaces and specifications of Electrode
13. Optional Ion selective electrode for accurate Ion concentration measurement
Principle
The instrument is based on a high-input Impedance design (≥ 3 × 1012 Ω) and microprocessor control. Signals are collected through the Electrode interface and the temperature interface, and pH, mV, ORP and temperature measurements are performed using programmed algorithms. Response speed is improved with signal equilibrating function, and measurement accuracy is ensured through automatic temperature compensation (ATC) and buffer automatic identification.
Applications
Environmental protection, agricultural products, disease control, wastewater treatment, universities and scientific research
Standards
Chinese buffer standards (PH4.00, PH6.86, PH9.18)
Steps

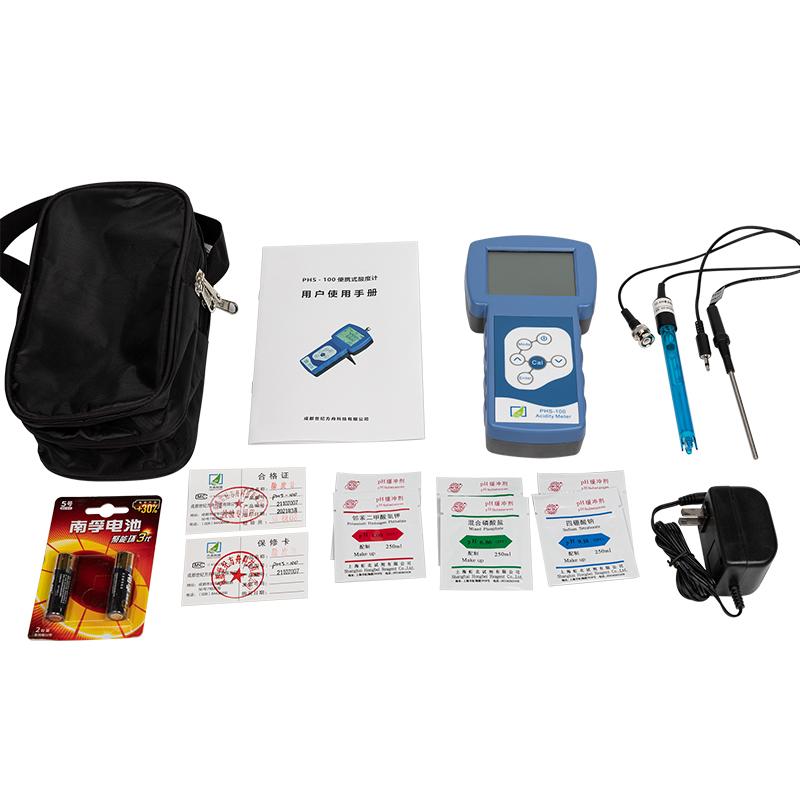

1. Install 2 AA alkaline batteries or connect to a general power supply (DC5V, 300mA, internal positive and external negative)
2. Electrode and temperature sensor
3. Measurement mode (pH, mV, ORP or temperature) after power on
4. Perform 1/2/3 point calibration, the instrument automatically recognizes the buffer
5. Electrode immersion in the test solution for measurement
6. The instrument automatically stores measurement data, up to 200 sets can be stored
7. After use, the instrument will automatically shut down after 15 minutes
Notice
• Make sure the Electrode interface and temperature interface are connected correctly before use
Standard buffers (PH4.00, PH6.86, PH9.18) are required for calibration.
• Pay attention to temperature compensation settings during measurement (automatic/manual)
• Pay attention to waterproof and anti-corrosion when using in the field
• It is recommended to remove the battery when not in use for a long time
• Electrode converter or Ion selective electrode needs to confirm interface compatibility
