Overview

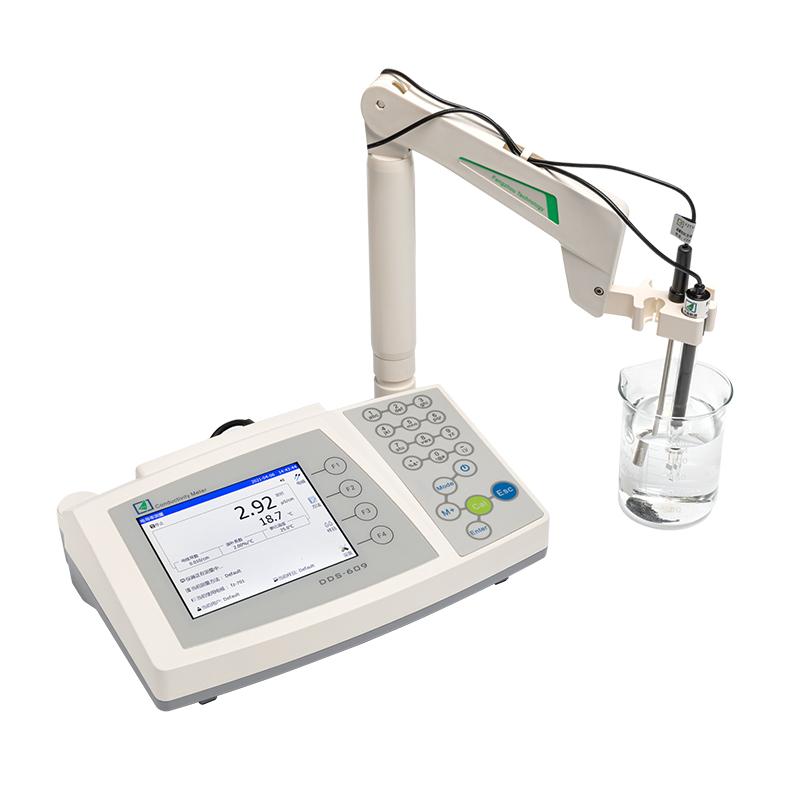

The FANGZHOU DDS-609 High Accuracy Module Conductivity Meter is a professional measuring instrument that uses a large-screen high-resolution color screen and an intelligent Operating system to support Multi-Parameter measurement of conductivity, resistivity, TDS, salinity, Conductivity detector ash and temperature. The instrument has automatic frequency conversion, IP54 Protection Rating and 100,000 data storage capabilities for accurate water quality analysis in laboratories and industries.
Features
1. Large screen high-resolution color screen with backlight adjustment and number/letter/function/menu button operation
2. Multi-Parameter measurement: conductivity, resistivity, TDS, salinity, Conductivity detector ash, temperature
3. Support adjustable reference temperature (5.0~ 25.0) ℃ and adjustable temperature coefficient (0.0~ 10.0) %/℃
4. TDS coefficient is adjustable from 0.1 to 2.00
5. Automatic frequency conversion and 8-speed range automatic switching
6. IP54 Protection Rating Chassis
7. Intelligent Operating system, support Method Management, Electrode Management, Sample Management, Data Management, User Hierarchical Rights Management
8. Built-in 4 GB, 6 international standard Conductivity detector solutions and 1 custom standard solution
9. Support self-diagnosis, power-off protection and measurement alarm limit setting
10. Multiple reading methods: real-time reading, automatic reading, timed reading
11. Multiple temperature compensation modes: no compensation, linear compensation, nonlinear compensation, 3 pure water mode compensation
12. Built-in multiple pure water Measurement modes, with alarm prompt function
13. GLP compliant Data storage and transfer to PC software
Principle
Measurement conditions are adjusted according to user requests by Electrode measurement of sample conductivity. Conductivity detector solution supports Electrode constant calibration. Measurement accuracy is ensured by temperature compensation mode (automatic or manual) and various pure water modes. The intelligence system manages the measurement process, data is automatically stored and output to external software is supported.
Applications
Laboratory water quality analysis, pharmaceutical water testing, electronic grade water monitoring, industrial process control, environment monitoring, pure water system management
Standards
GLP specification
Steps
1. Power on and select Measurement parameters
2. Set the reference temperature, temperature coefficient or TDS coefficient as required
3. Select Electrode Type and calibrate to store Electrode Constant
4. Set the temperature compensation mode and reading mode
5. Electrode immersion in sample begins measurement
6. Review the data and select the output report format
7. Transfer data to the computer via the RS-232 interface
Notice
• For accurate measurement of samples below 10 μS/cm, it is recommended to use a constant of 0.1/0 (with flow groove) Conductivity detector Electrode
• Electrode constants are properly calibrated and stored before operation
• Pay attention to the selection of temperature compensation mode to adapt to different Sample types
• Regularly check the effectiveness of the built-in standard solution
• Ensure stable interface connection during data transmission
User rights management requires setting passwords to ensure data security
