Overview

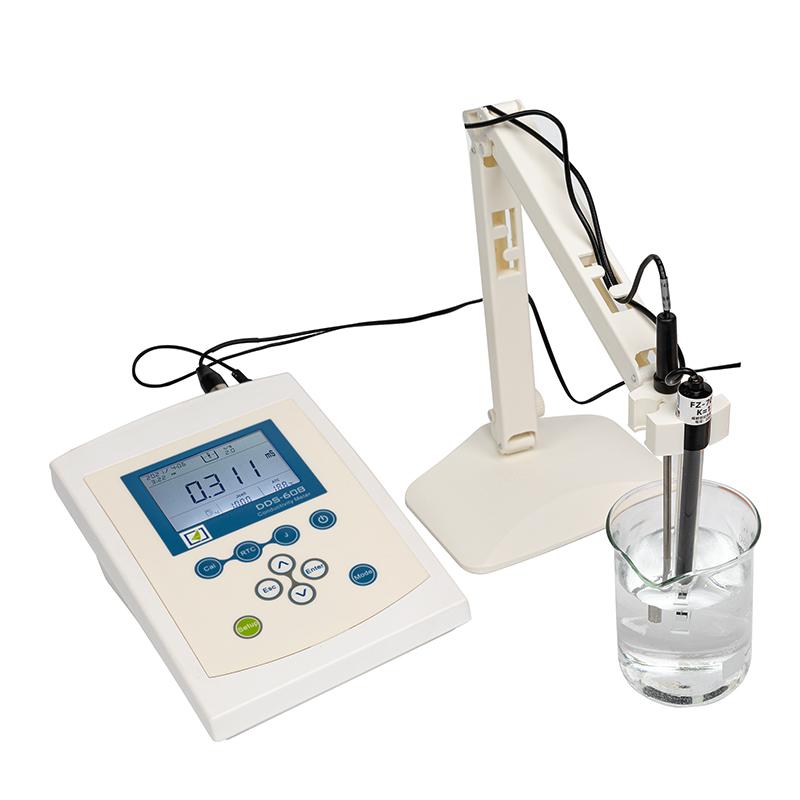

FANGZHOU DDS-608 Intelligent Multifunctional Conductivity Meter is a High Accuracy measuring instrument with an instrument level of 0.5, which can measure conductivity, resistivity, TDS, salinity and temperature. Suitable for power, petrochemical, environment monitoring, disease control, university and scientific research and other fields.
Features
1. Large LCD display with backlight function, make the screen clearer when the rays of light are dark
2. Menu navigation, providing data, status, and operation prompts
3. Multi-purpose machine, supports Multi-Parameter measurement, including conductivity, resistivity, TDS, salinity and temperature value
4. Support adjustable reference temperature, temperature coefficient, TDS coefficient
5. One-click calibration, built-in 4 standard solutions and 1 custom, Automatic calibration Electrode constant
6. Measurement mode: Standard solution measurement method and Conductivity detector constant measurement method
7.7 range automatic conversion, each range with a correction point, with Adjustment, automatic storage of calibrated data
8. Automatic (ATC) and manual (MTC) temperature compensation modes
9. Dual clock and date display, displaying the current time, providing a time reference for data recording functions
10. Can store 4020 sets of data, in line with GLP data management specifications; supports storage, access, deletion and printing
11. Data statistics: The instrument has a built-in software protocol, which directly transfers the stored data to the software text such as Office Excel, Office Word or Notepad of the computer, which is convenient for users to archive the measurement data for statistics, analysis and comparison
Principle
FANGZHOU DDS-608 Intelligent Multifunctional Conductivity Meter measures the conductivity of the solution through the conductivity Sensor and automatically converts it into parameters such as resistivity, TDS, salinity, etc. Automatic or manual temperature compensation mode is used to ensure measurement accuracy. The instrument supports standard solution measurement method and Conductivity detector constant measurement method, and automatically stores calibrated data through built-in Adjustment.
Applications
Power, petrochemical, environment monitoring, disease control, university and research
Steps
1. Power on and select Measurement mode
2. Set the reference temperature, temperature coefficient or TDS coefficient as required
3. Perform one-click calibration and select the built-in standard solution or custom solution

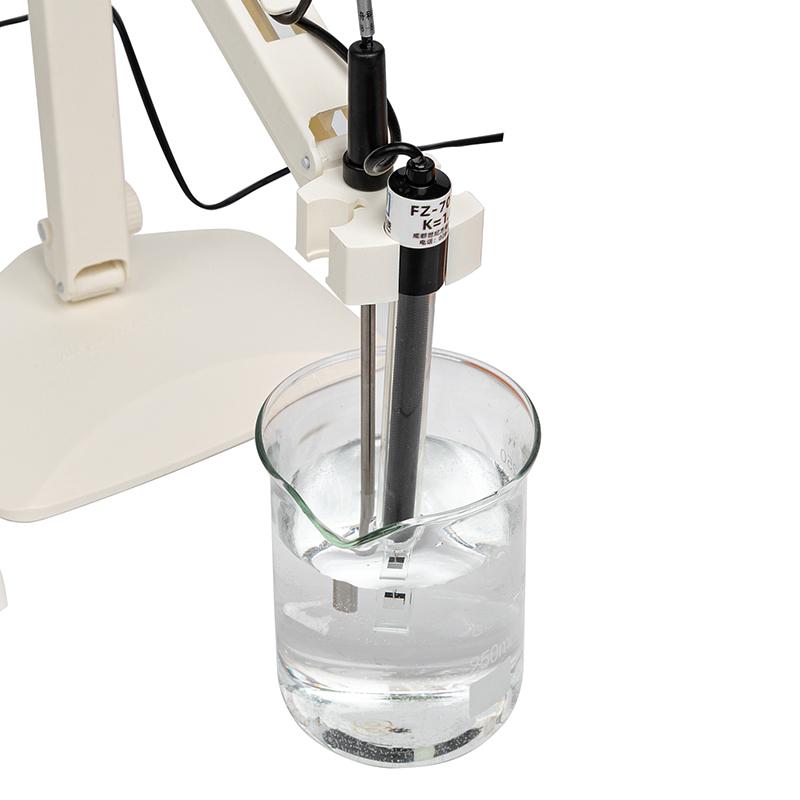

4. Put Electrode into the solution to be tested, and the instrument automatically performs measurement and range conversion
5. View the measurement data on the display
6. You can choose to store data, access historical records, or transfer data to a computer through software protocols
Notice
• Make sure Electrode is clean and intact before use
• Select the correct standard solution for calibration
• Pay attention to the selection of temperature compensation mode when measuring
• Regularly calibrate instruments to ensure Measurement accuracy
When storing data, be sure to comply with GLP specifications
• Avoid use in extreme temperatures or Humidity environments
