Overview

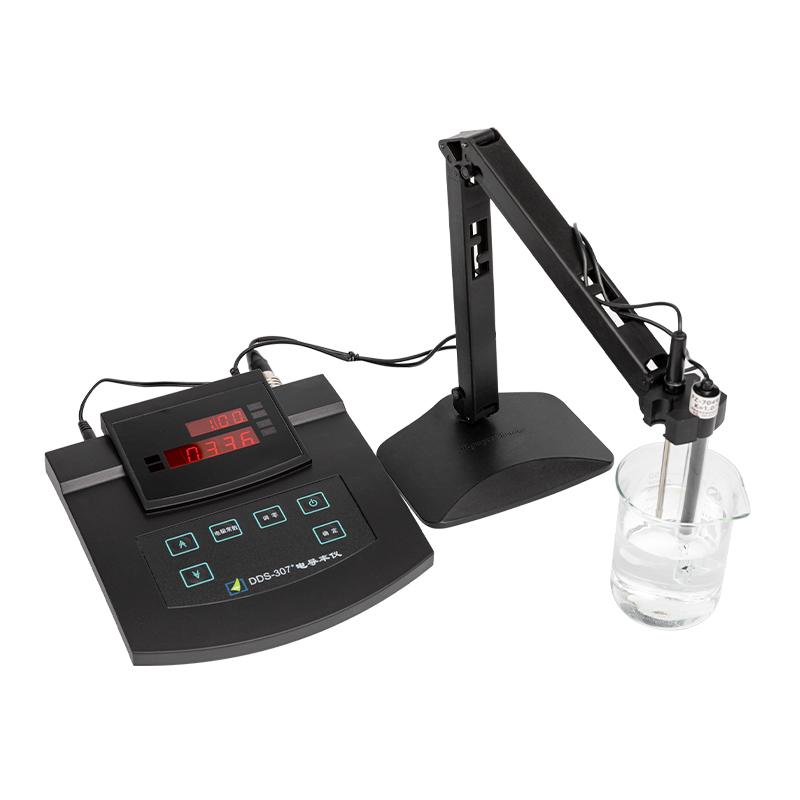

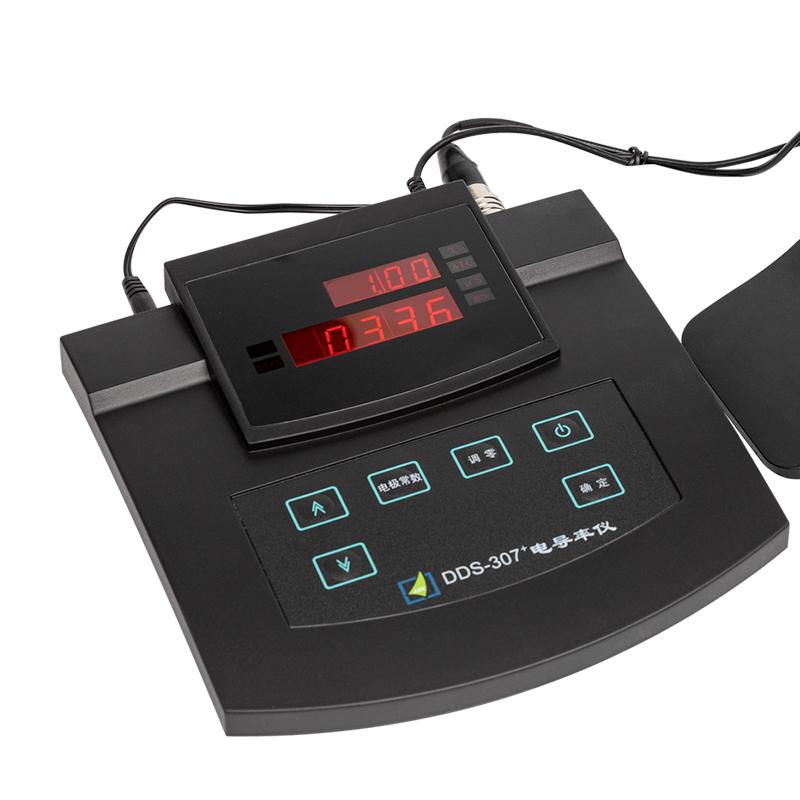

FANGZHOU DDS-307 Economical Conductivity Meter is an instrument with simple operation and programmed design. It adopts anti-corrosion and waterproof design and digital tube display, which can adapt to harsh measurement environments. The key components of the instrument are imported components, and the integrated design has no moving parts. Reliability is high.
Features
1. Microprocessor control, programmed design, membrane buttons
2. Low Voltage Frequency Conversion Design, High Accuracy A/D Conversion, Integrated Design
3. Manual temperature compensation
4. Automatic conversion of seven-speed range
5. Conductivity detector Electrode with matching coefficients of 0.01, 0.1, 1 and 10
6. Instrument anti-corrosion, waterproof, can adapt to harsh measurement environment
Principle
The instrument adopts microprocessor control and realizes conductivity measurement through programmatic design. Low voltage frequency conversion technology and High Accuracy A/D converter are used to ensure measurement accuracy. Integrated design without moving parts, combined with manual temperature compensation function, improves measurement Reliability.
Applications
Simple routine measurement enterprise
Standards
Instrument level: 1.0 level
Steps
1. Conductivity detector Electrode and temperature sensor
2. Power on the instrument
3. Select Conductivity detector Electrode coefficient (0.01, 0.1, 1 or 10) as needed
4. Manually set the temperature compensation value
5. Perform measurement, the instrument automatically converts the range
6. Read the conductivity and temperature data displayed by the digital tube
Notice
Instruments for simple conventional measurement environments
• Make sure that the Electrode and Temperature interfaces are connected correctly
• Manual temperature compensation needs to be set according to the actual environment
• Avoid use in environments beyond the specification parameters
• Regularly check the anti-corrosion and waterproof performance of the instrument
