Overview

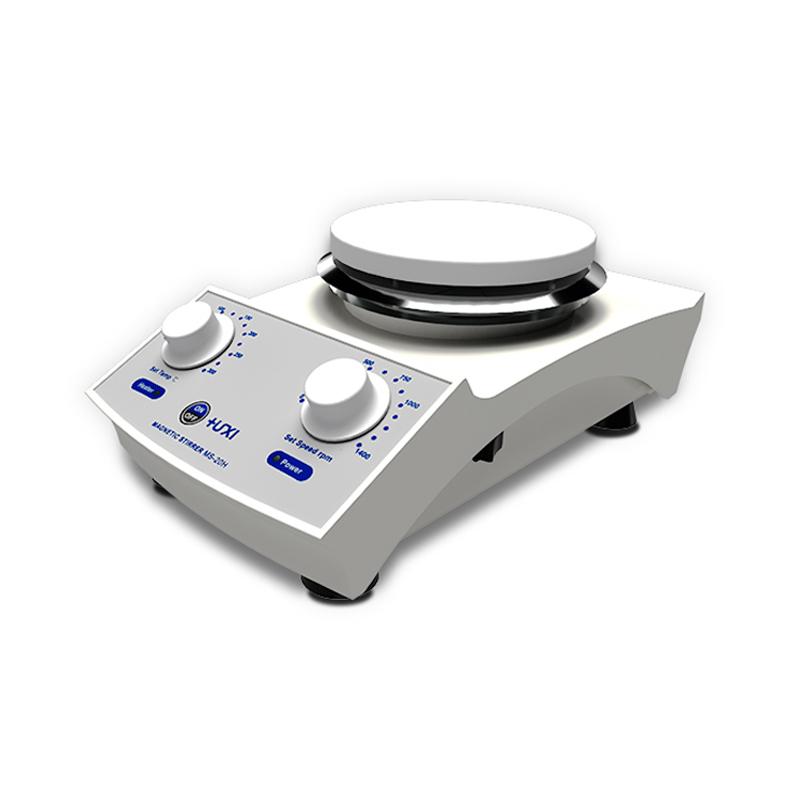

HUXI HMS-205 Magnetic Stirrer is a heated Magnetic Stirrer for liquids or solid-liquid mixtures with low viscosity. This product is mainly used in chemical synthesis, analytical chemistry and life sciences.
Features
1. LCD display, real-time display of heating, stirring and time parameters (limited to HMS-20D series)
2. LCD Display screen with backlight design, easy to set and monitor parameters
3. Brushless motor drive, Speed range, longer service life
4. Timing function for easy control of mixing and heating time (limited to HMS-20D series)
5. Run the lock function to prevent accidental changes to the running state
6. Dual heating control circuit, when a heating circuit fails, the temperature can continue to be stable; the heating function is controlled separately, and after the heating is turned on, the button is highlighted for easy operation
7. Press the aluminum sealing heat insulation shell to effectively prevent liquid and gas from entering the instrument and protect the circuit components from corrosion
8. Ceramic coating with strong corrosion resistance for easy cleaning of solvents, oils or Miscellaneous contaminants accidentally dripping from the light disk
Principle
The Magnetic Stirrer generates a swirl/spin magnetic field driven by a brushless motor, so that the stirrer swirl/spin in the container to realize the stirring function. At the same time, the mica sheet Heating mode is used to heat the sample, and the temperature is kept stable through a double heating control loop.
Applications
Chemical synthesis, analytical chemistry, life sciences
Steps
Step 1 Put the mixer into a container
2. Place the container on the work plate
Step 3 Power on
4. Set stirring speed (0~ 2000rpm)
5. If heating is required, set the heating temperature (RT + 5~ 350 ° C).
6. If necessary, set the stirring and heating time (limited to HMS-20D series)
7. Start the device and start working
Notice
• Max. stirring Capacity is 20L, please do not overuse
• Ambient Temperature should be within 5~ 40 ℃
• relative humidity should not exceed 80%
• Power supply voltage 220V 50/60Hz before use
• Note that the overtemperature protection temperature is ≤ 420 ° C
• Please choose the appropriate stirrer size (20 - 80mm) according to your needs.
• Keep the working surface clean and promptly clean up dripping solvents, oils or Miscellaneous contaminants
