Overview

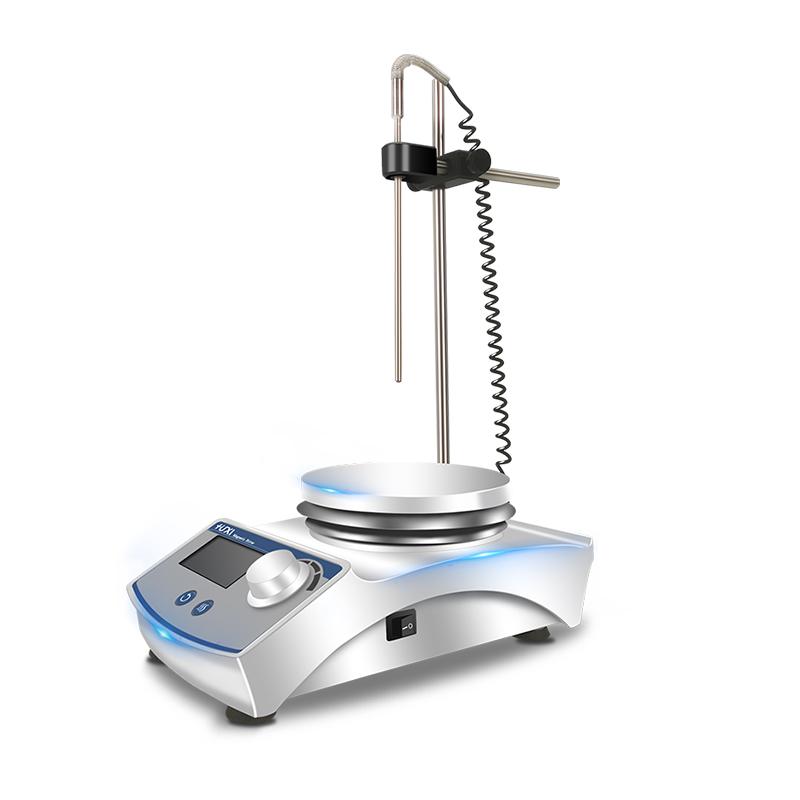

HUXI HMS-205D Magnetic Stirrer is a heated Magnetic Stirrer for liquids or solid-liquid mixtures with low viscosity. The product is mainly used in chemical synthesis, analytical chemistry and life sciences.
Features
1. LCD display, real-time display of heating, stirring and time parameters;
2. LCD Display screen with backlight design, easy to set and monitor parameters;
3. Brushless motor drive, Speed range, longer service life;
4. Timing function makes it easy to control the time of mixing and heating.
5. Run the lock function to prevent accidental changes to the operating state;
6. Dual heating control circuit, when a heating circuit fails, it can continue to maintain temperature stability; the heating function is controlled separately, and after the heating is turned on, the button is highlighted for easy operation;
7. Press the aluminum sealing heat insulation shell to effectively prevent liquid and gas from entering the instrument and protect the circuit components from corrosion;
8. Ceramic coating, with strong corrosion resistance, easy to clean the accidental dripping of solvents, oil or Miscellaneous pollutants on the light disk.
Principle
The Magnetic Stirrer generates a swirl/spin magnetic field driven by a brushless motor, which drives the stirrer to swirl/spin in the container to realize the stirring function. The heating system adopts mica heating mode, which maintains temperature stability through dual heating control loops, and the LCD display monitors various parameters in real time.
Applications
Chemical synthesis, analytical chemistry, life sciences
Steps
1. Turn on the power supply;
2. Put the stirrer into the container;
3. Set stirring speed parameters;
4. Set the heating temperature parameters.
5. Set the timing time parameters;
6. Start the operation;
7. Monitor LCD display parameters.
8. Turn off the power after use.
Notice
• Max. stirring Capacity is 20L, please do not overuse
• Ambient Temperature should be within 5~ 40 ℃
• environment relative humidity should not exceed 80%
• Power supply voltage 220V 50/60HZ before use
• The temperature of the heating plate is high, please pay attention to safety during operation
• Regularly clean the work surface and keep the equipment clean
• If you find any abnormality, please stop using it immediately
