Overview

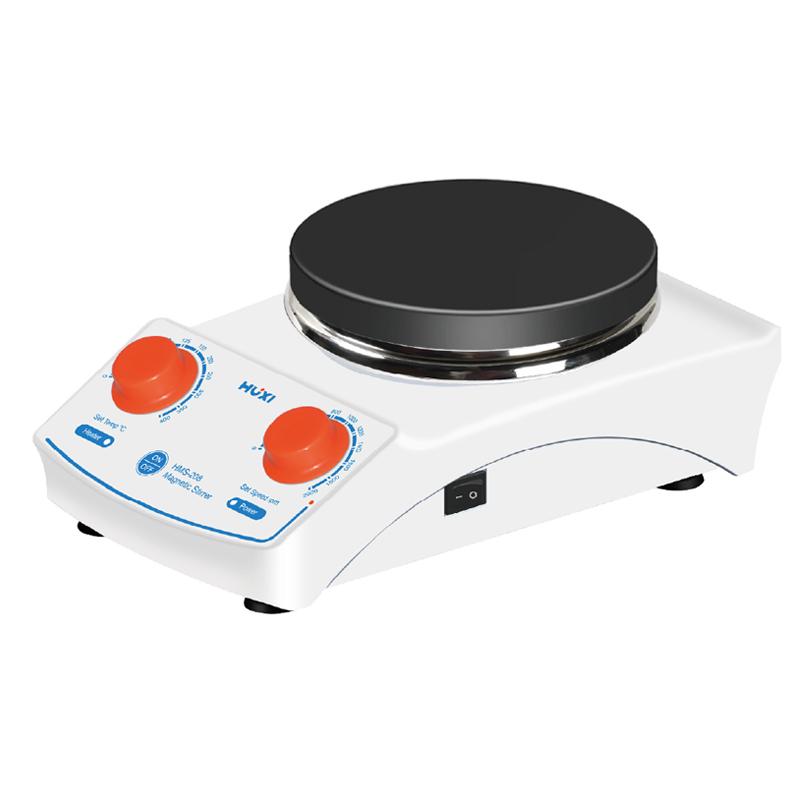

HUXI HMS-208 Magnetic Stirrer is a heated Magnetic Stirrer specially designed for applications with higher requirements for Processing capacity, temperature and Power. This series of products has better performance, stronger functions and a wider range of applications. It is suitable for stirring or heating stirring at the same time, and the viscosity is not very large. Liquid or solid-liquid mixture.
Features
1. Aluminum die casting ceramic coating work plate abrasion resistance, corrosion resistance, high temperature oxidation resistance
2. Wide Temperature range, the highest temperature can reach 400 ℃, the heating function is controlled separately, and the button is highlighted after the heating is turned on
3. Internal and external temperature sensor PT1000, can precisely control the temperature accuracy to +/- 0.2 ℃
4. Adopt LCD liquid crystal display with backlight design, which is convenient for setting and monitoring data during operation
5. LCD display real-time display of temperature, Rotation speed and running time, clearly visible
6. With time setting function, it can be set to 0~ 99h59min, making the experimental operation more convenient
7. DC brushless motor, low noise, low maintenance, smooth operation, long service life
8. Dual heating control circuit, which can continue to maintain temperature stability when one heating circuit fails
9. The knob has the function of running lock and preventing misoperation to prevent accidental changes in the running state and improve the safety of the experiment
10. Pressed aluminum sealing insulation shell effectively prevents liquid and gas from entering the inside of the instrument and protects circuit components from corrosion
11. Optional a variety of heating modules, including 1/4 round alloy heating module, round bottom flask alloy heating module, screw bottle heating adapter module, flask adapter heating module and three flask adapter heating module
Principle
Magnetic Stirrer drives the magnetic rotor swirl/spin through a DC brushless motor to generate a swirl/spin magnetic field, which makes the stirrer swirl/spin synchronously in the container to achieve liquid stirring. The heating system heats the working plate through a heating tube, and cooperates with the internal and external temperature sensors PT1000 to precisely control the temperature. Dual heating control loops ensure stable temperature.
Applications
Laboratory agitation, heating agitation, liquid mixing, solid-liquid mixture treatment, parallel reaction experiment
Steps
1. Turn on the power supply and turn on the device switch
2. Set the stirring speed as needed (0~ 2000rpm)
3. If heating is required, set the target temperature (RT + 5~ 400 ° C) and turn on the heating function
4. If timing is required, set the running time (0~ 99h59min)
5. Place the container with the stirrer on the working plate
6. Start stirring and observe the LCD display to monitor the running status
7. Turn off the device and disconnect the power after use
Notice
• Do not use under conditions exceeding the Permissible Ambient Temperature (5~ 40 ° C) and relative humidity (80%)
• Make sure the surface of the working plate is clean and drying when using
• The applicable range of the stirrer is 20-80mm, please choose the appropriate stirrer
• Pay attention to prevent burns when heating, the maximum temperature can reach 400 ° C
• Regularly check whether the Appearance and function of the equipment are normal
Do not move or tilt the device while it is running
• In case of abnormal situation, immediately turn off the power and contact a professional for maintenance
