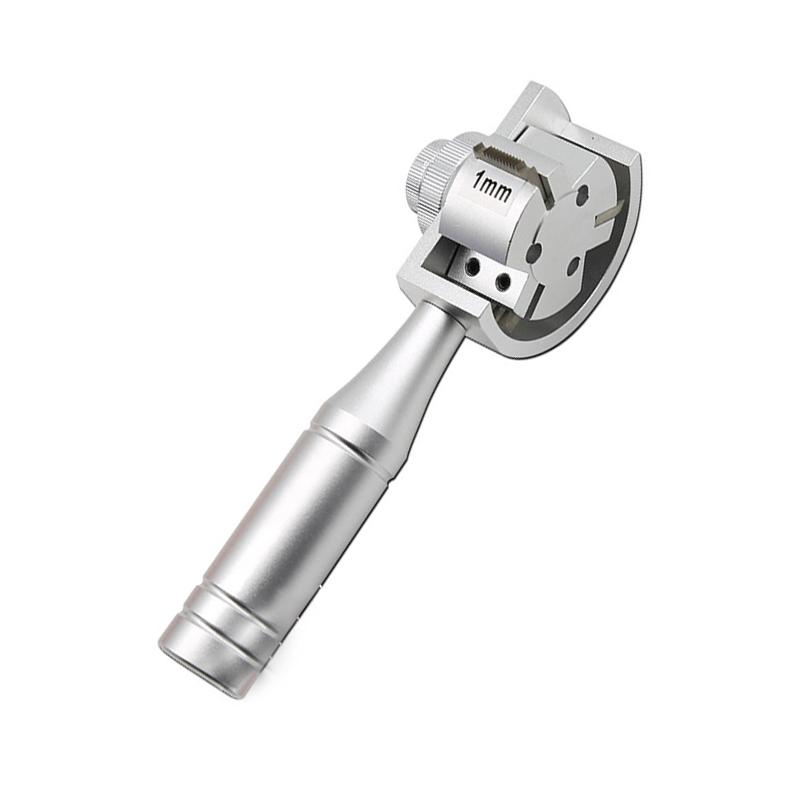

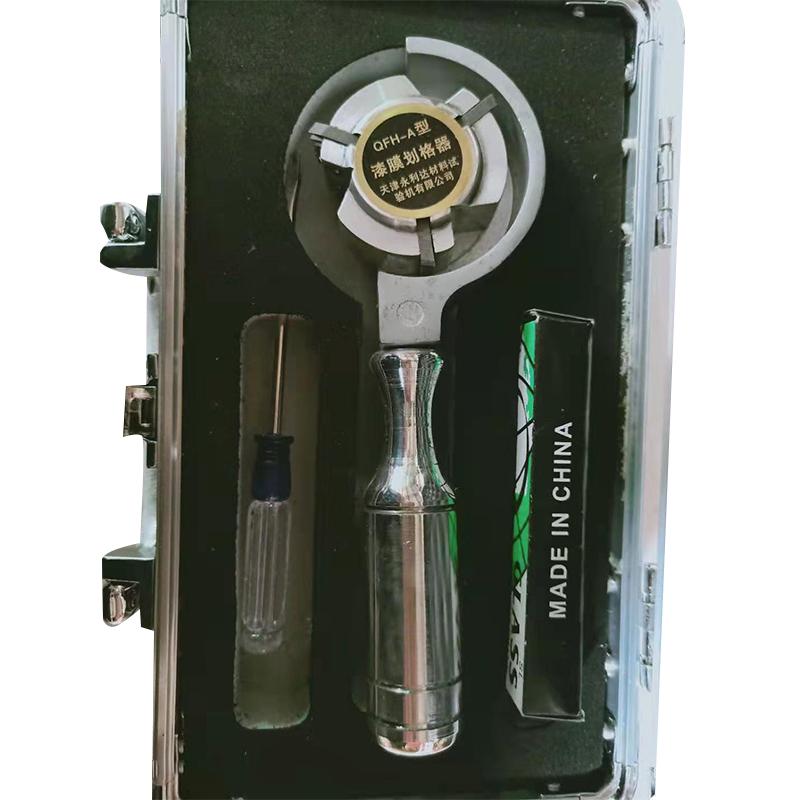

YONGLIDA QFH-A Cross-cut adhesion Tester, film Adhesion Tester swirling/spinning cutter head

Name: YONGLIDA QFH-A Cross-cut adhesion Tester, film Adhesion Tester swirling/spinning cutter head
Brand: YongLiDa
SKU: NB003567
Price: 181.0 USD
Availability: InStock

$ 181.00Ex works

Equipped with three swirl/spin cutter heads, the tooth spacing is 1mm, 2mm and 3mm respectively, and it is designed according to ISO2409 standard for accurate evaluation of coating adhesion performance.

Model

QFH-A

Get Quote

Category : Paint Film Cross-Cut Cutter

Brand : YongLiDa

SKU : NB003567

Service :The delivery and service By NBCLab.Com

Overview

YONGLIDA QFH-A cross-cut adhesion tester is a cross-cut Adhesion Tester for testing paint film adhesion. It is equipped with three swirl/spin cutter heads with a pitch of 1mm, 2mm, and 3mm. The instrument is designed according to the standard ISO2409 and is suitable for GB/T9286 standards.

Features

1. Equipped with three swirling/spinning cutter heads 2. The knife tooth spacing is 1mm, 2mm, 3mm respectively 3. The number of teeth is 6 teeth

Principle

The swirl/spin cutter head is used to draw a grid pattern on the surface of the paint film, and the adhesion performance of the paint film is evaluated according to the integrity of the grid.

Applications

Film adhesion testing

Standards

ISO2409、GB/T9286

Notice

• Please check whether the knife head is in good condition before use • Keep the test surface flat during operation • The cutter head should be cleaned in time after the test • Please operate in accordance with relevant standards

knife head
Standard 1mm, 2mm, 3mm three swirling/spinning cutter heads
Number of teeth
6 teeth
application standard
ISO2409、GB/T9286

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
