Overview

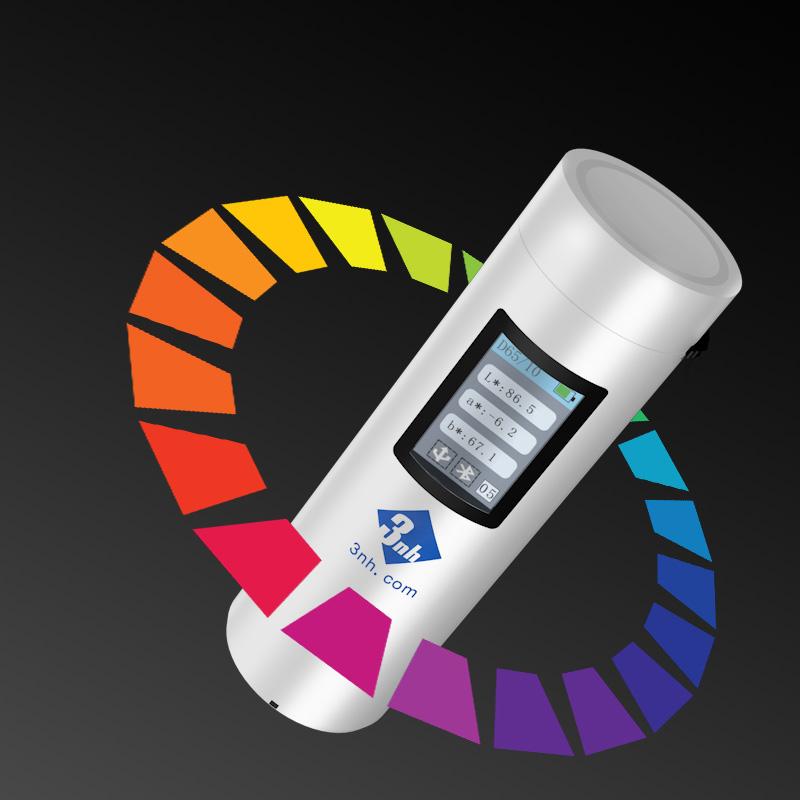

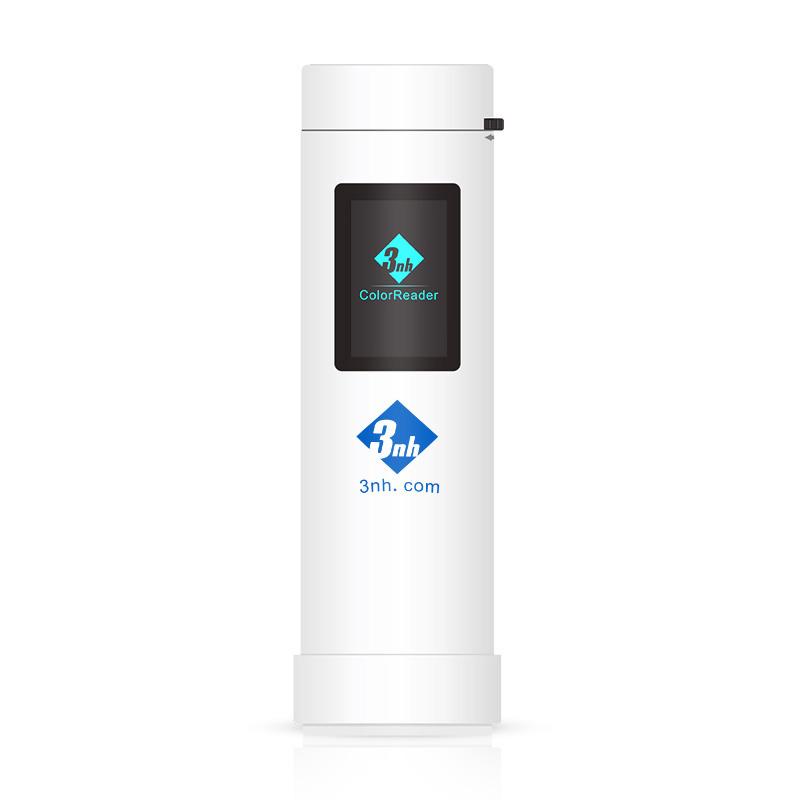

ColorReader color difference treasure CR1 is a product developed by 3nh brand using a combination of professional color Sensor and rich performance APP applications. It integrates the functions of miniature color difference meter and mobile phone color difference treasure. It is equipped with multi-function "smart button" and non-contact automatic whiteboard verification. It is small and portable. It is often used in color difference quality control in plastic electronics, paints coatings, Spinning & weaving clothing printing and dyeing, ceramics and other industries. You can identify and find Color Chart through the mobile app to capture color inspiration anytime, anywhere.
Features
1. Instant and accurate color measurement: Repeatability less than or equal to 0.08, display accuracy 0.01, tap to provide accurate measurement.
2. Non-contact Automatic calibration: Adopt professional non-contact automatic black and white board calibration technology to avoid dirty transmission and ensure the long-term accuracy of the whiteboard.

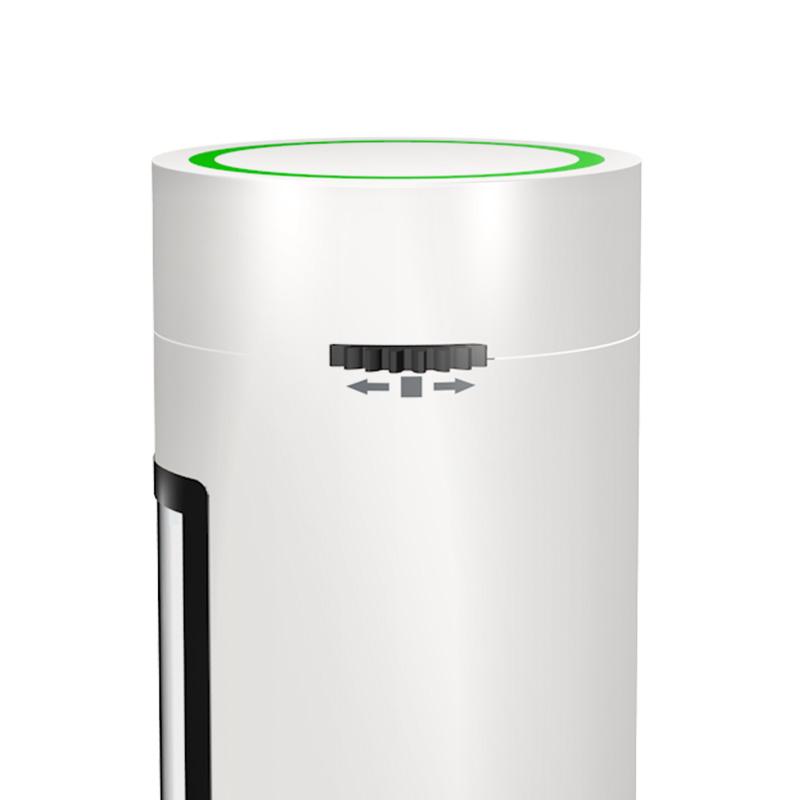

3. Multi-function "smart button": It can independently complete measurement settings or data review, without connecting a mobile phone or computer, and realize all functions in a single machine.
4. Professional Integrating Sphere Dual Light Path Design: Advanced Integrating Sphere Coatings, Dual Light Path Sensors and Full Light spectrum Illuminants are used to ensure measurement Stability and accuracy.
5. Lightweight and portable: easily fit in your pocket and carry it around.
6. Rechargeable lithium battery: Type-c interface, which can be continuously tested 12,000 times on a single charge.
7. Higher quality: using industrial-grade real-time processing MCU, Bluetooth 5.0 interface transmission is stable and reliable.
8. Diversification of data display modes: cooperate with APP to display sample chromatic value, color difference value/graph, qualified/unqualified results, Color simulation, Color bias, reflectance and other data to improve work efficiency.
9. Portable massive Color Chart database: APP synchronizes mass storage, quickly searches, analyzes and compares color data, establishes a private color database in the cloud, and finds the closest Color anytime, anywhere.
Principle
Color difference treasure CR1 adopts 8 °/d illumination mode and integrating sphere design, combines full Light spectrum LED Illuminant and filter spectroscopy technology, and conducts measurement in the 400~ 700nm Wavelength range through CMOS dual-path sensor. The measurement diameter is φ 8mm, using SCI light-containing mode, based on CIE LAB and LCh Color space, and uses Delta E * ab Color difference formula for calculation to ensure the accuracy and Stability of color data.
Applications
Plastic electronics, paints, Spinning & weaving garment printing and dyeing, ceramics
Steps
1. Turn on the power supply of the instrument to ensure that the battery is fully charged.

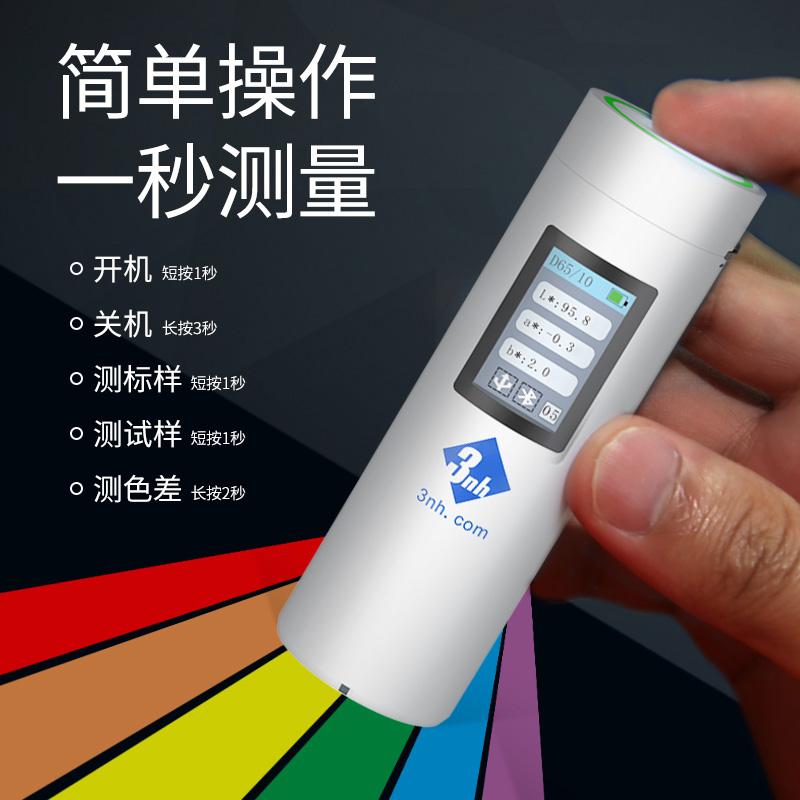

2. Use the multi-function "smart button" for measurement setting or single measurement.
3. Align the measurement diameter with the sample and press the button to complete the color measurement.

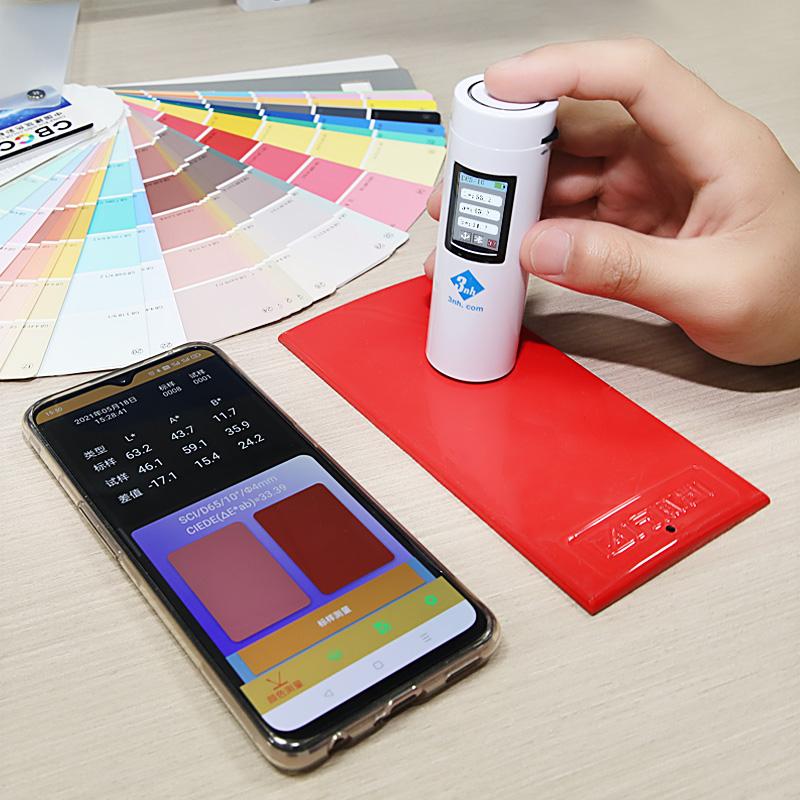

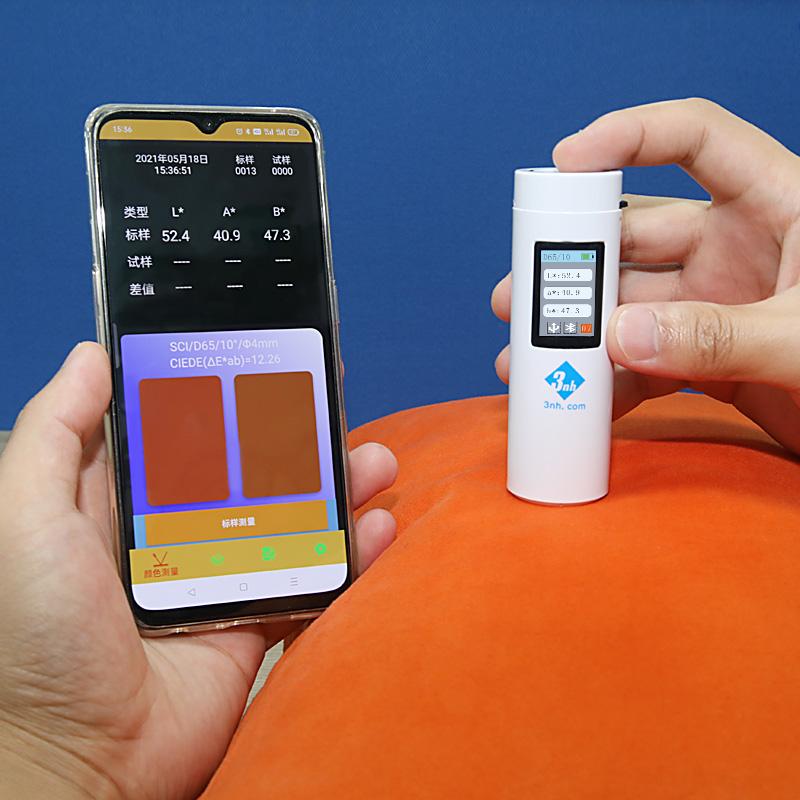

4. Connect the mobile app or computer software to view measurement data such as chromatic value, color difference value, pass/fail result, etc.
5. Perform data search, analysis and comparison or find Color Charts through the APP.
6. Use non-contact automatic whiteboard calibration function to ensure measurement accuracy.
Notice
• Operating ambient temperature range is 0~ 40 ℃, relative humidity 0~ 85% (no condensation).
Storage ambient temperature range is -20~ 50 ℃, relative humidity 0~ 85% (no condensation).
• Altitude usage limit is less than 2000m.
• The instrument has no measurement data review function and needs to be realized through the mobile app.
• Periodic non-contact automatic whiteboard calibration to maintain Measurement accuracy.
• Avoid use in extreme environment conditions to prevent affecting instrument performance.
