Overview

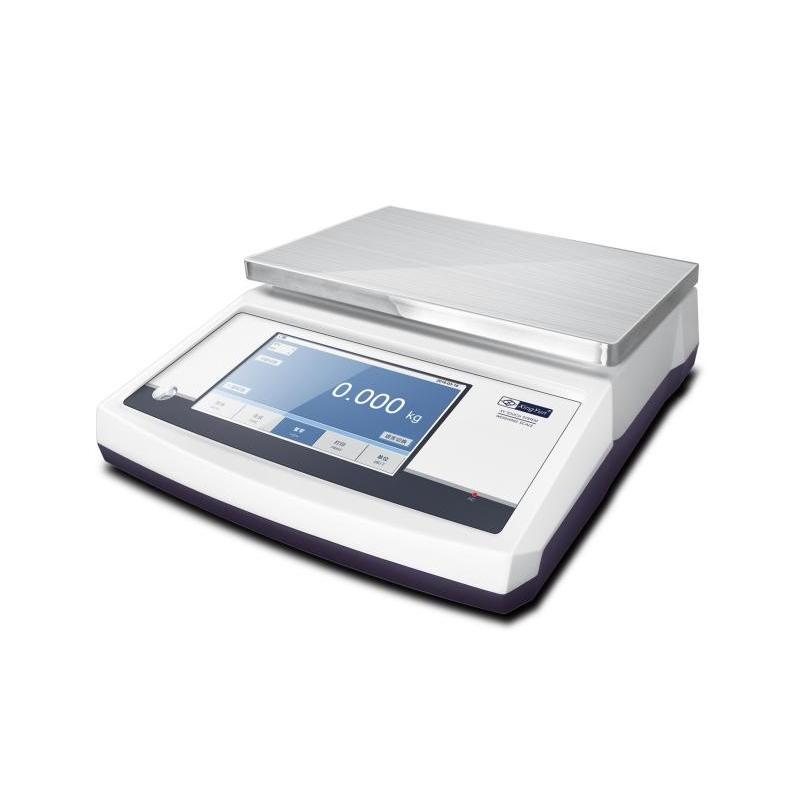

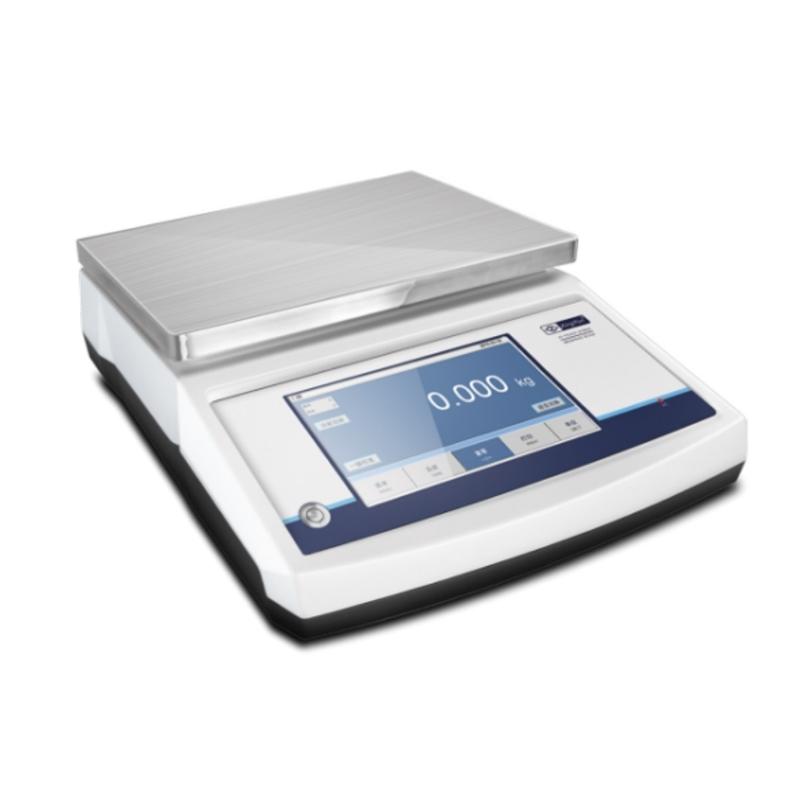

XINGYUN XY5MTC Electronic Balance is a High Accuracy weighing device with a maximum range of 5000g and an accuracy of 0.01g. It adopts a 7-inch high definition touch display screen and is equipped with a large stainless steel pan. It supports AC and DC dual-use power supply.
Features
1. Appearance design and utility model patent protection
2. High Accuracy Weighing
3. Stainless steel large size pan
4. AC and DC dual-use power supply
5. Adjustable date and time
6. Full scale peeling and counting function
7. Check weight, percentage, density measurement
8. Net gross weight display and summation function
9. Unit conversion: grams, carats, ounces
10. Overload alarm function
11. Connect PC and thermal printer
12. Optional sticker printer
13. Extended function: hanging weighing, external display
14. U disk import and export data
15.10KG with internal calibration function
Principle
Strain Gauge Sensor technology is used to detect weight changes through High Accuracy Sensor, and a fully automatic time trigger calibrating system is used to ensure the accuracy and Stability of weighing data.
Applications
Laboratory Weighing, Industrial Measurement, Jewelry Weighing, Drug Weighing, Food Testing, Chemical Raw Materials Weighing, Education and Research
Standards
Appearance patent: ZL201730107146.0, utility model patent: ZL201720338930.7
Steps
1. Turn on the power supply or use the battery power supply.
2. Wait for the system start-up to complete
3. Place the item to be weighed in the pan
4. Select the desired weighing mode (count, check, percentage, density, etc.)
5. Read the weighing results on the display
6. Perform peeling, unit conversion and other operations as needed
7. Data can be exported through the USB interface or output results can be connected to a printer
Notice
* Operating Environment Temperature should be kept within 5-25 ℃
* Avoid Capacity 5000g to prevent overload damage
Periodically calibrated internally to ensure accuracy
* Make sure the pan is clean and free of debris before use
* It is recommended to disconnect the power supply when not in use for a long time
* Batteries need to be charged and maintained regularly
* Avoid use in strong electromagnetic interference environments
