Overview

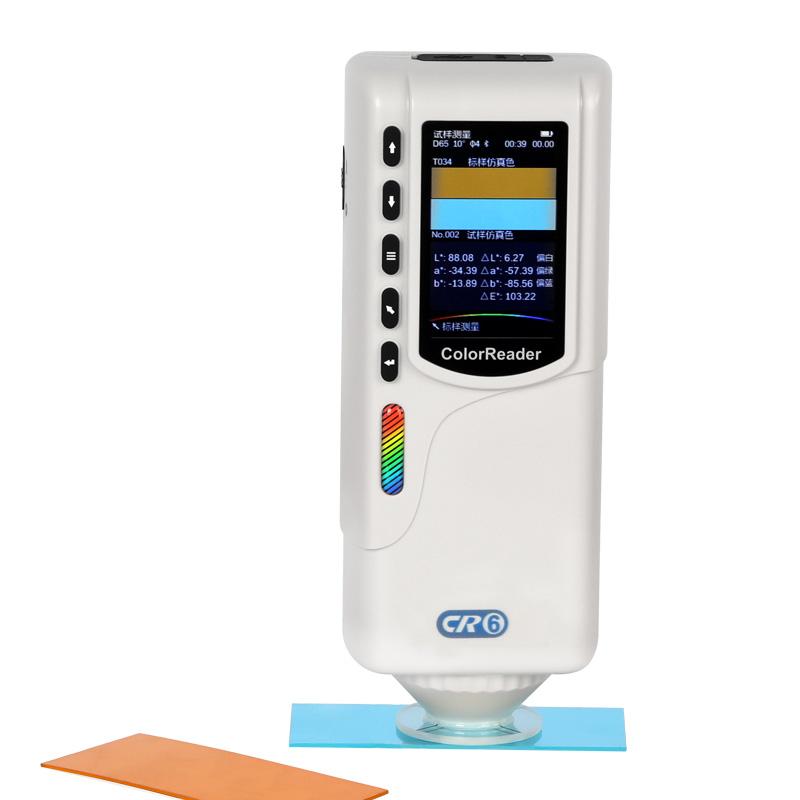

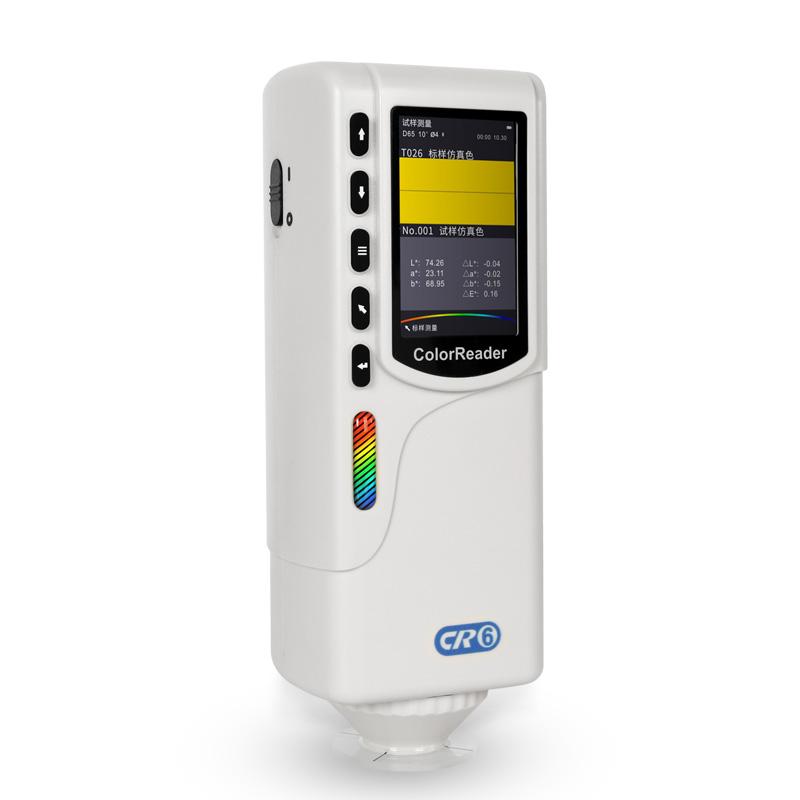

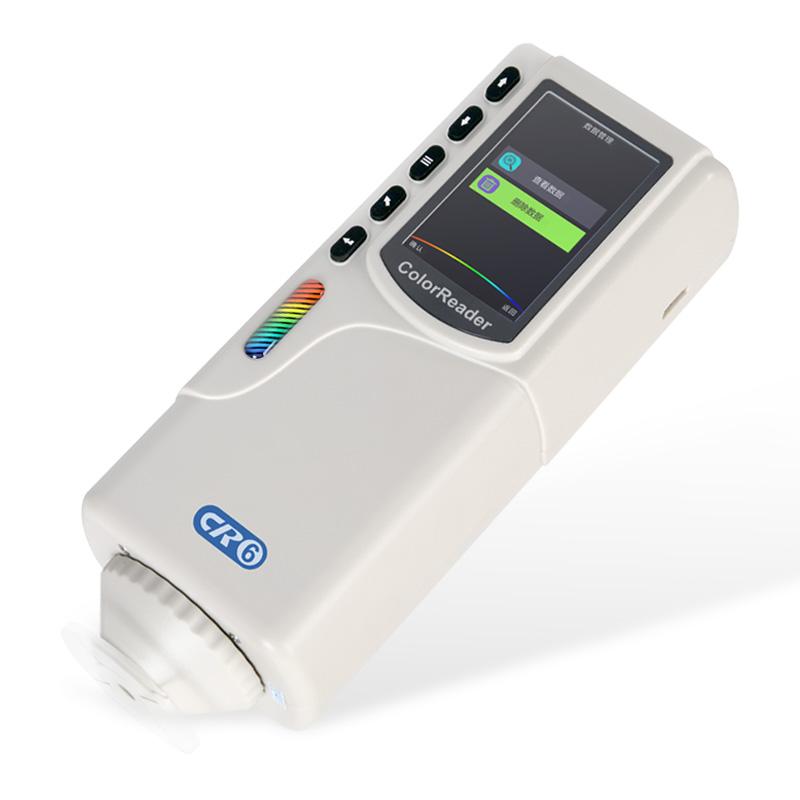

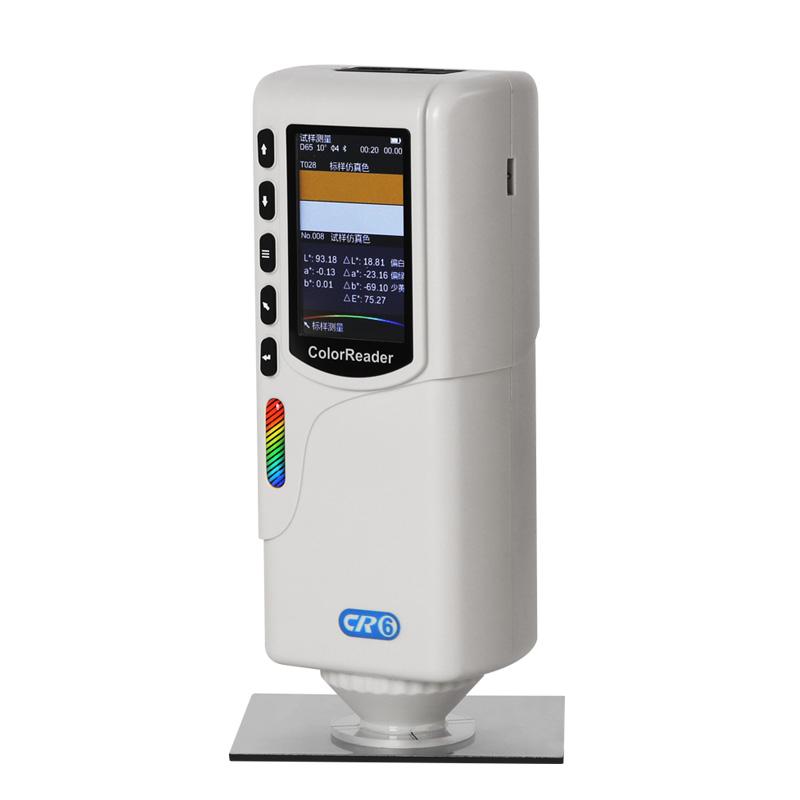

Color difference CR6 (Industrial Premium Edition) is an innovative color measurement tool from the 3nh brand that integrates color recognition, reading, Color Chart retrieval and color difference evaluation. It uses a portable design, seamlessly connects to mobile devices via Bluetooth, combines large-screen display and real-color synchronization simulation, and is suitable for a variety of industrial application scenarios.
Features
1. The instrument itself has a data search function
2. Automatic calibration, equipped with black and white manual calibration function
3. The miniature whiteboard is designed separately from the instrument to ensure the weathering resistance and wiping of the whiteboard
4. Equipped with Fastening Dust Cover and Environmental Encasement Bag, Portable and Safe
5. Long battery life, USB charging, support thousands of measurements
6. Both the instrument and the mobile phone display screen have true color synchronous Color simulation function
7. Color parameter measurement and Color difference formula, support tolerance setting and sound alarm
8. Create a personal color database in the cloud and retrieve Color Charts anytime, anywhere
9. Connect the mobile app for popular color search and automatic matching
10. The Inter-instrument Agreement between the same series of products is small, and Color database sharing is supported
Principle
Color difference CR6 uses 8 °/d illumination and integrating sphere structure. It uses full-light spectrum LED Illuminant and filter spectroscopy technology to capture Light spectrum data in the 400~ 700nm Wavelength range through CMOS sensors. It combines SCI light-containing method, measurement Color space such as CIE LAB, etc., and calculates color difference and chroma indicators to achieve accurate color analysis and evaluation.
Applications
Industrial color measurement, quality control, Color Chart retrieval, popular color analysis, Color database management
Standards
CIE No.15、GB/T 3978
Steps
1. Automatic calibration or manual calibration
2. Connect the mobile app via Bluetooth
3. Measurement mode and parameter selection
4. Measured objects and single or average measurements
5. View chromatic values, color difference results and pass/fail cues
6. Use the data search function or the cloud database to retrieve Color
Notice
Manual calibration is recommended from time to time to ensure instrument accuracy
- Avoid use in condensation or outside the operating environment
- Keep the environment drying during storage to prevent whiteboard contamination
- Charge with USB port to ensure Battery life
- Pay attention to light spot positioning during measurement to avoid external rays of light interference
